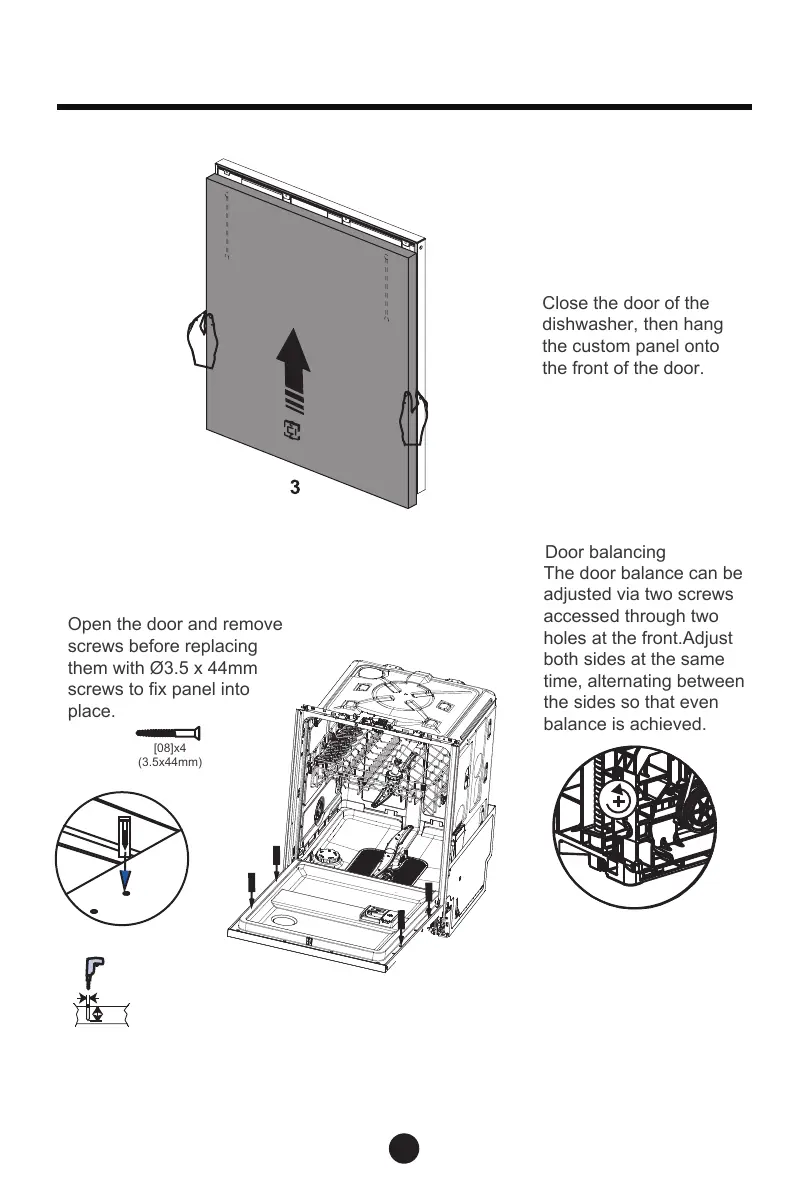

Door balancing
IMPORTANT!
5
4
The door balance can be
adjusted via two screws
accessed through two
holes at the front.Adjust
both sides at the same
time, alternating between
the sides so that even
balance is achieved.
Open the door and remove
screws before replacing
them with Ø3.5 x 44mm
screws to fix panel into
place.
Close the door of the
dishwasher, then hang
the custom panel onto
the front of the door.
Clockwise rotation: Spring tension
Counterclockwise rotation: Spring relaxation
Rotate the screws to
adjust until the door
is just open under its
own weight.
12
[08]x4
(3.5x44mm)
12mm
2mm
Installation instructions
