EN
7

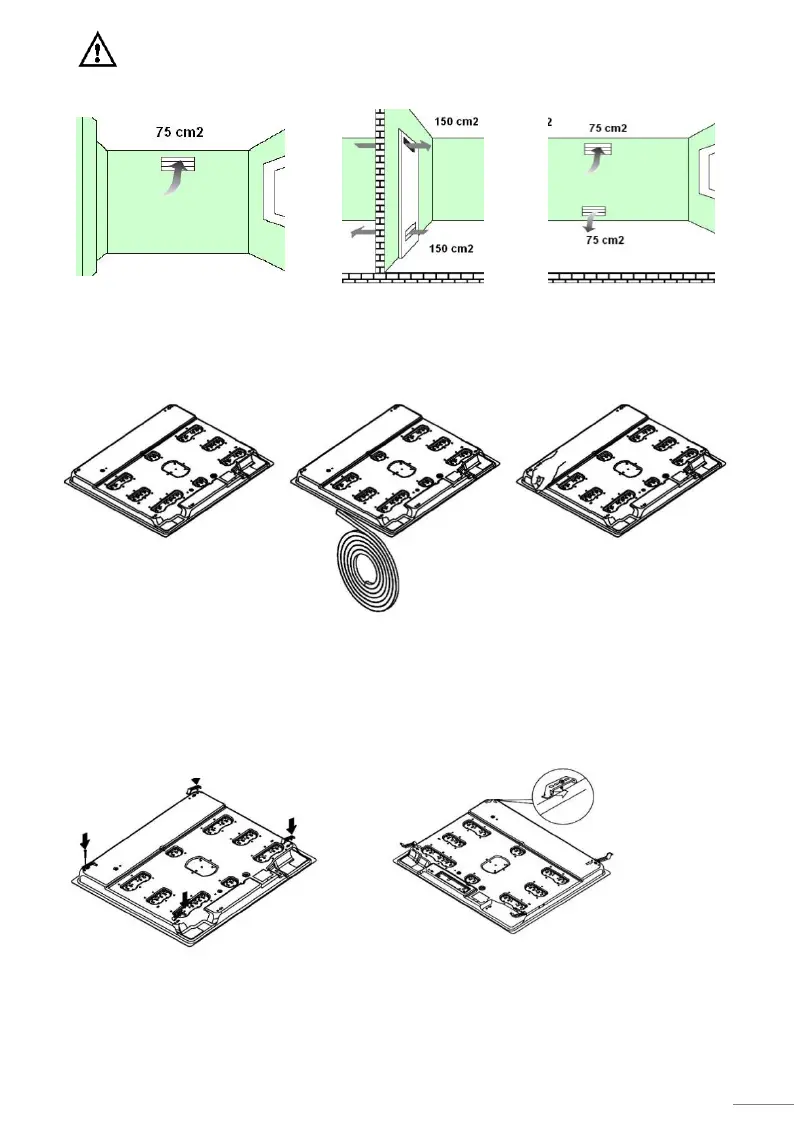

Air vent should be near the kitchen floor and minimum75cm²,
opening to the outer atmosphere
2.2. Installation and connections
2.2.1. Preparation of the built-it range prior to installation
Place the mounting
legs as shown in the
figure.
Figure 4
Turn upside down
range in the
Styrofoam in the
package and apply
the silicon.
In case of inox products, apply
the silicon on inox surface,
and in case of glass range
products apply to the glass
surface.
Apply the silicon
supplied in the
package around the
range as shown in the
figure.
Mounting legs
connection holes.
Figure 5
Figure 1
Figure 2
Figure 3
Figure 4
