2222
Flame
faulty in
primary air
Flame
correct
Flame
with excess
primary air
long, yellow
and
trembling
clear
interior blue
cone
short and
sharp too
blue interior
cone tending
to detach
CAUSE
air regulating
tube, too
closed
correct
distance of
the tube
air regulating
tube, too
open
ADJUSTMENT OF THE OVEN BURNER MINIMUM
In the minimum position the ame must have a length of about 4 mm and must remain lit
even with a brusque passage from the maximum position to that of minimum.
The ame adjustment is done in the following way:
• Remove the control panel (g. 2.8). To do that, rstly remove the control knobs and
then unscrew the no.2 xing screws (arrows “1”). Release the control panel from the
oven (it is mechanically anchored at the top) as indicated by the arrows in g. 2.8.
Pay special care to avoid any damages to the control panel and to prevent injuries to
yourself.
• Remount the knob and turn on the oven burner by setting the thermostat knob on
maximum position (“10” or “240” or
Max
).
• Remove the knob and unscrew the by-pass screw “G” (g. 2.7) about three times by
using a small at screwdriver.
• Remount the knob and let the oven heat up for about 15 minutes, then bring the knob
to the minimum position (“1” or “130”) to operate the thermostat by-pass.
• After having removed the knob again and being very careful not to turn the thermostat
rod, slowly screw the by-pass screws “G” (g. 2.7) until you obtain a ame of 3-4 mm
in height.
• After having completed the regulation, ret the control panel and knobs correctly in
place operating in reverse order (g. 2.8).
N.B. For G30/G31 (LPG) the by-pass screw must be xed thoroughly.

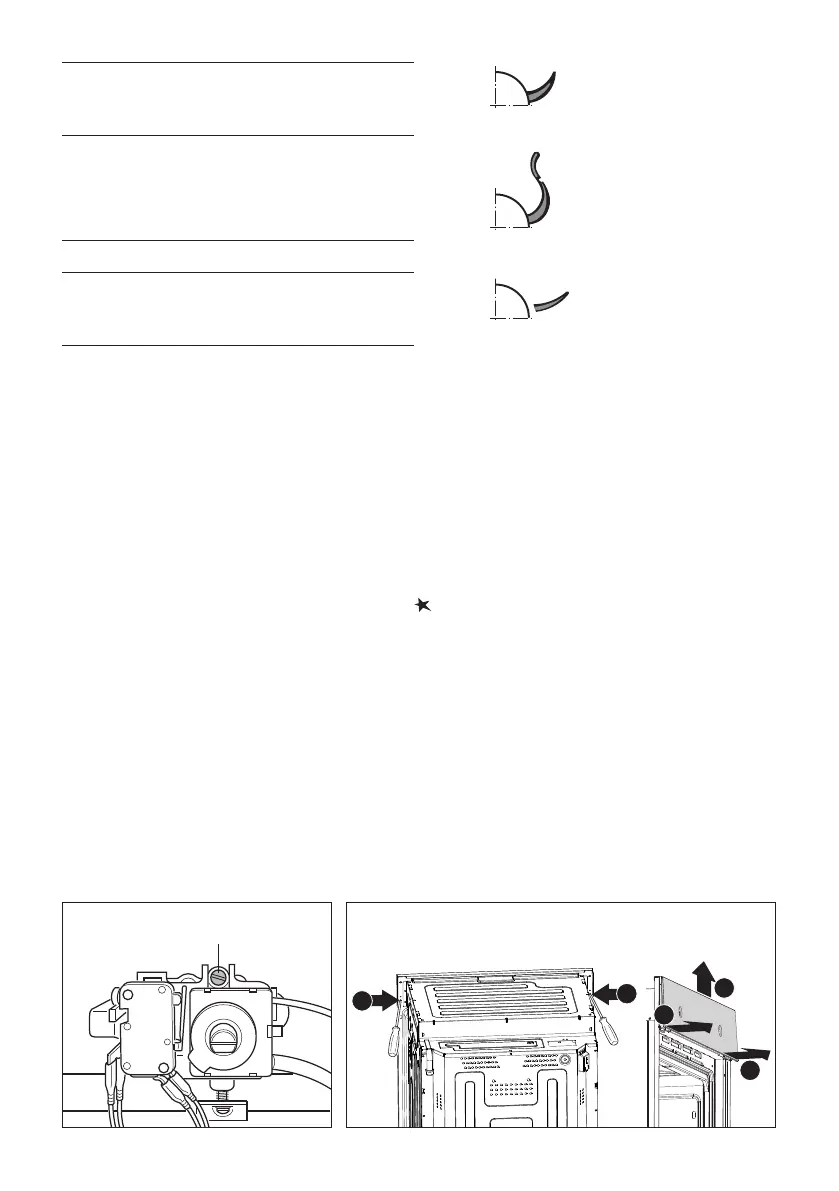

Fig. 2.7
G
2
2
3
1
1
Fig. 2.8
Flame correct
Flame faulty in
primary air
Flame with excess
primary air
