GRILL BURNER
• Unscrew and remove the burner securing screw “A” (g. 2.5a).
• Withdraw the burner as shown in gure 2.5b. Take care not to damage the safety valve
probe and the electric ignition electrode.
• Using a 7 mm box spanner, unscrew the injector (indicated by the arrow in g. 2.5b)
and replace it with a new one selected in accordance with the “Table for the choice of
the injectors”.
• Regulate the air supply to the grill burner as indicated in the section “REGULATION OF
AIR SUPPLY TO OVEN AND GRILL BURNERS”; then replace the burner repeating
the above steps in reverse order.
IMPORTANT: Check the correct operation of the safety valve and the electric
ignition.

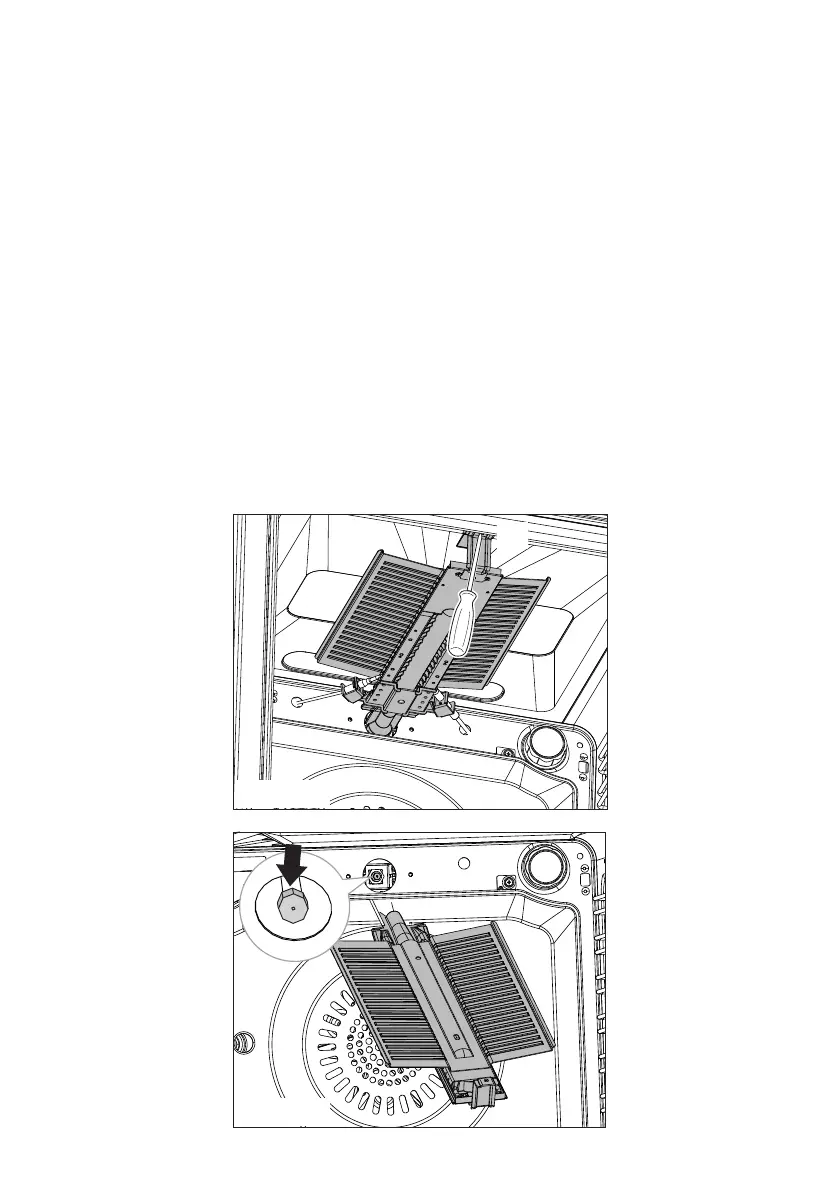

Fig. 2.5a
Fig. 2.5b
A
