ROOF CURB
(BY OTHERS)
DUCT SUPPORT (IF REQUIRED)
(BY OTHERS)
DUCT SECTION (IF REQUIRED)
(BY OTHERS)
FIGURE 6
SIS/SIG SERIES
SIDE INTAKE SUPPLY UNIT / SIDE INTAKE GALVANIZED SUPPLY UNIT
SIS_SIG-M-07_20_16 Page 4 of 5
1. Inspect and tighten all bearing collar and wheel set screws after the first 50 to 100 hours of operation and periodically thereafter.
2. Follow motor manufacturer's instructions for motor lubrication. Remove any excess lubrication.
3. Check the drives.
a. Tighten set screws on pulleys, wheel and bearing locking collars.
b. Check belt tension and alignment.
c. Replace cracked or worn belts.
4. Blower bearings are permanently lubricated and require no further lubrication.
5. Inspect V-belts for wear and proper tension. If it is necessary to replace one belt on a multiple belt drive, replace all the belts with
a matched set. Do not use belt dressing.
1. Complete the electrical connections, energize the unit momentarily and ensure proper wheel rotation. (see Figure 5).
2. Apply full power.
3. With all ducts attached, the access doors in place and the air system in full operation, measure the motor current and ensure that it is
less than the rated full load motor amperage as indicated on the motor nameplate.
OPERATION
WARNING
ENSURE POWER SUPPLY IS DISCONNECTED & LOCKED OUT PRIOR TO MAKING ELECTRICAL CONNECTIONS.
MAINTENANCE
ELECTRICAL
WARNING
ENSURE POWER SUPPLY IS DISCONNECTED & LOCKED OUT PRIOR TO MAKING ELECTRICAL CONNECTIONS.
WARNING
A GROUND WIRE MUST BE CONNECTED FROM THE MOTOR HOUSING TO A SUITABLE ELECTRICAL GROUND.
Before connecting the motor to the electrical supply, check the electrical characteristics and wiring instructions as indicated on the
motor nameplate or inside the conduit box cover to ensure proper voltage and phase. Complete electrical connections as indicated.

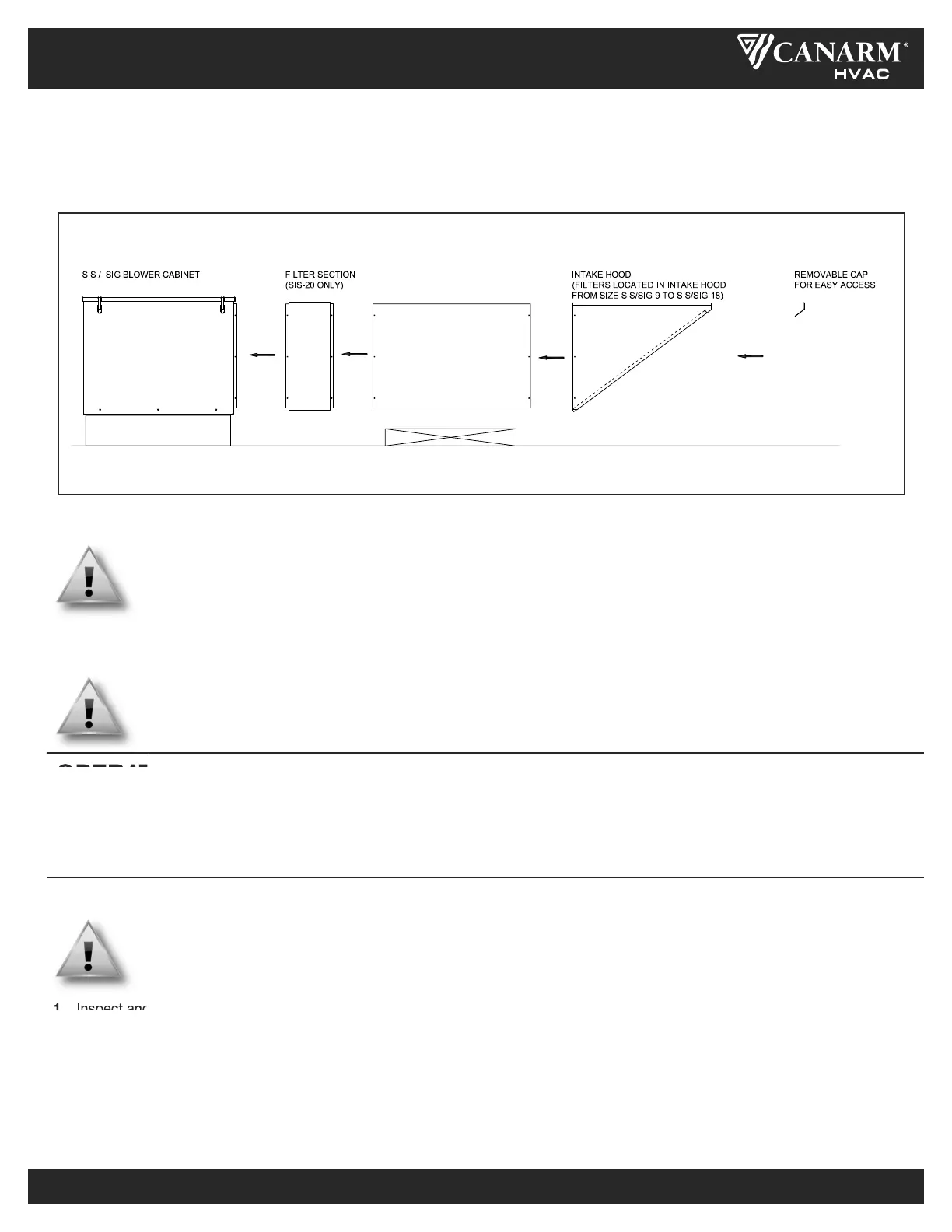

FILTER INSTALLATION
(Models SIS-20)
As shown in Figure 6, attach filter to SIS inlet flange. Drill 1/8” diameter holes through SIS inlet flange using clearance holes on SIS filter
section flange as a guide and secure using the provided sheet metal screws. For duct extension and hood installation, follow instructions
for other models on previous page.
