C SERIES
CEILING EXHAUST FAN
M-C50 11/24

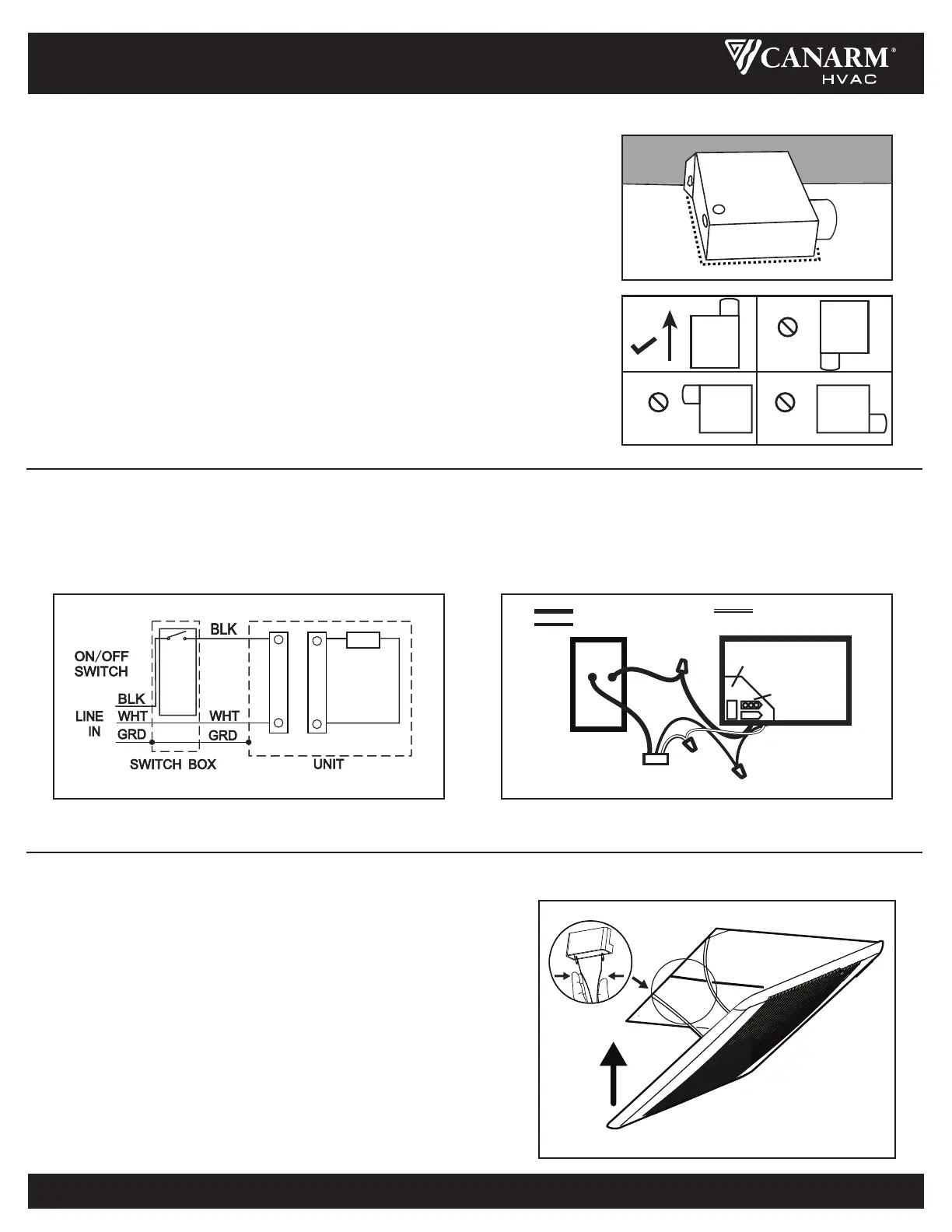

MOUNT DIRECTLY TO JOIST OR I-JOIST
Place the housing assembly in the opening so the bottom edge is flush with the finished
ceiling. Nail the housing assembly to the joist using nails.
POSITION THE HOUSING ASSEMBLY
Position the housing assembly against the joist. With a pencil, trace an outline of the
housing assembly onto the ceiling. Set the housing aside, and cut out an opening for
the fan.
IMPORTANT:
The product can be installed on the wall. When the product is installed on the wall, the
adaptor shall be faced upward.
ASSEMBLY INSTRUCTIONS
Run 120 V AC house wiring to the location of the fan. Use only UL-approved connectors (not included) to attach the house wiring to the
wiring plate. Refer to the wiring diagram, and connect the wires as shown.
ELECTRICAL WIRING CONNECTION
To attach the grille assembly to the fan housing. Pinch the grille springs
on the sides of the grille assembly, and position the grille into the
housing with the grille springs in the appropriate slots. Push the grille
assembly towards the ceiling to secure.
GRILLE INSTALLATION
UNIT
BLACK (BLK)
SWITCH BOX
FAN
POWER SUPPLY
120V AC
GROUND (GRD)
WHITE (WHT)
FAN
RECEPTACLE
WIRE
PANEL
FAN
