BI_BIRM_UserGuide Page 4 of 4
MAINTENANCE
Ensure power supply is disconnected and locked out prior to performing maintenance
1. Inspect and tighten the wheel set screw after the first 50 to 100 hours of operation and periodically thereafter.
2. Follow the motor manufacturer's instructions for motor lubrication. Remove any excess lubrication.
3. Drives:
A - Check belt tension and alignment, replace cracked or worn belts. If it is necessary to replace one belt on
a multiple belt drive, replace all the belts with a matched set.
B - Under normal conditions, no re-lubrication is the rule. The bearing lubricant cavity is 1/3-1/2 filled as Shipped
from the factory. Never lubricate new bearings.
C - Tighten set-screws on sheaves, wheel and bearing locking collars.
4. Clean the blower wheel periodically. Material build up on the blades can cause wheel imbalance which may result in
wheel or motor bearing failure.
5. Generally, bearings should be lubricated at six to twelve month intervals. Recommended lubricants are: a) Imperial O
i
l
- ESSO Beacon 325, or b) Shell Oil - Alvania Grease #3. A
small amount of grease should be added slowly when the
shaft is rotating. Note: Over greasing may cause damage to the bearing. Avoid rupturing the bearing seal.
6. To reinstall replacement ball bearings press the locking collar against the inner ring of the bearing and turn in the
direction of the shaft rotation until engaged. Insert a drift pin into the pin hole and tap lightly to set. Tighten setscrew
on locking collar firmly.
7. Should further service to the blower be necessary, refer to the exploded view illustration (Figure 3).
WARRANTY
Canarm Ltd. Air Moving products are guaranteed for a period of one year against manufacturing defects in material and
workmanship when operating under normal conditions. Liability is limited to the replacement of defective parts. Labour
and transportation costs are not included.
CANARM LTD. – Corporate Office 2157 Parkedale Avenue, PO Box 367, Brockville, ON Canada K6V 5V6
Tel: (613)342-5424 Fax: 1-800-263-4598
www.canarm.com hvacsales@canarm.ca

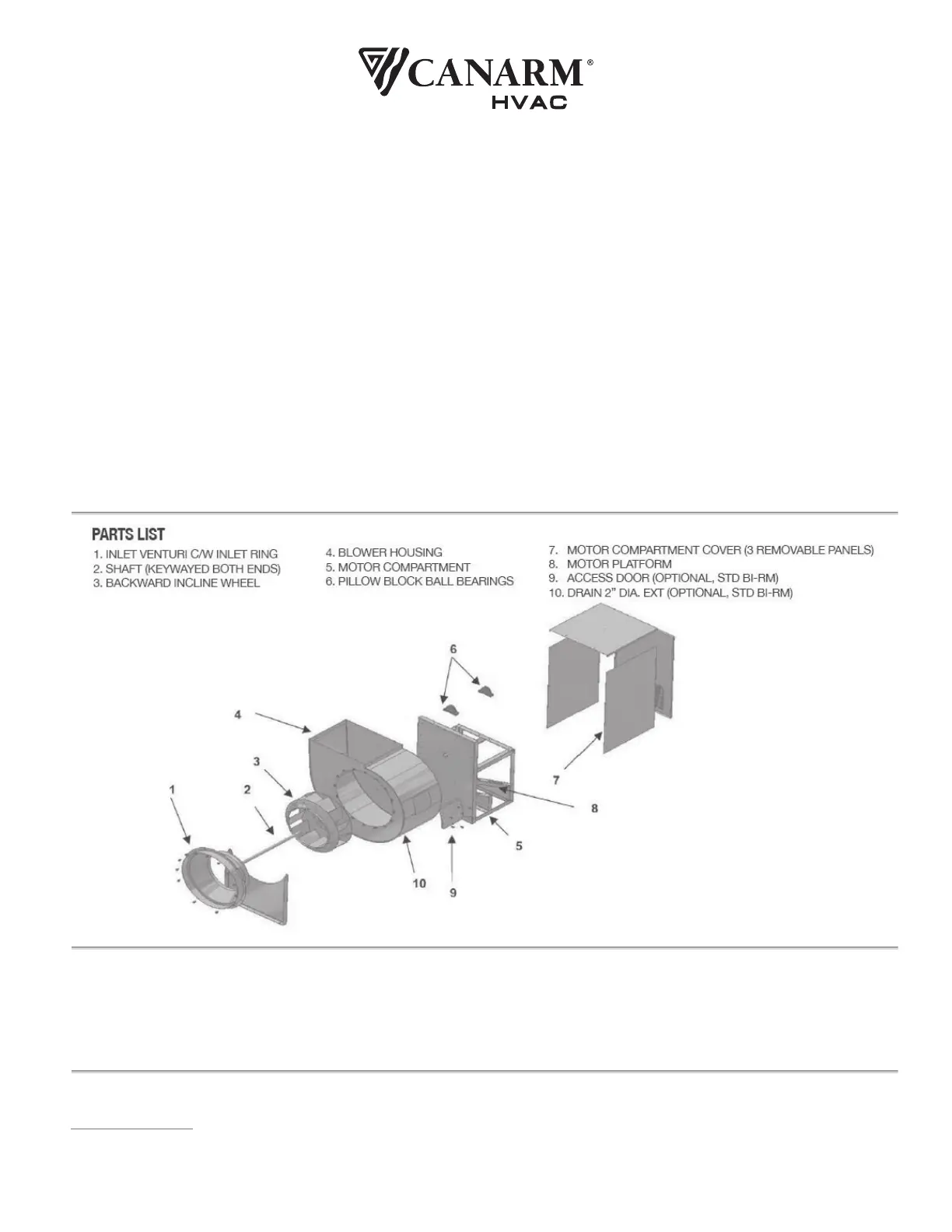

FIGURE 3 – EXPLODED VIEW
