1
1
1
2
3
4
4
6
5
7
8
9
4
1
2
1
2
4
0
1
1
3
1

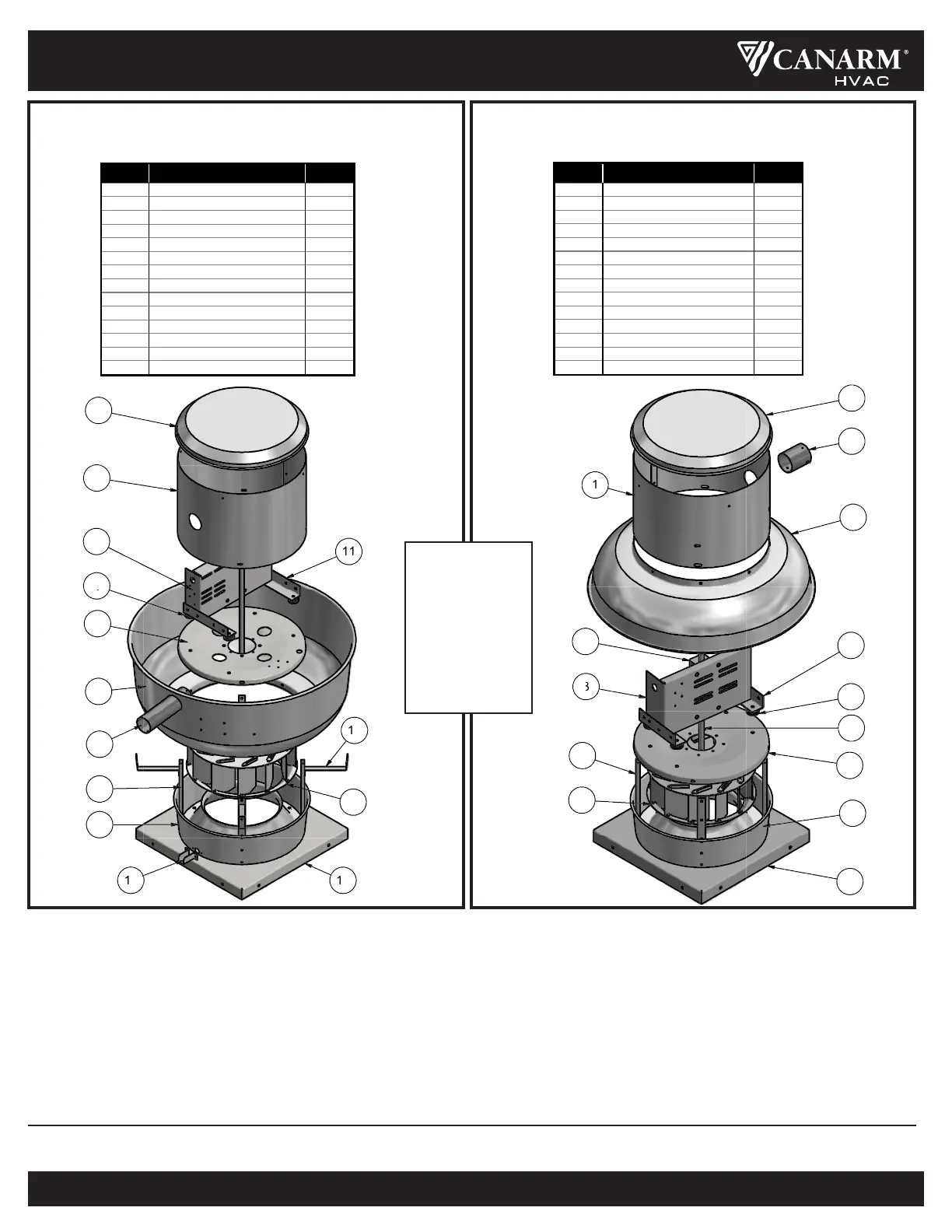

ALX SERIES SPUN ALUMINUM UPBLAST
EXHAUSTERS - EXPLODED VIEW
ITEM # DESCRIPTION QTY
1 TOP CAP 1
2 MOTOR WRAP 1
3 MOTOR SUPPORT PLATE 1
4VIBRATION ELIMINATOR 4
5 TOP PLATE 1
6 UPBLAST APRON 1
7 VENT 1
8 VERTICAL BRACKET 4
9 INLET BAFFLE 4
10 DRAIN 4
11 MOTOR SUPPORT RAIL 2
12 HORIZONTAL BRACKET 4
13 BASE 1
14 BLOWER WHEEL 1
5
6
1
7
2
3
3
2
8
9
4
4
1
4
11
12
10
13
ALX SERIES SPUN ALUMINUM DOWNBLAST
EXHAUSTERS - EXPLODED VIEW
ITEM # DESCRIPTION QTY
1 MOTOR WRAP 1
2BEARING 2
3 MOTOR SUPPORT PLATE 1
4VERTICAL BRACKET 4
5 TOP CAP 1
6 VENT TUBE 1
7DOWNBLAST APRON 1
8 MOTOR SUPPORT RAIL 2
9 VIBRATION ELIMINATOR 4
10 SHAFT 1
11 TOP PLATE 1
12 INLET BAFFLE 1
13 BAS
E 1
14 BLOWER WHEEL 1
NOTE: General
models are
shown above.
Actual unit might
vary according
to size.
ALX-M-16_10_24 Page 7 of 7
Canarm Ltd. - Corporate Head Office 2157 Parkedale Avenue, PO Box 367 Brockville, Ontario Canada K6V 5V6
Tel: (613) 342-5424; Fax: (613) 342-8437 www.canarm.com hvacsales@canarm.ca
WARRANTY
CANARM Ltd. warrants every new fan to be free of defects in material and workmanship to the extent that, within a period of one year
from the date of purchase CANARM Ltd. shall either repair or replace at CANARM’s option, any unit or part thereof, returned freight
prepaid, and found to be defective.
This warranty does not include any labour or transportation costs incidental to the removal and reinstallation of the unit at the user’s
premises.
Components repaired or replaced are warranted through the remainder of the original warranty period only; it is null and void in case of
alteration, accident, abuse, neglect, and operation not in accordance with instructions.
NOTICE: No warranty claims will be honored by CANARM Ltd. unless prior authorization is obtained.
