Instructions for Resetting Heaters

CAUTION: Electrical Shock Hazard!

Before attempting to reset the hi-limit thermostat, unplug the heater power cord

from the power source and from the heater.

WARNING! Only use "non-metal" tools to depress the reset button.

Do not bypass or alter the thermostats in any way.

1. Remove the power cord from the wall outlet or power supply and remove the

other end from the front of the heater.

2. Open the door, reach into the compartment and hold the heater rmly while

you remove the 5 SS screws with washers, holding the heater against the inner

face of the module.

3. Place the heater on a stable surface with the metal section facing down.

Locate the small round hole in the cover with the word RESET next to the hole.

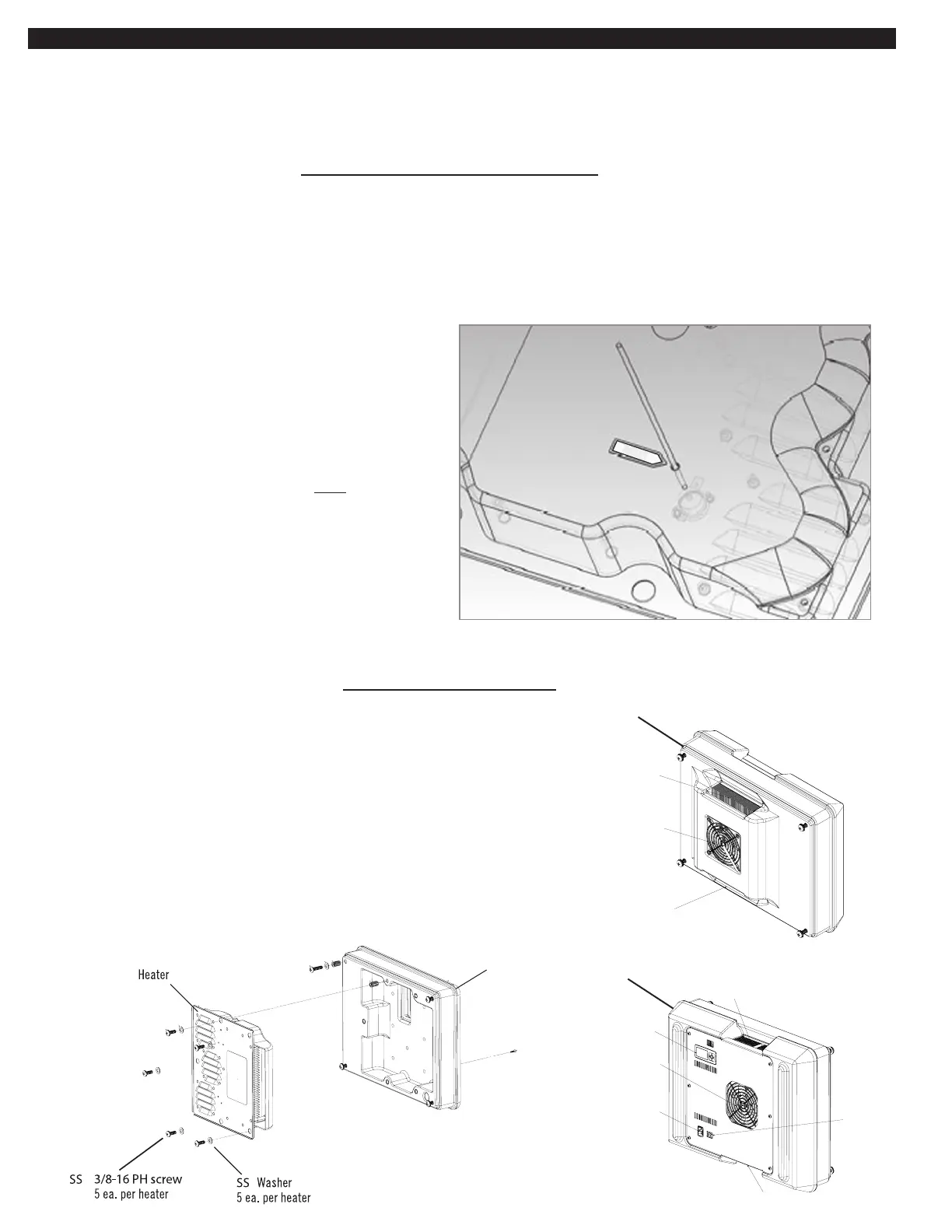

4. Using a small diameter, round, non-metal item such as a rigid plastic stir stick

or wooden skewer stick, guide it through the hole and depress the button on

the hi-limit thermostat as seen in the gure below.

NOTE: The Amber light will not be active when the high-limit thermostat has

been tripped along with the loss of the heater element.

5. Remove the item you used to depress the button and re-attach the heater to

the module with the screws and washers.

6. Plug the cord into the heater and then to the power source. Switch on the

heater and verify it is heating up to the normal temperature.

NOTE: Normal operation of the heater is controlled by an automatic cycling "Control Thermostat." Failure of the control thermostat may cause the temperature inside the

compartment to rise to temperatures that could cause damage to the plastic.

A second, manually resettable "Hi-limit Thermostat," is built into the heater circuit. This device will shut off power to the heater in the event the temperature in the cabinet

reaches to 195˚F (90,6˚C). The heating unit will not return to normal operation until the reset button on the hi-limit thermostat is depressed. Other factors can cause the

hi-limit thermostat to shut off power, such as fan failure or placing food pans inside the compartment with temperatures higher than 190˚F (87,8˚C).

Cleaning Modules

RESET

A. MODULES

WARNING! Completely cool heater unit prior to cleaning or maintenance.

WARNING! Do not submerge heater or cold module in water or spray water on it.

WARNING! Do not get the thermometer wet in any way.

WARNING! Unplug grounded power source from module prior to cleaning.

VII. Care and Maintenance

TIP! Before removing any modules, put the cart's brakes on.

1. Carefully remove SS screws and washers from heater with one hand while holding heater with your other hand.

CAUTION! Once you start loosening the screws, the heater may fall unless you are rmly holding it.

2. Clean components and module with a moist soft cloth and mild detergent to remove any remaining dirt.

3. Completely air dry all components or wipe with dry, clean soft cloth before re-assembling and using.

4. Carefully place heater into the recessed area of the inner face of the module. Align AC inlet for power

connection with rectangular hole through the module.

5. Use SS screws and washers to re-attach the heater to the module. Tighten the screws rmly but not

excessively. Do not use tools other than a #3 Phillips screwdriver. During normal operation, periodically

check screws for tightness.

6. Inspect plug blades and cord, replace power cord if frayed or blades or prongs are missing, bent or broken.

Hot Module

Keep clean

Do not spray water on this unit

Compressed air may be used to clean

the ns

VIEW FROM INSIDE

Cold Module

Keep clean

100-240AC input

Digital control

On/Off power switch

Compressed air may be used

to clean ns

DANGER: electrical shock hazard!

DO NOT remove the metal cover,

no user serviceable parts inside.

• DO NOT spray water on unit.

• DO NOT block vent or fan intake.

• Keep unit at least 6 inches (15,24 cm)

from all surfaces for best operation.

VIEW FROM OUTSIDE
