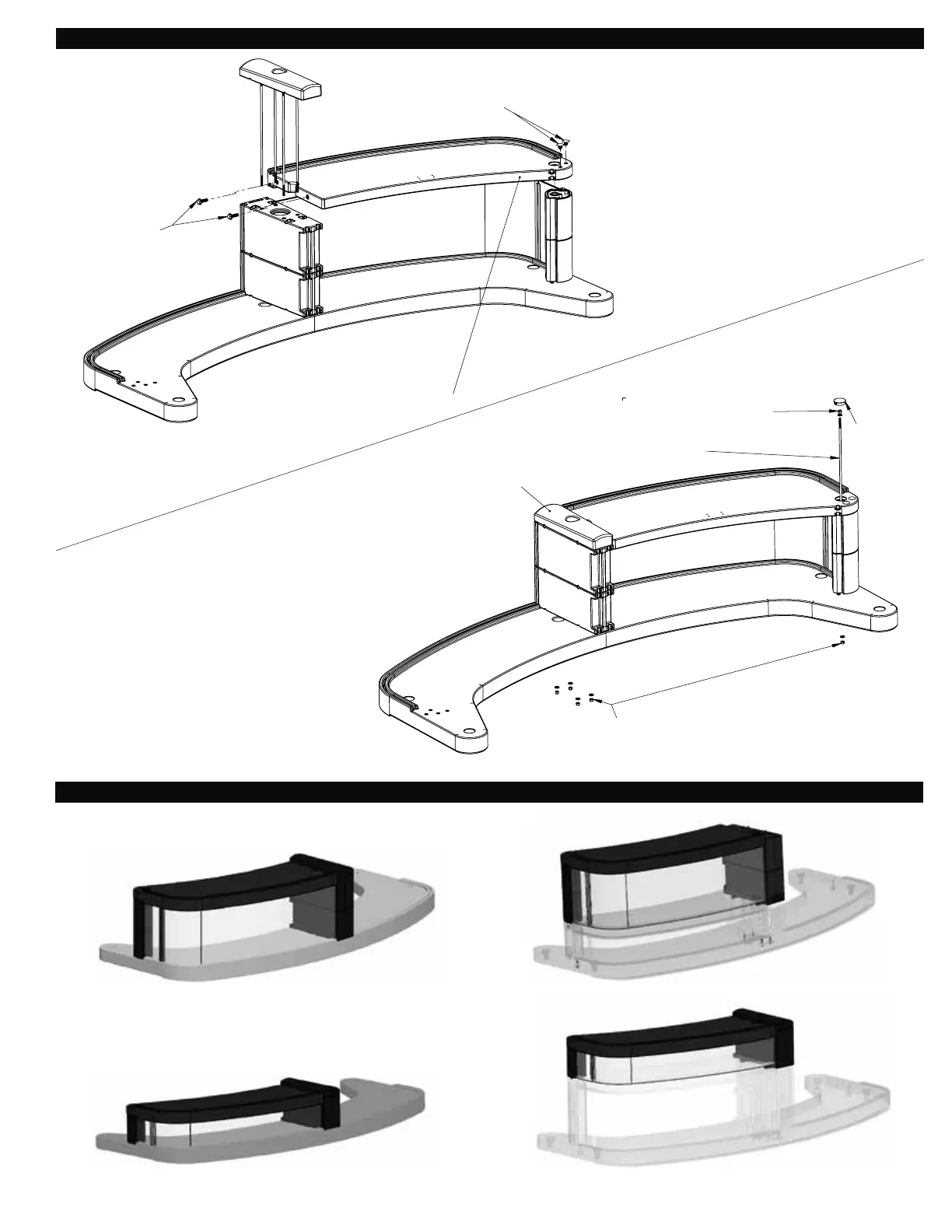

I. Display Case and Extender Installation Cont.
Step 5
Step 6
Step 6
Lower the Center Cap with
the 4 rods onto the raiser and
nest the hex bolts with washers
Place the 15.5" rod through
the shelf and corner supports
and finally through the
main shelf
After all rods are positioned and not
protruding higher than the surfaces adjacent
to the recess areas, fasten the nuts snug but
do not over tighten.
Fasten down until 1.5 threads
are beyond the nut
Snap
into recess
after all
items are
done.
II. Extender Installation / Side Shelves
CVC75DC12
CVC75DCE12
CVC75DC6 CVC75DCE6
Step 5
Install hex bolts
& Washers into
end of Display
Case Shelf, depth
matching the
space on the
raiser.
Position the Shelf onto the clear panels
and nest the hex bolts with the raisers
plus locate the dowels with the holes
on the shelf.
Insert two plastic plugs into
the two small holes on the shelf
Install hex bolts&
Washers into end of
Display Case Shelf,
depth matching the
space on the raiser.
Adjust in to t the
recess in the raiser
