Product Description 28
l
Packet Error Ratio (PER),
l
SNR,
l
local measurements of successful and unsuccessful frame transmissions (for example, count of frames
Acknowledged (ACKed) or Not ACKed).

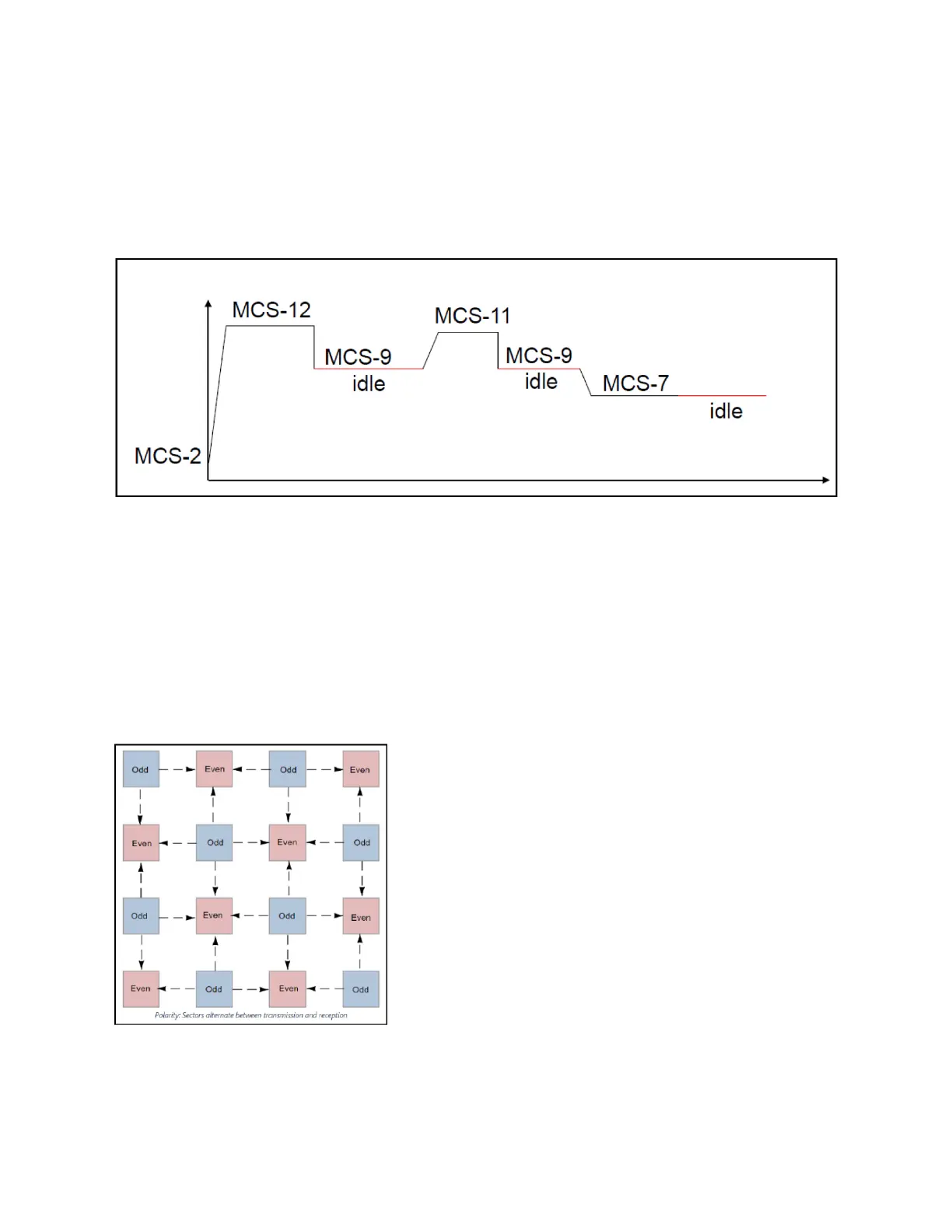

Figure 10:
Adjusting links
Start from MCS2, adjust based on signal quality, when the session is idle, fall back to MCS-9 or any highest MCS
achieved below MCS-9.
Synchronization
Synchronization is used to control the transmit and receive signals to prevent self-interference. Radios assigned with
the same polarity will be transmitting and receiving at the same time. There are two types of polarities:
l
Odd (if Odd nodes are Tx)
l
Even (if Even nodes are Rx)
Figure 11:
Odd and even polarities
The MAC synchronizes its timers to an external, accurate time source, such as GPS or IEEE 1588. A timing pulse that
resets the Timing Synchronization Function (TSF) on the DN is repeated once every second. This timing pulse occurs
exactly at the turn of each second.
