Product Description 22

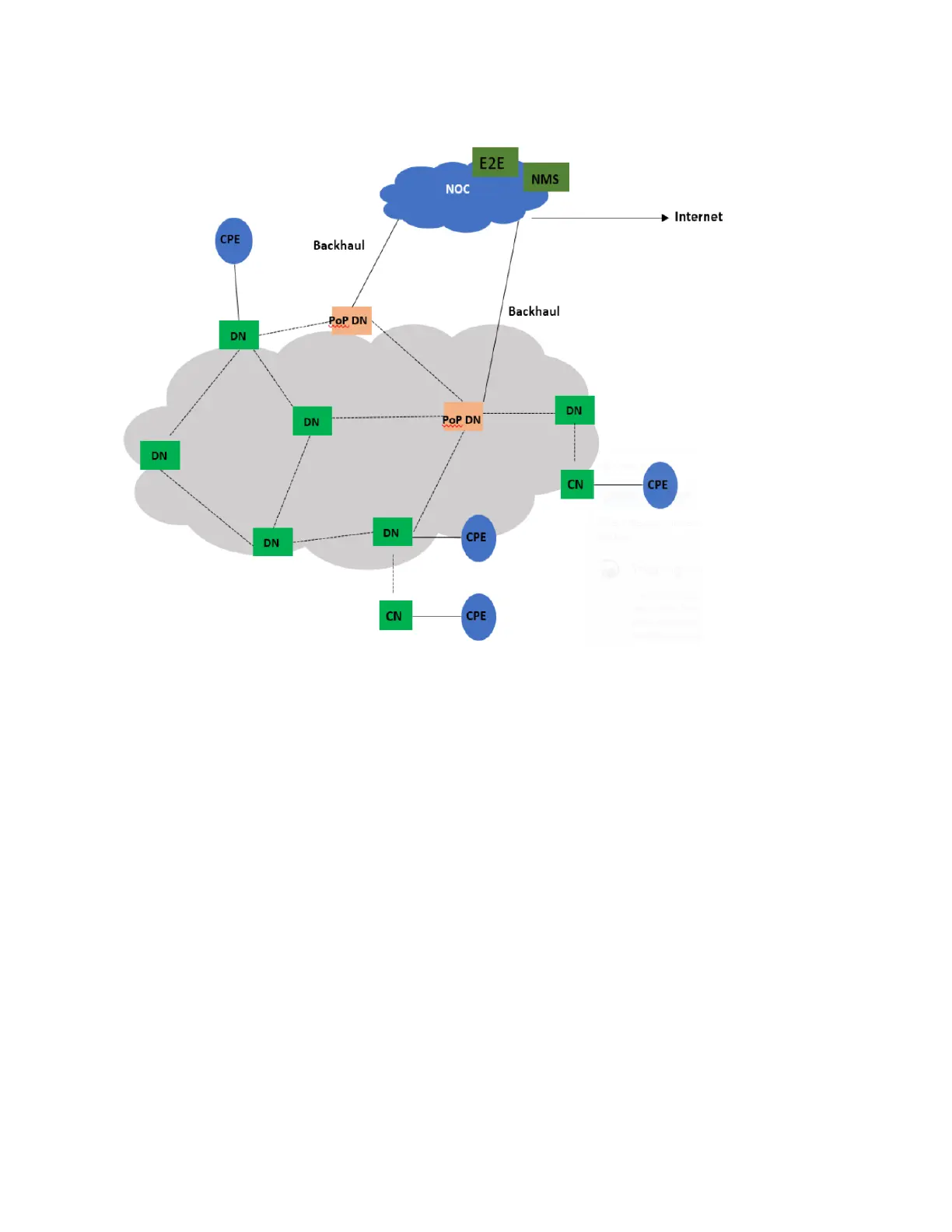

Figure 5:
Deployment scenario
Overview of cnWave family
The 60 GHz cnWave solution (from Cambium Networks) provides easy, fast, and cost-effective wireless Gigabit
connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower cost than
fiber infrastructure. Service providers and enterprises now have access to Gigabit for business and residential
connectivity, backhaul for Wi-Fi access. Certified for Facebook Terragraph, 60 GHz cnWave Mesh solutions are highly
efficient at handling high-density deployments in cities and suburban areas.
The 60 GHz solution consists of a Distribution Node (DN), which acts as an Access Point (AP), and a Client Node (CN)
that acts as a cnWave client.
60 GHz cnWave consists of the following four variants (as shown in Figure 6):
l
V1000 : A Client Node (CN) that contains a wide-range, 80 degrees beamforming for easy installation. This CN
is powered by 802.3af PoE and supports up to 2 Gbps for PTP and PMP configurations.
l
V2000: A CN that contains a 34.5 dBi antenna with beamforming. This client node can support up to 3.6 Gbps
for PTP and PMP configurations.
l
V3000: A Client Node (CN) is available in two sizes - 44.5 dBi high-gain antenna and 40.5 dBi lower gain
antenna, both with beamforming. These client nodes can support up to 5.4 Gbps, with channel bonding for PTP
configurations.
