cnReach N500 User Guide System Configuration

phn-4980_001v004 August 2019)

2-55

Wire-replacement Menu

The wire-replacement feature enables the operator to “pass” I/O input from one cnReach as I/O output

to another cnReach. One I/O input can be passed to multiple cnReach IP addresses. The wire-

replacement feature is implemented by hosting a Modbus-TCP master in the cnReach. This process will

probe any cnReach’s IO module (source) for status and trigger output on the destination cnReach unit.

The “wire” can be configured on any cnReach unit (IO capable or non-IO capable radios or IO

expanders). The source cnReach and destination cnReach should be IO capable.

Wire-replacement is only supported on OS version 5.2.17 and above. A wire-replacement software

module needs to be uploaded and applied to the OS. This separate wire replacement software

module should be downloaded from the support website and installed on the management/files

pages just as an OS upgrade would be installed. After installation, the wire replacement menu and

options will be visible in the GUI.

The following are some example use cases for wire-replacement.

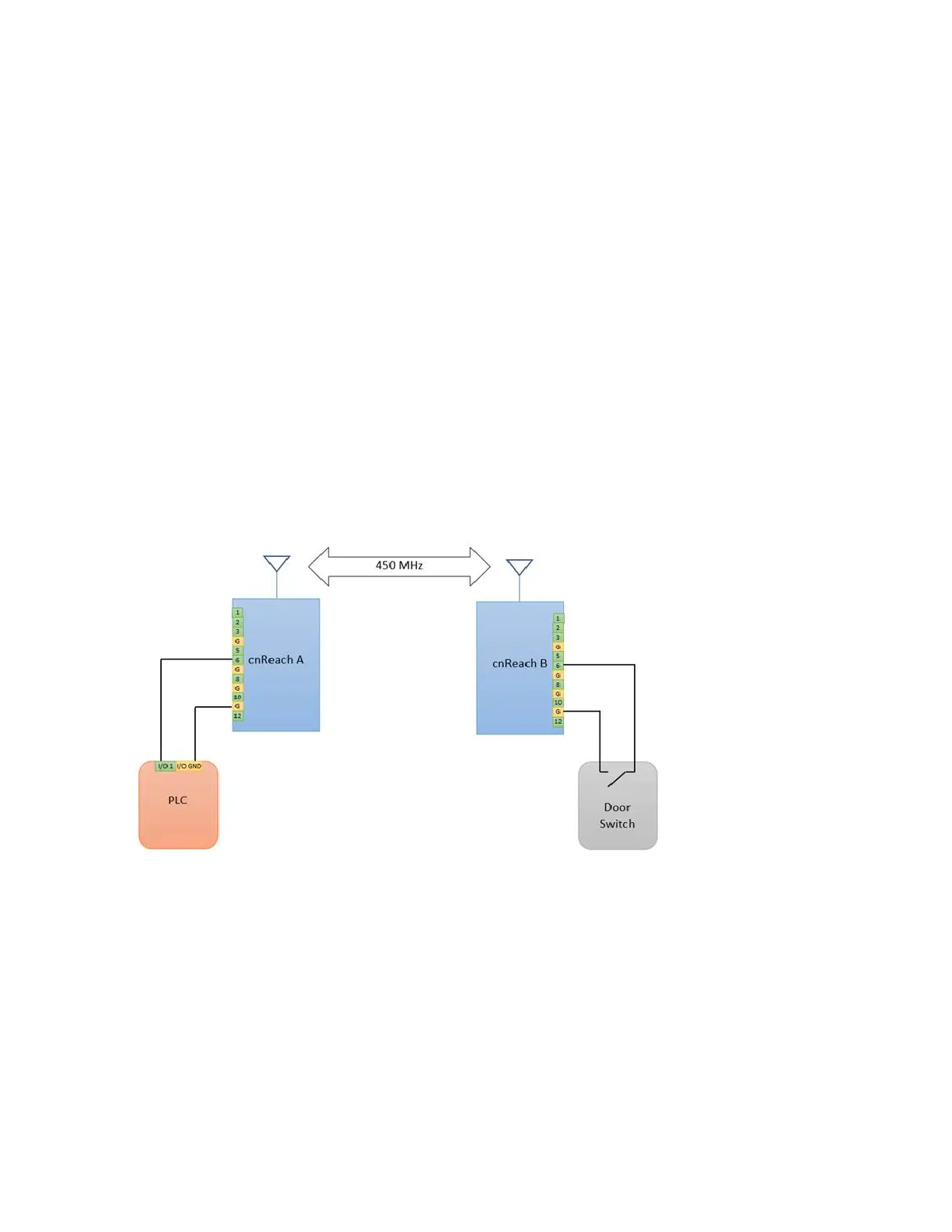

• Case #1 Read pin states on cnReach at Location A when state of pins on cnReach at location B

changes (e.g. Door Switch opens/closes)

• Case #2 Water pumps deployment - Signals input on the intake pump side shall be output on the

processing plant side in the same format and score
