cnReach N500 User Guide

Technical Reference

phn-4673_002v000 (March 2018)

3-42

Serial RJ-45

Pin #

RS 422/485 Signal

Pinout

T568B

Wire Color

Connect to these lines

on Serial End Device

1 White/Orange

2 Orange

3 White/Green

4 Signal Ground (GND) Blue Signal Ground (GND)

5 Bus+ (short to Pin6) White/Blue

Bus+

6 Bus+ (short to Pin5) Green

7 Bus– (short to Pin8) White/Brown

Bus–

8 Bus– (short to Pin7) Brown

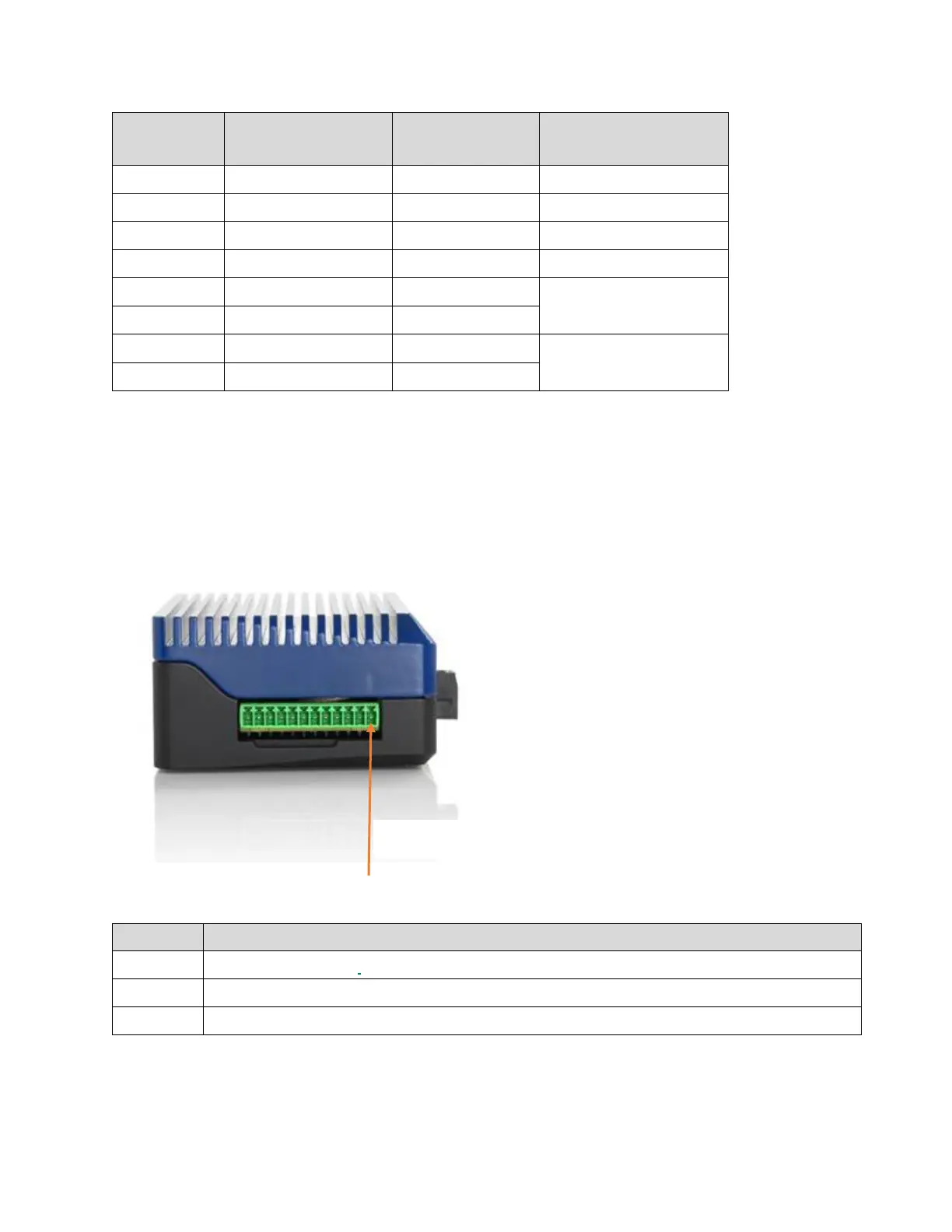

I/O Connections Pinout for Radios Sync

All cnReach radios include the following I/O pins. Additional I/O is available on the cnReach radios with

I/O and the I/O expander. See the section on I/O for other pin definitions.

IO Pin #

Signal Pinout

1

DI-1 : See SNMP Section for details

2 Synchronization: See Synchronization Section for details

4 Ground

Pin 1
