cnReach N500 User Guide
Technical Reference
phn-4673_002v000 (March 2018)
3-36

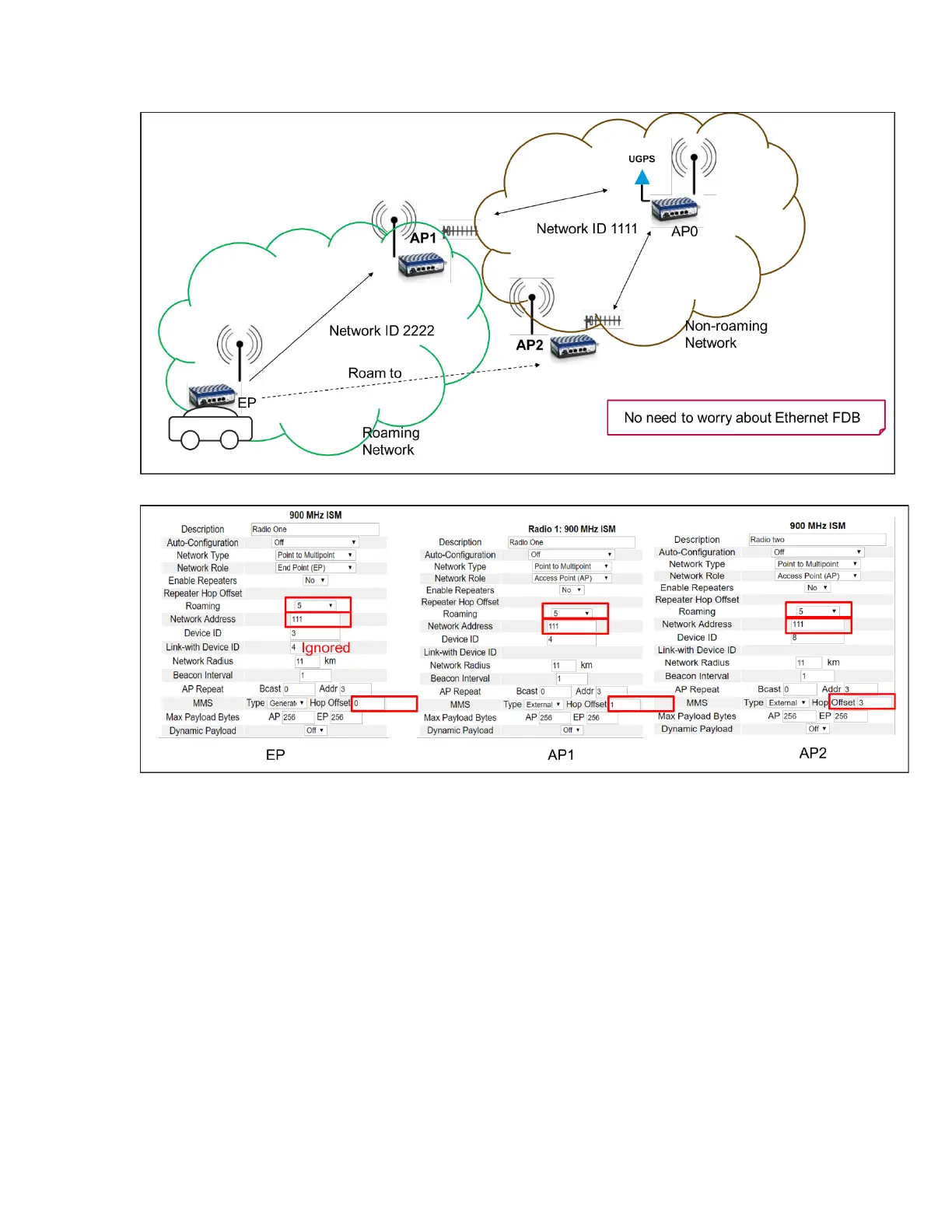

Example of configurations following:
Pay attention to the following bullet points:
A. Make sure to use the same hop pattern and network address across the network
B. EP hop offset must be set to 0
C. Each AP should have different hop offset
D. “Roaming” defines max number of APs that the EP can roam to
E. Follow sync rule – all frame duration/timing must be the same (transmit rate, payload bytes,
Radius, dynamic off)
2. Roaming among REPs
The following diagram showed an EP romaing among the REPs.
