cnReach N500 User Guide System Configuration

phn-4980_001v004 August 2019)

2-82

Diagnostics/Route Table

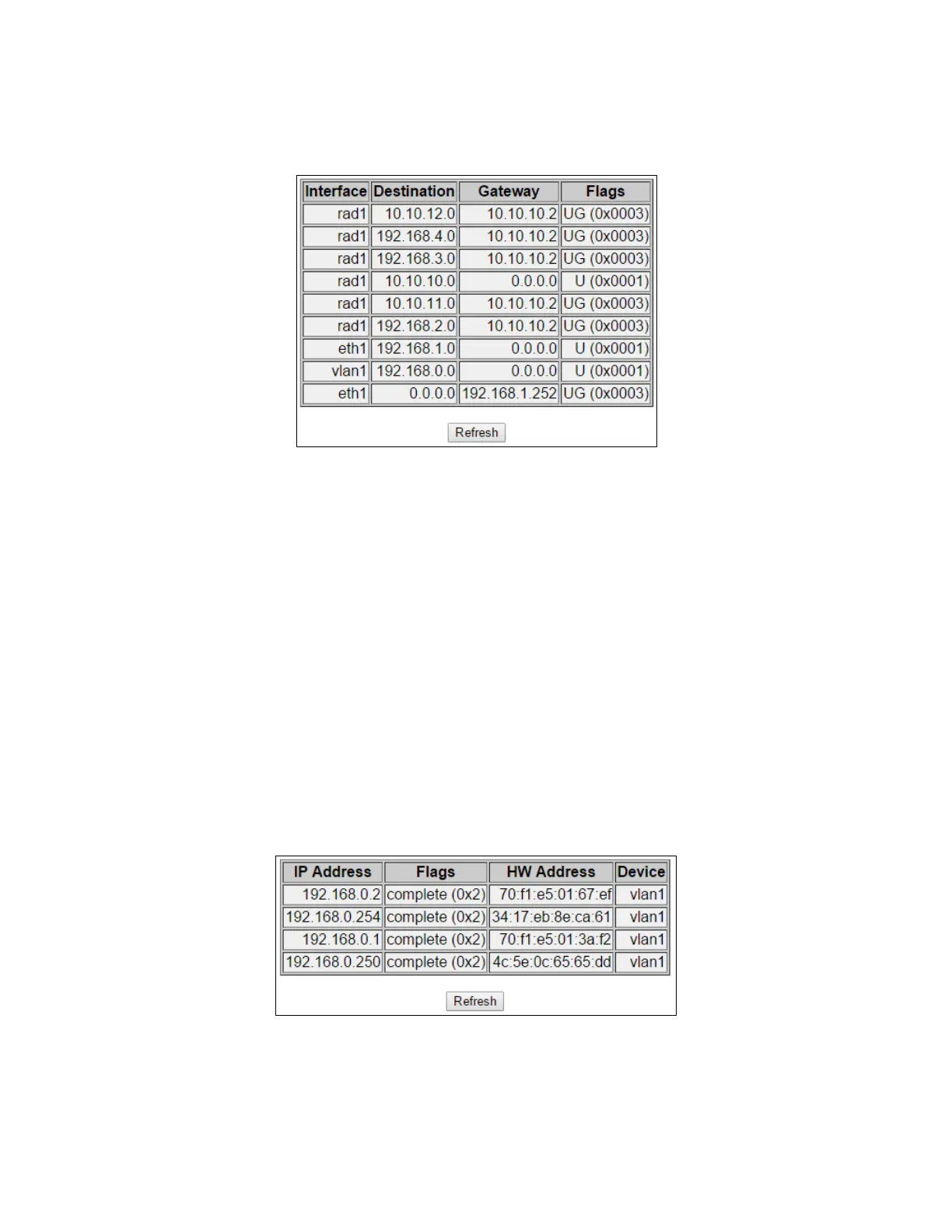

The Route Table lists the Static Routes that have been configured in the radio.

Interface is the outgoing port/interface the radio will use when forwarding a packet to destination

subnet or next hop.

Destination is the subnet of the packet’s final destination.

Gateway is the destination interface that the routed packet is sent to.

Flags define the status of the route;

• U signifies that the route is up.

• G signifies that the route is to a gateway; if this flag is missing then the route is to a directly

connected destination and no gateway is required (0.0.0.0).

Diagnostics/ARP Table

Address Resolution Protocol (ARP) is a protocol used for resolving IPV4 addresses to a physical

hardware address (MAC) that are recognized on the local network.

IPV4 addresses are Layer 3 (Network), whereas MAC addresses are Layer 2 (Data Link).

The ARP Table is used to maintain correlation between physical MAC addresses and their

corresponding IPV4 addresses.

The table shows the resolved IP Address, status Flags, HW Address (MAC) and the Device it can be

reached from.

In the case of a Bridged system, the Device will be the VLAN.

In the case of a Routed system, the Device will be the interface.
