cnReach N500 User Guide System Configuration

phn-4980_001v004 August 2019)

2-69

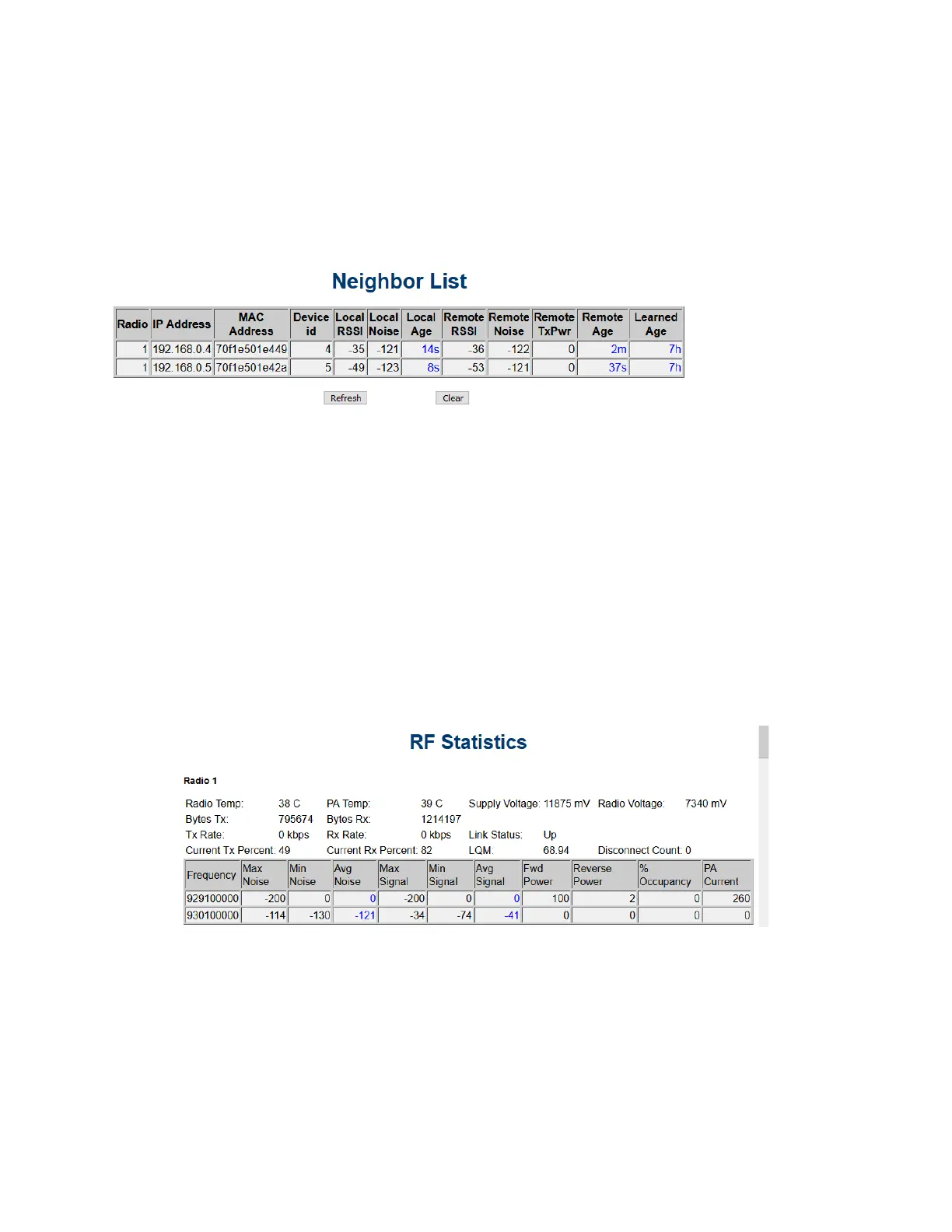

Diagnostics/Neighbor List

The Neighbor List displays information about all the End Point Radios that are connected to an Access

Point.

The End Point Neighbor List will only show the Access Point unless the Bounce setting is enabled in the

Access Point; then the End Point list will display the Neighbor End Points.

Radio shows which RF Module the Neighbor is connected to.

IP Address, MAC Address and Device ID can be used to identify the Neighbor Radios.

Local RSSI and Local Noise represents the local RSSI and Noise measured at the Access Point for each

Neighbor.

Local Age is the age of the Local RSSI and Noise measurements, which will update periodically.

Remote RSSI, Remote Noise and Remote Tx Power are represented in dBm.

Remote Age is the age of the Remote RSSI and Noise measurements, which will update periodically.

Learned Age is the age at which the Neighbor was detected and populated into the list.

Diagnostics/RF Statistics

RF Diagnostics contains statistics about the radio’s current RF Environment based on each

channel/frequency in the modulations hop table.

Radio / PA Temp shows the current temperature the radio / power amplifier in degrees C.

Supply Voltage is the DC supply voltage of the main power connector in mV.

Radio Voltage is the DC supply voltage received by the RF Module from the Ethernet board in mV. This

value will differ between products.

Bytes Tx is the quantity of bytes transmitted by the radio.

Bytes Rx is the quantity of bytes received by the radio.
