L2 Features 114

l

Shapers support only CIR and CBS parameters.

l

Modifying the Queue weight is applicable to all the ports where the scheduler is mapped.

l

Priority maps are only applied to trusted interfaces. For untrusted interfaces, the initial QoS

properties of the packet can be changed only by the use of ACL rules.

Default Values

l

There are eight egress queues for every port, the default scheduling algorithm is strict-priority.

Queue 1 is the top priority queue.

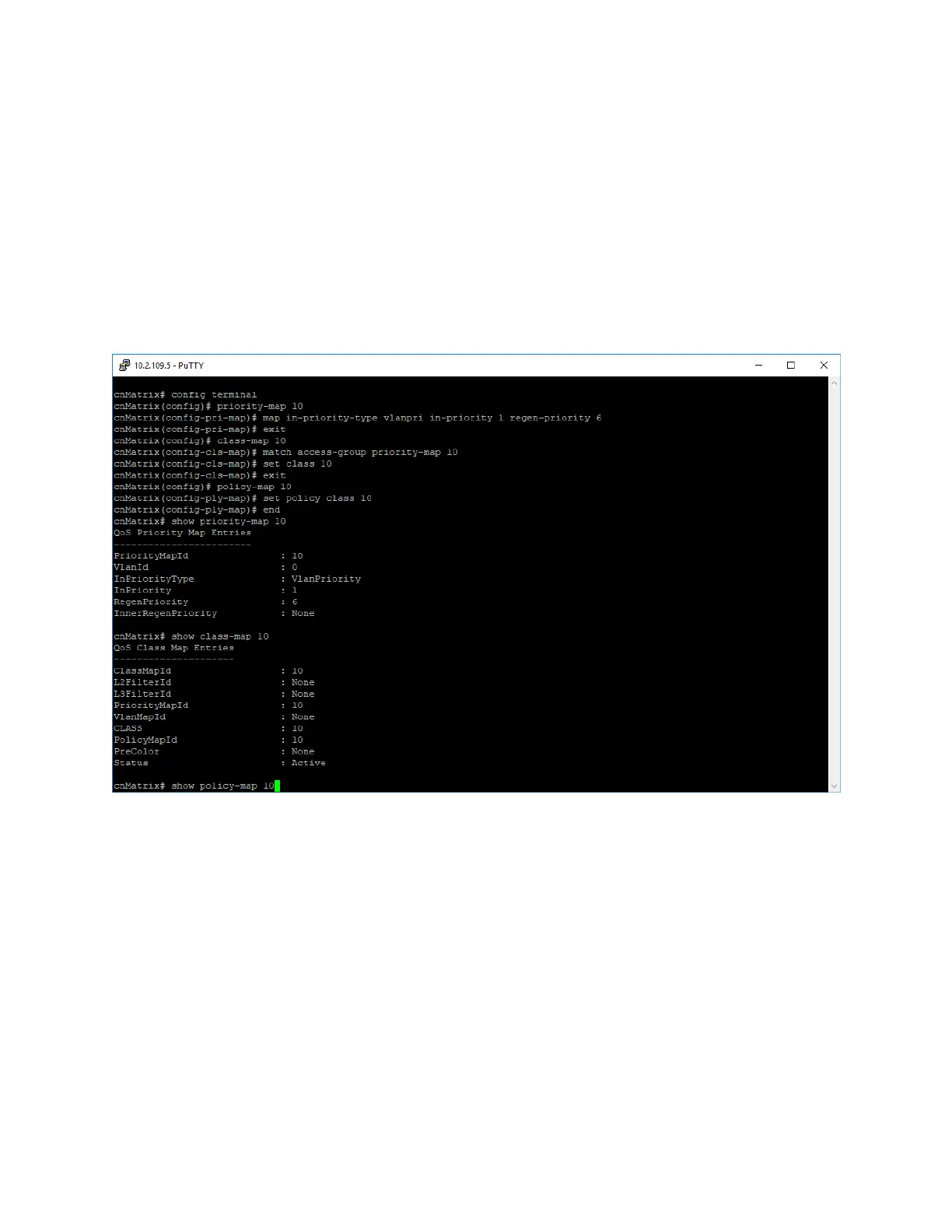

Remarking with Priority Maps (QoS)

1. Type the config terminal command into the terminal. Press the Enterkey.

2. Type the priority-map 10 command into the terminal to add a priority map entry. Press the

Enterkey.

3. Type the map in-priority-type vlanpri in-priority 1 regen-priority 6 command into the terminal

(mapping incoming priority to regen priority). Press the Enterkey.

4. Type the exit command into the terminal to go back to the configuration mode. Press the

Enterkey.

5. Type the class-map 10 command into the terminal to add a class map. Press the Enterkey.

6. Type the match access-group priority-map 10 command into theterminal to set class map

parameters. Press the Enterkey.

7. Type the set class 10 command into the terminal to set class for L2 and/or L3. Press the Enterkey.
