45
SD675650 ISSUE 6 M172 DELTA
Pool water in/out stubs
For sizes see Section 6.0)
Condensate drain
3/4” BSPM connection should
be run away wi sucient
fall. 1/2” per foot minimum.
(see below)
LPHW stubs
use 28/35mm
compression
fittings or 1 1/2” BSPM
readed connections
(Delta 1 to Delta 12)
Pool hall air in
customer’s "tun dish"
Drain to waste
Delta unit
Delta drain
(Copper stub)

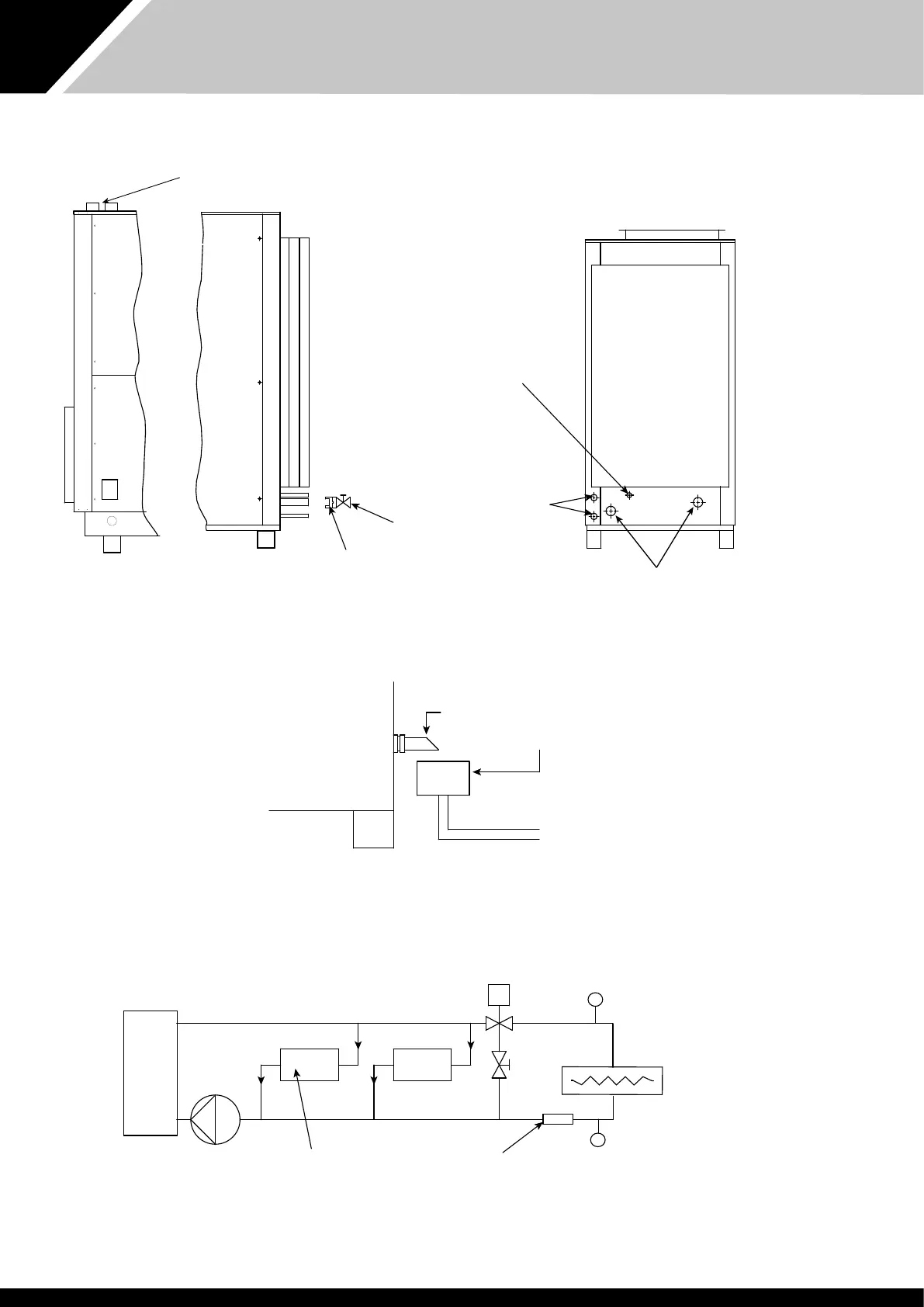

Fig 3.1 Condensate drain schematic
Isolation valves
Breakable couplings
3 way motorised valve
(diverting) controlled
by heat pump
LPHW Schematic
Boiler
Flow
balance
valve
LPHW connections
located on Delta cabinet
Flow setting
pressure gauges
meod
Radaitors, if fitted
Pump
Flow meter or
commissioning set
Flow setting
pressure gauges
meod
LPHW stubs 1 1/2"BSPM
threaded connections on
Delta 14 and Delta 16
