49-2000707 Rev. 9 11

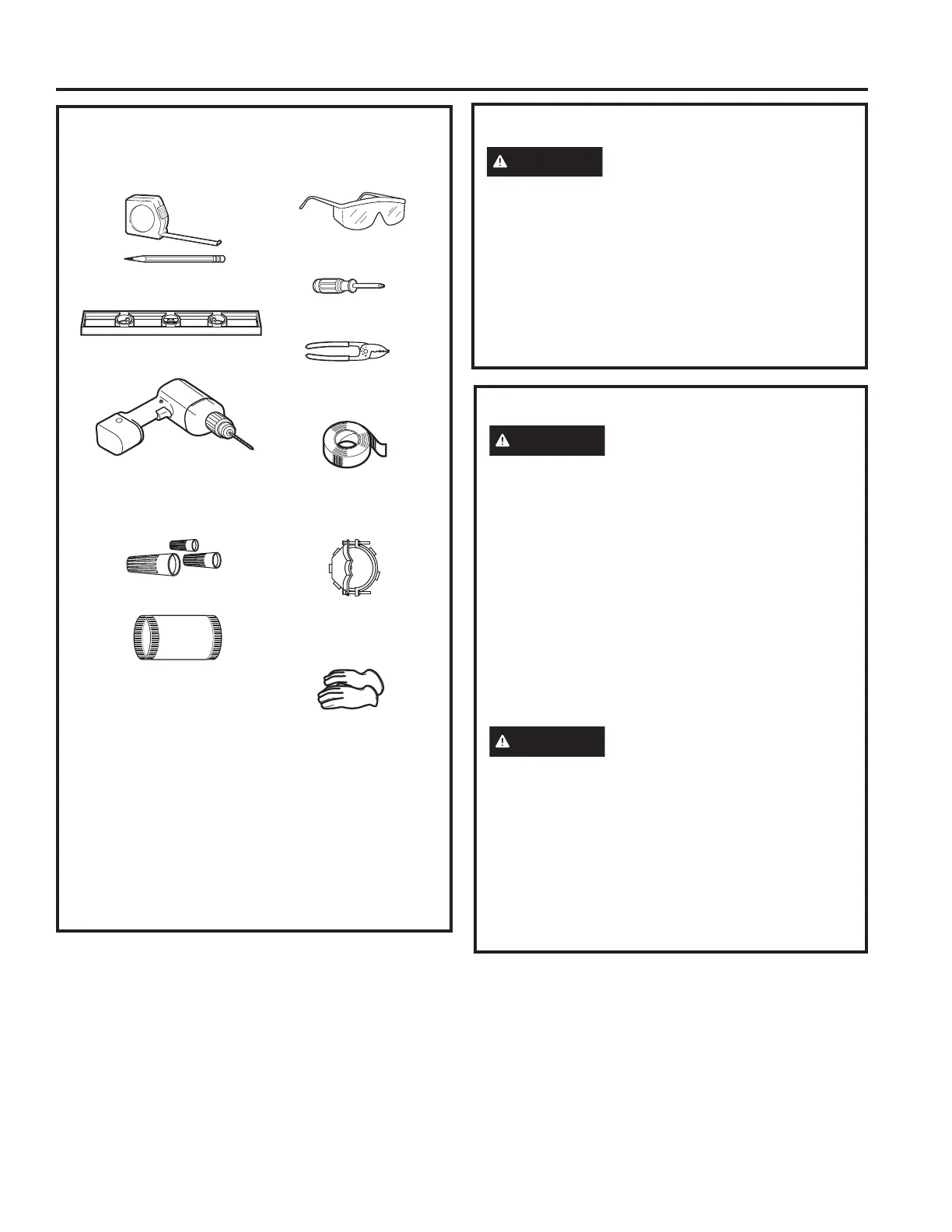

TOOLS AND MATERIALS
REQUIRED (NOT SUPPLIED)
Installation Preparation
INSTALLATION PREPARATION
Wire cutter/stripper
Level
Aluminized
duct tape
Safety glasses
Phillips screwdriver with
at least 6" shank
Strain relief for
junction box, 1”
diameter knockout
Electric drill with #2 Phillips
with 1/8" and 5/16" drill bits
UL listed wire nuts
Pencil and tape measure
Gloves
8” round duct for 30" and 36" models
10" round duct for 48" model
PLAN THE INSTALLATION
CAUTION
To reduce risk of fire and to
properly exhaust air, be sure to duct the air outside.
Do not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces, or garages.
PARTS SUPPLIED FOR INSTALLATION
Ŷ 1 Hardware Package
Ŷ 1 Literature Package
Ŷ 1 Installation Template
PARTS NEEDED FOR INSTALLATION
Ŷ 1 Strain Relief
Ŷ 1 Wall or Roof Cap (for vented installation only)
Ŷ All Metal Ductwork
WARNING
PERSONAL INJURY HAZARD
Because of the weight and size of the rangehood
canopy. It is recommended that 2 people are used
to install the range hood. Failure to properly lift
rangehood could result in damage to the product or
personal injury.
NOTE: Before making any cuts or holes for
installation, determine which venting method will be
used and carefully calculate all measurements.
REMOVE THE PACKAGING
CAUTION
Wear gloves to protect against
sharp edges.
Ŷ Remove the hood body.
Ŷ Remove the hardware bag, literature package and
other boxed parts.
Ŷ Remove and properly discard the protective
plastic wrapping and other packaging materials.
Ŷ Consider recycling options for your appliance
packaging material.
