49-2000930 Rev. 3 19
INSTALLATION
STEP 5
INSTALL BLOWER MOTOR ASSEMBLY - UVC-9420 AND 9480
METHOD 1
1. Lift the motor assembly on the insert canopy.
2. Insert the blower motor assembly tabs in the hood
slots and slide it, such that the motor assembly
slides from right to left into the 4 slots.
3. Tighten the 4 screws (removed earlier) - see
Remove Motor Assembly from Hood Canopy
section. Make sure the blower motor is secured
firmly to the hood canopy.
4. Reconnect the 4 cables of the motor to the ones
on the hood side and insert them into the protected
area under the control panel.
5. Mount the metal lid and tighten the 3 screws to
secure the lid on the hood body.

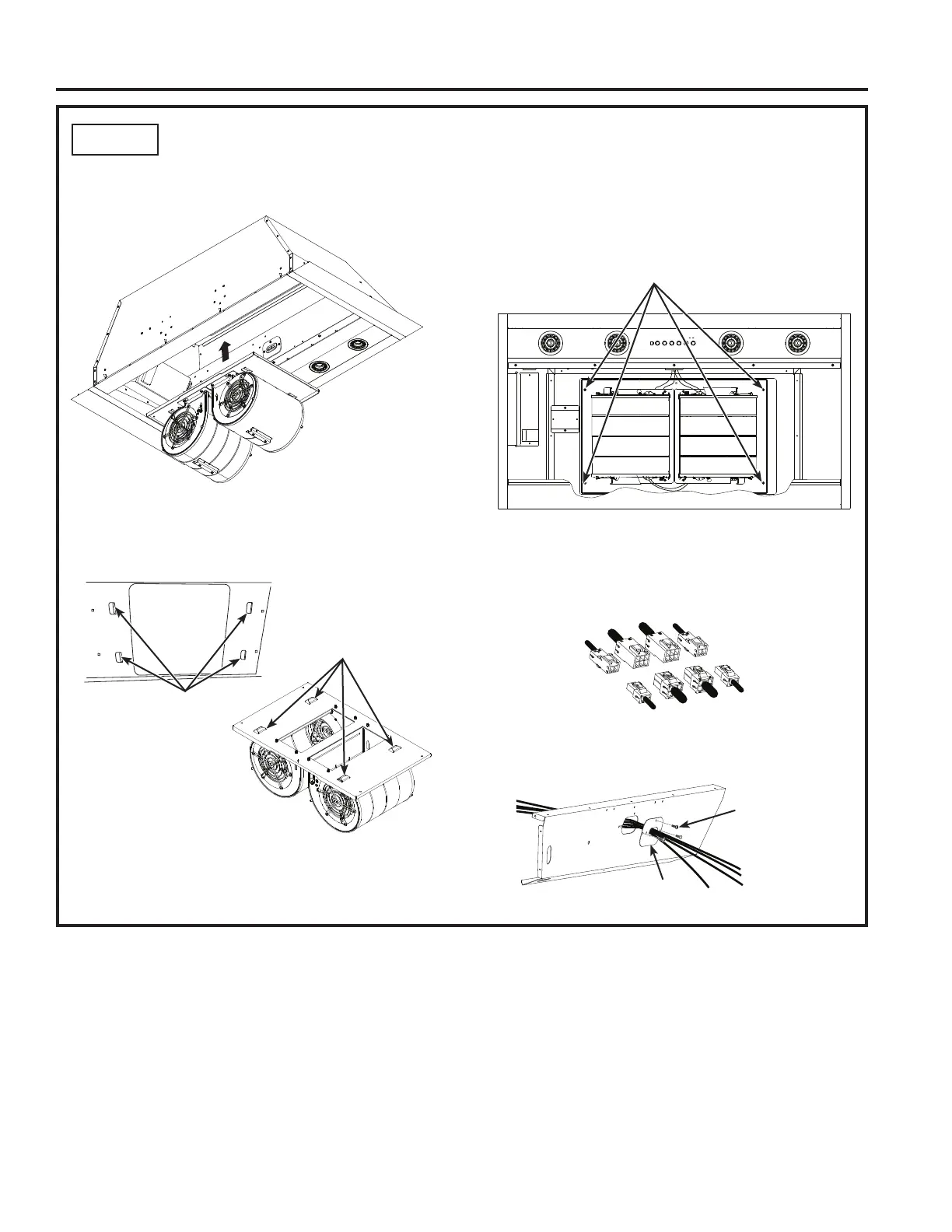

Installation - UVC 9420 and 9480
Slots on Hood
Mounting Tabs
Screws
Metal Lid
Screws
Connectors on
Hood Side
Connectors on
Motor Side
