Installation Preparation
NEW CONSTRUCTION, PRE-PLANNING, OR REMODELING
NOTE: For existing instruction, skip to the next section.

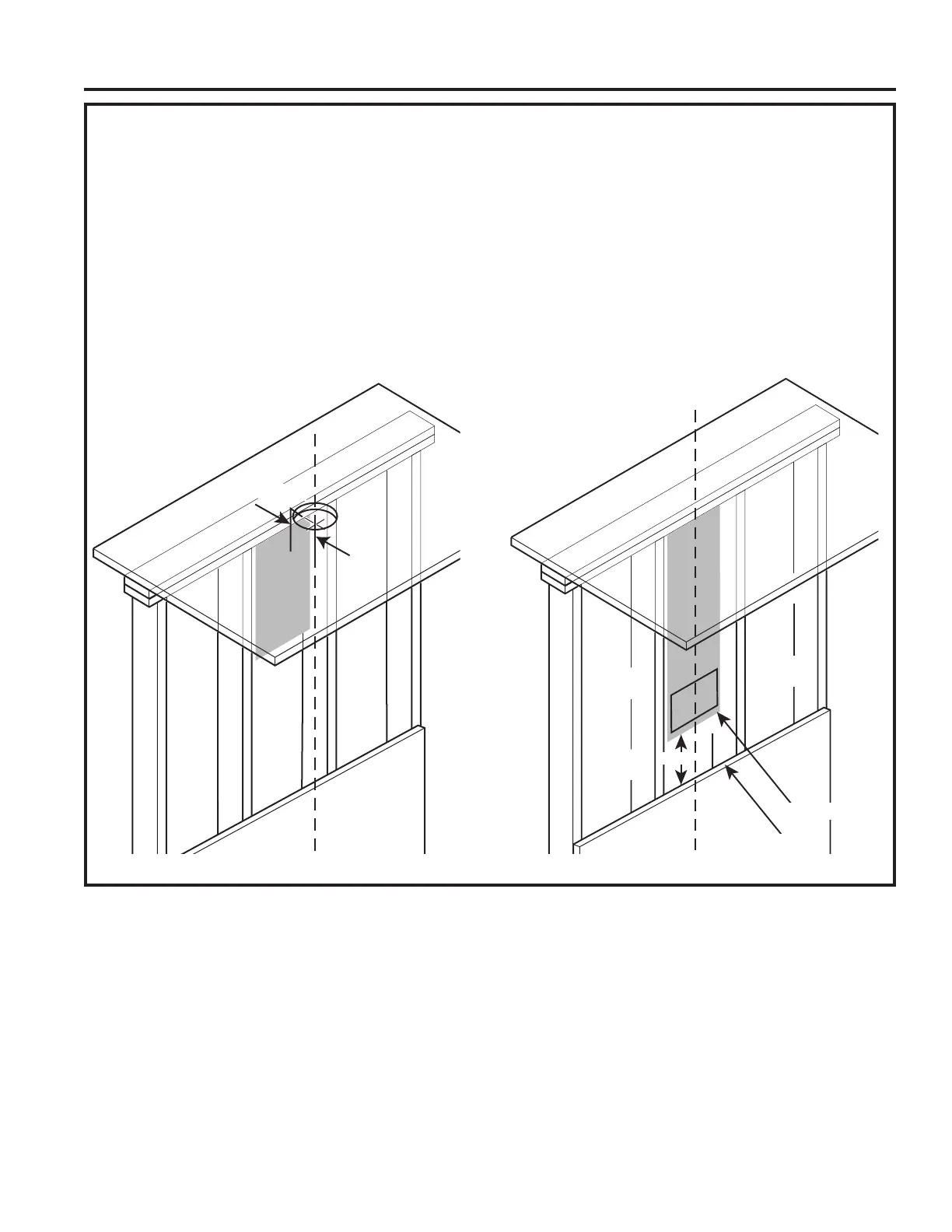

FOR TOP VENTING
■For ducted installation through the top, the 8”
diameter hole (for 30” or 36” model) for the duct
in the ceiling must be center 6-1/4” away from the
finished rear wall in the installation space.
FOR BACK VENTING
■Forductedinstallationthroughtheback,the
10-1/2"H x 13-1/4”W cut out for the duct in the wall
must be centered in the installation space, left to
right and located 3-3/4” above intended install height
from bottom of the hood.
6-1/4”
3-3/4”
10-1/2"H x 13-1/4"W
Bottom of Hood
■Thehoodjunctionboxknockoutislocated10-1/2”tothe
left from center of the hood. Ensure enough wire length is
available to make electrical connection.
