INSTALLATION PREPARATION
Installation Preparation

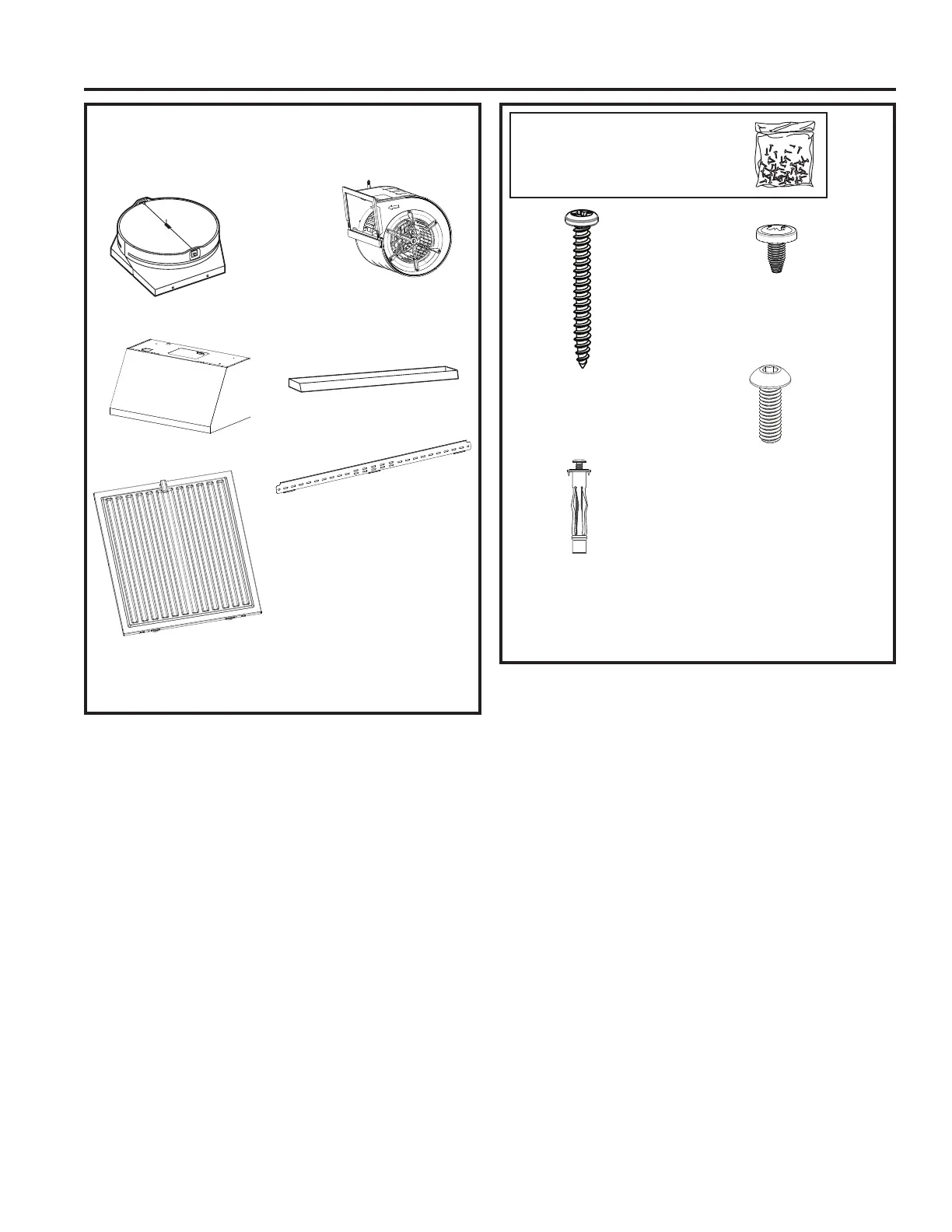

PARTS PROVIDED
Locate the parts packed with the hood.
Top Damper
761Dia28
Grease Drip Trays
Motor
Hood Body
Metal Installation Bracket
2 Baffle Filters
3 with 36” models
HARDWARE PACKAGE
Locate and check contents.
(QTY: 2) 3/16” dry wall
anchors with screws. Used
for hood bottom mounting
screw holes. Use 5/16” drill
for pilot hole.
(QTY: 4 or 8) M4 screws.
Used to mount motor
(QTY: 6) 8 x 1-3/4 AB
Screw. Used to mount the
installation bar. Use 1/8”
drill for pilot hole.
(QTY: 4) 2.9mm x 6mm
PZ screws. Used to
attach the damper
A B
C
D
