49-80819 15
Installation Instructions
INSTALLATION PREPARATION
2A

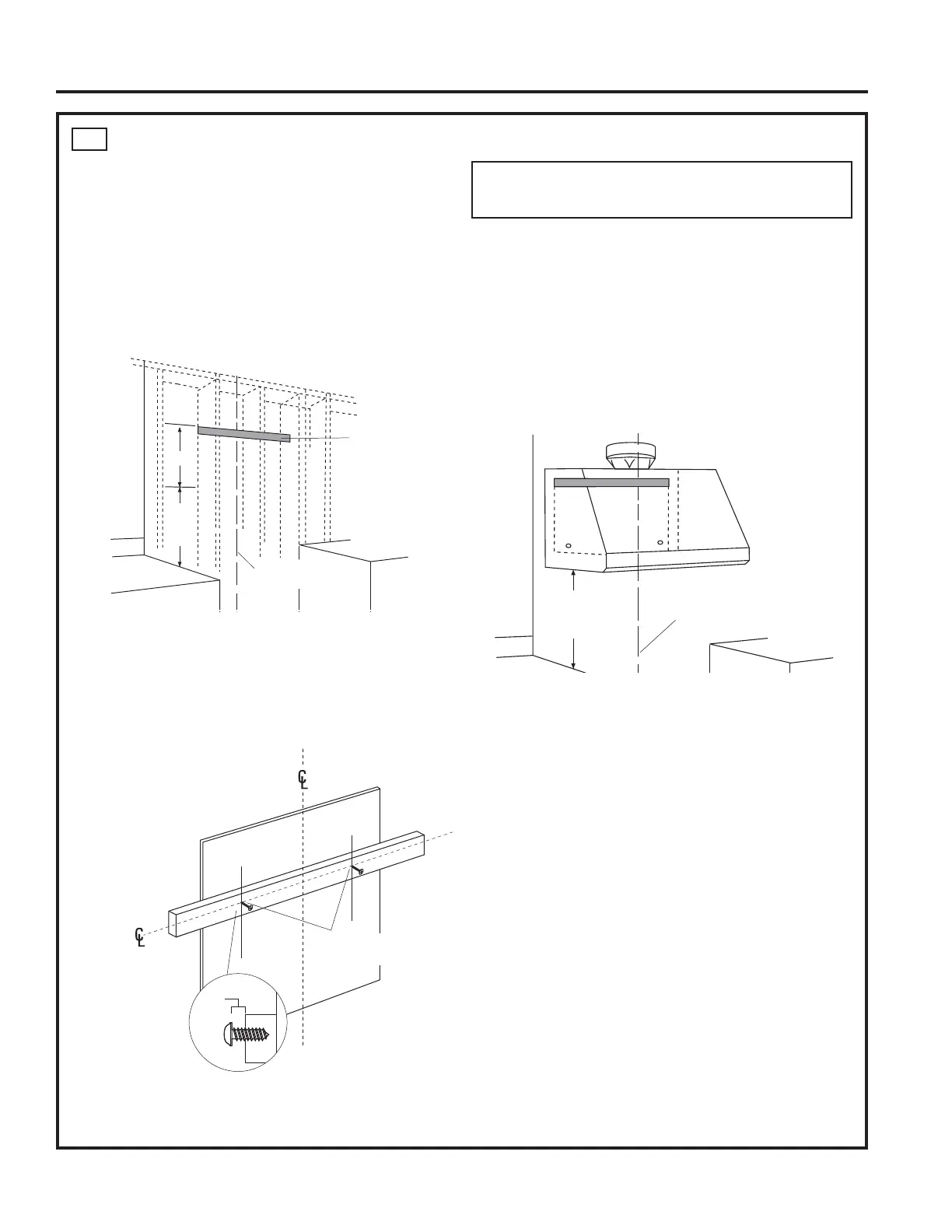

INSTALL HOOD ONTO WALL
SKIP THIS STEP IF INSTALLING BENEATH A
SOFFIT OR CABINET, GO TO STEP 2B.
Ŷ /RFDWHDWOHDVWYHUWLFDOVWXGVDWWKHZRRGVXSSRUW
Ŷ )RU´PRGHOVLIYHUWLFDOVWXGVFDQQRWEHORFDWHG
then install 2 screws through the wood support into
the stud that is located, vertically aligned with the
screws located ½” from the edge of the wood support.
Ŷ &HQWHUWKHVXSSOLHGZRRGVXSSRUWOHIWWRULJKWDQG
below the 15-3/8" marked line.
Ŷ 6HFXUHWKHZRRGVXSSRUWWRRUPRUHYHUWLFDOVWXGV
using at least 2 of the 4 supplied long screws. For the
30” model, you may need to add framing to existing
framing to secure the wood support to 2 studs.
IMPORTANT: Screws must penetrate at least 1” into
vertical studs. Countersink screws into support.
NOTE: The mounting screws
must remain in their original
shipping location. These
screws are positioned
to engage the
keyhole slots in
the back of the
hood.
Ŷ Adjust depth of original mounting screws in the
wood support until they protrude 1/4" forward. This
1/4" gap will provide clearance to hang the hood.
IMPORTANT: Framing must be capable of
supporting up to 150 lbs.
Ŷ 8VHGXFWWDSHWRVHDOWKHWUDQVLWLRQGXFWFRQQHFWLRQ
Check to be sure the damper moves freely.
Hang Hood On Wood Support
Ŷ /LIWWKHKRRGDQGKROGFORVHWRWKHLQVWDOODWLRQ
location. Route house wiring through the knockout
and into the junction box.
Ŷ 3ODFHWKHKRRGRYHUWKHZRRGVXSSRUW%HVXUHWKH
mounting screws engage the keyhole slots in the
back of the hood. Tighten the screws.
Ŷ ,QVWDOODGGLWLRQDOVFUHZVWRVHFXUHWKHKRRGWRWKH
wood support.
Ŷ 'ULOO´SLORWKROHVLQWRWKHWZRORZHUKROHV,IWKH
pilot hole enters a stud, use a washer and the long
wood screw. If the pilot hole does not enter a stud,
enlarge the hole to 3/8” to accept the wall anchor, and
use a washer and the screw from the wall anchor.
Centerline of
Installation
Space
15-3/8"
30"
to
36"
Wood
Support
1/4"
Gap
Original Mounting
Screws as Shipped
Centerline of
Installation
Space
30"
to
36"
