1749-7000313 Rev. 0
INSTALLATION INSTRUCTIONS
Installation Instructions

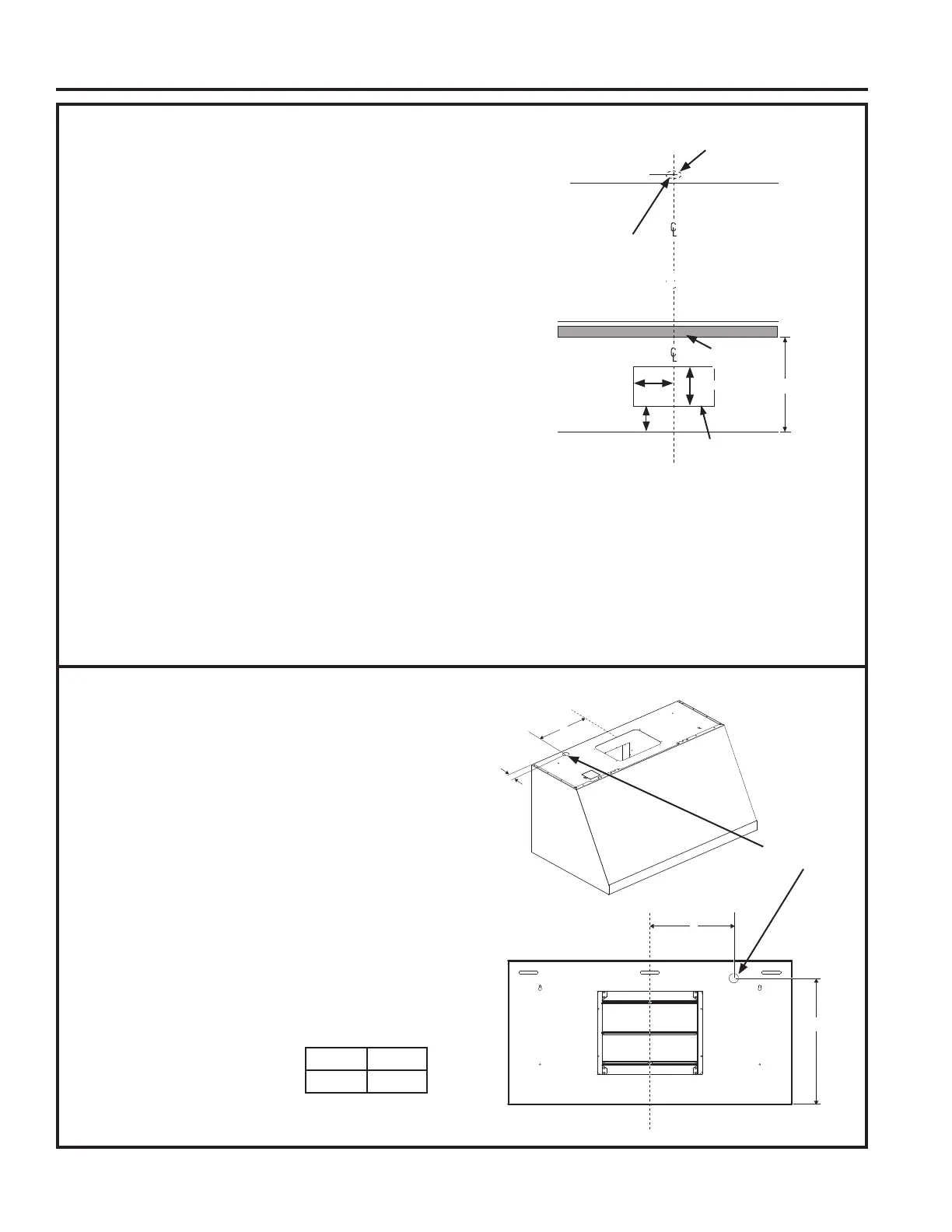

DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS
• This hood can be installed onto the wall or
underneath the soffit or cabinet.
• For installing the hood to soffit or cabinet, refer to
page 19 for alternate mounting method.
• Measure desired distance from the bottom of the
hood to the cooking surface, 24” minimum over
electric range or 30” minimum over gas range and
36” recommended maximum.
• Use a level to draw a horizontal line indicating the
bottom of the hood.
• Measure 16-3/4” up from the horizontal line indicating
the bottom of the hood. Draw another horizontal line
to indicate the bottom of the installation bar.
• Use a level to draw the cooktop or range centerline
location.
For Ceiling Ducting:
• If venting out the ceiling, extend the centerline
forward on the ceiling to the back wall.
- Measure 6-1/4” from back wall to mark center
point for an 8” diameter duct hole on the ceiling.
- Cut 8" dia. duct hole on the ceiling.
Venting Through a Soffit or Cabinet:
• Follow the same procedure for ceiling ducting to cut
the hole through the top of the soffit or cabinet.
For Ducting Through Rear Wall:
Note: Check to make sure back damper will not interfere
with studs, electrical or plumbing before making cut out.
• Back damper accessory UXBDA812 must be purchased
separately for venting through the rear wall.
• Measure 3-3/4” up along the centerline from the horizontal
line indicating bottom of the hood.
• Make an 10-1/2" x 13-1/4” cut out centered left to right
along the centerline.
House Wiring Location:
• The junction box is located inside the hood body on the left
side. See Illustrations for hood knockout locations.
House wiring may enter the junction box from the rear or the
top of the hood on the left side.
To route house wiring through the ceiling, soffit or
cabinet:
• Cut a hole approximately 1-1/4” dia. forward on the ceiling
at a distance (X) to the left of the centerline based on table
below.
To route house wiring through the wall:
Note: For back venting, the house wiring must be routed
through the rear knockout so it is hidden.
• Measure 15-3/4" from the bottom of the hood and mark
location.
• Cut a hole approximately 1-1/4” dia. at the marked location
at a distance (X) to the left of the centerline based on table
below.
• Remove top or rear knockout depending on your
installation.
Centerline to Wall
FOR CEILING VENT
DUCTING
Duct Hole
Top of Hood
Installation
Bar
16-3/4”
Bottom of Hood
FOR REAR WALL DUCTING
3-3/4”
6-5/8”
10-1/2”
X
1-1/4”
X
15-3/4”
Rear View
Top View
Models "X"
36" 10-1/2"
Junction box
knockout
