KOOK60 - KOOK80 - KOOK90 - SMART60 - SMART80 - FRIDA 80

9

LEGEND Fig. 9

7 Damper

• Old chimney flue with an inserted pipe of minimum Ø150 mm and with an external door which enables the chimney cleaning.

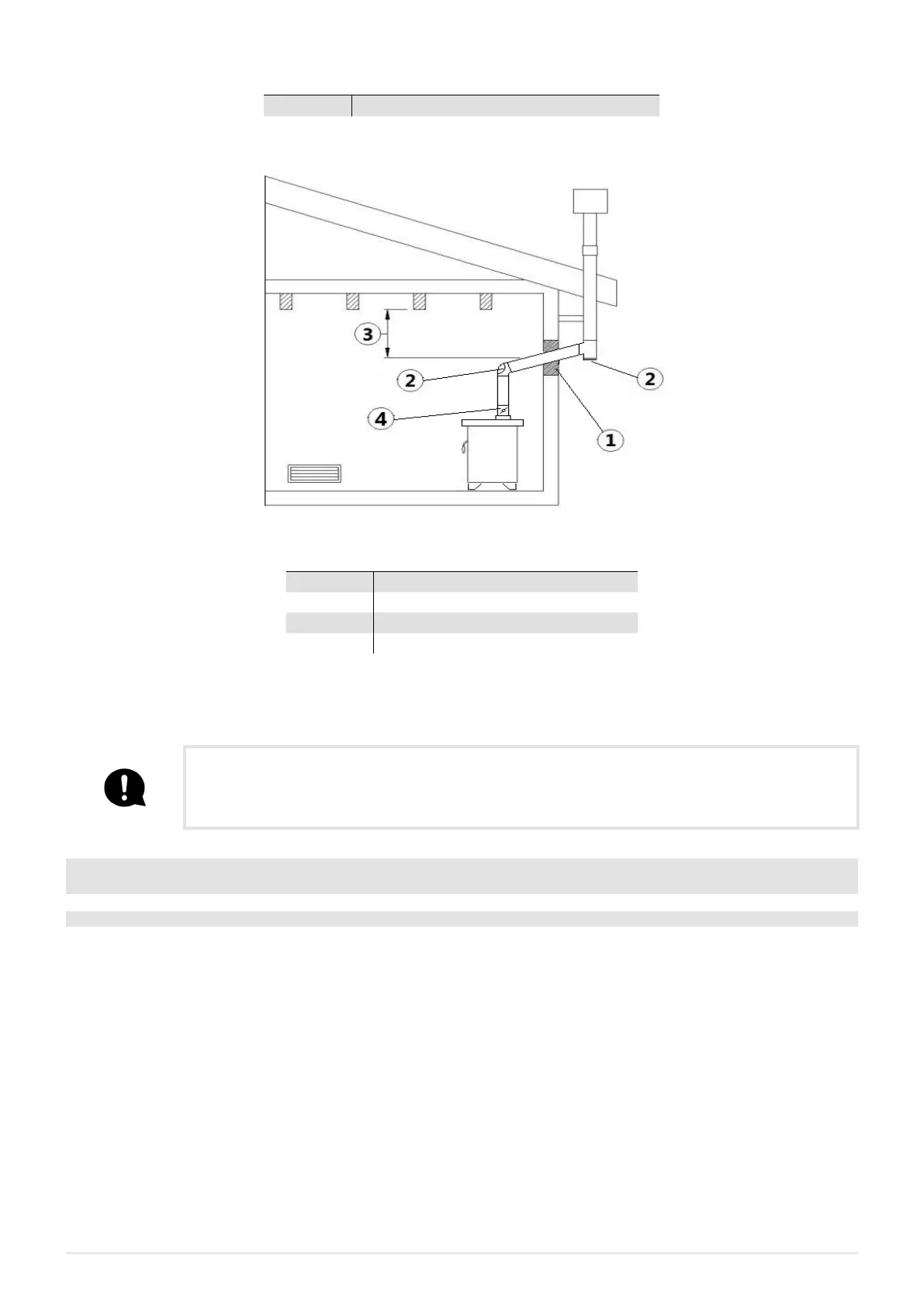

Fig. 10 - Example 3

LEGEND Fig. 10

1 Insulating material

2 Inspection plug

3 Minimum safety distance = 0,5 mt

4 Damper

• External chimney flue entirely made up of insulated stainless steel pipes, i.e. with double wall of minimum Ø150 mm: all must

be firmly attached to the wall. For chimney against wind effects please.

• Ducting system through T-unions which enables an easy cleaning without disassembling the pipes.

We recommend to check with your chimney flue manufacturer the safety distances which must be respected

and the type of insulating material. The aforesaid regulations are valid also for holes made on the wall (EN

13501 - EN 13063 - EN 1856 - EN 1806 - EN 15827).

6 INSTALLATION

6.1 INTRODUCTION

The heating system (generator + combustion air supply + combustion product expulsion system + any hydraulic/

aeraulic system) must be installed in compliance with the laws and regulations in force (*), and carried out by a

qualified technician, who must issue a declaration of conformity of the system to the system manager and shall

undertake full responsibility for final installation and consequent good operation of the product.

The manufacturer declines all responsibility in the event of installations that do not comply with the laws and regulations in force

and inappropriate use of the appliance.

In particular one must ensure that:

• the environment is suitable for installing the appliance (floor load-bearing capacity, presence or possibility of creating an ade-

quate electrical/hydrauic/aeraulic system when required, volume compatible with the appliance characteristics, etc.);

• the appliance is connected to a smoke expulsion system correctly sized according to EN 13384-1, which is resistant to soot fire

and which complies with the distances prescribed by the combustible materials indicated on the plate data;

• there is a suitable combustion air flow to the appliance;

• other combustion appliances or extraction devices installed do not cause a negative pressure of more than 4 Pa in the room

where the product is installed compared to the outside (only sealed appliances are allowed a maximum of 15 Pa of negative

pressure in the room).
