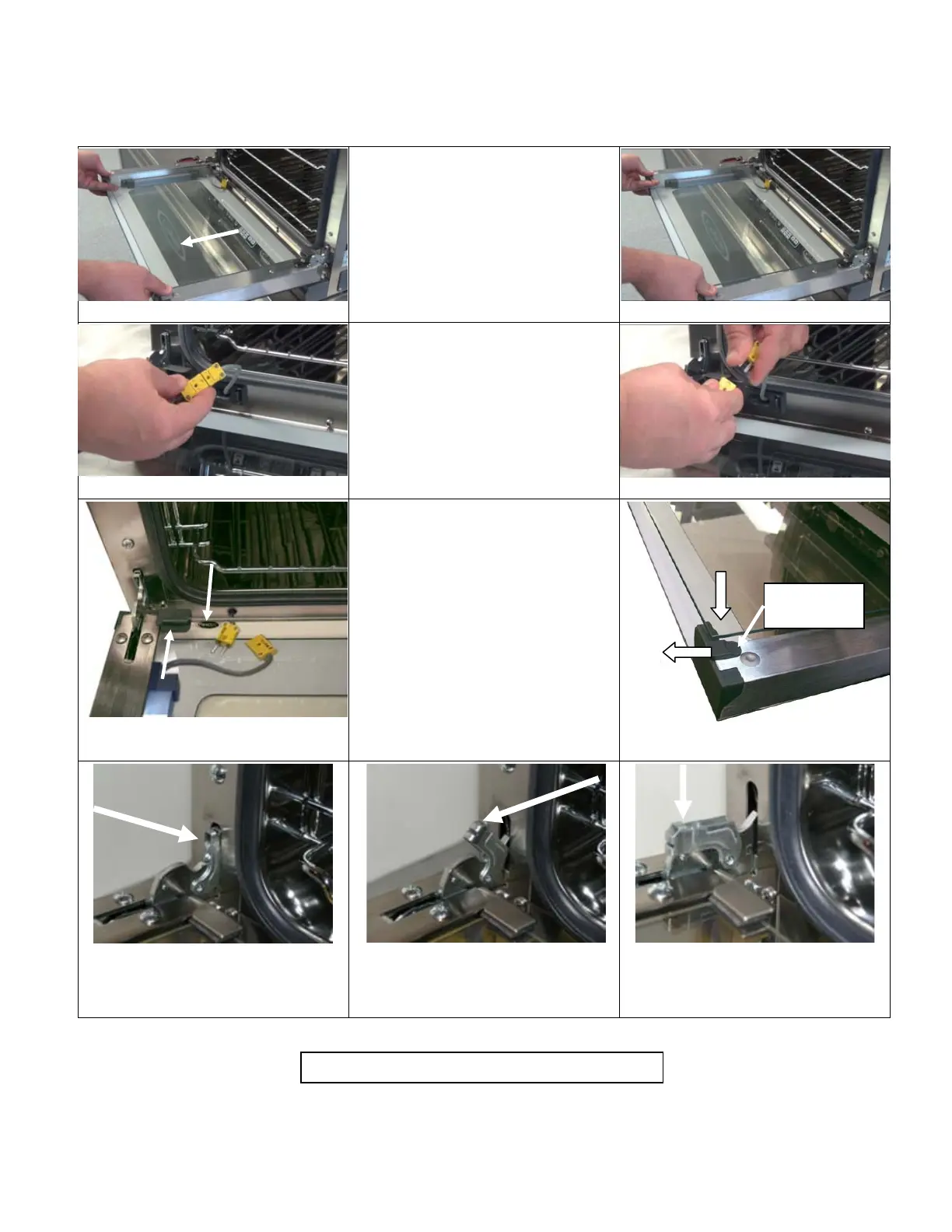

VI. Remove & Reattach The Door ***Take extra care when removing the oven door so as not to
damage the inner or outer glass – this includes allowing the glass to completely cool down before any
maintenance and/or cleaning is performed.***
Fig. A
1) Unplug the oven and allow to cool
down completely.
2). Open door completely as in Fig. A.
3) Remove inner door glass by pulling
both glass holder clips back (Fig. A) and
lifting the glass carefully up and back
towards you. Fig. B.
4) Place door glass gently on counter.
Fig. B
Fig. C
5) Unplug the yellow door light
connector by pulling the two sides apart
gently. Figs. C & D.
Fig. D
Fig. E
6) Replace the inner door glass by
positioning it over the open oven door
so that the oval logo on the glass is
facing down in the left back corner.
Fig. E.
Slide the back edge of the door glass into
the door glass slots at the bottom of the
door. Fig. E.
7) Lower the glass until it is resting on
the glass holder clips. Fig. F
8) Pull the glass holder clips back until
the glass drops into place in the door.
Then release the glass holder clips to
hold the glass in place.
Fig. F
Fig. G
Fig. H
9) Using a screwdriver or other object,
swing door safety locks down on both
sides as shown in Figs G-H-I.
Fig. I
Glass
holder clip
Door removal instructions continued on next page.
