BZBGEAR BG-AVTPG-8K PRODUCT MANUAL

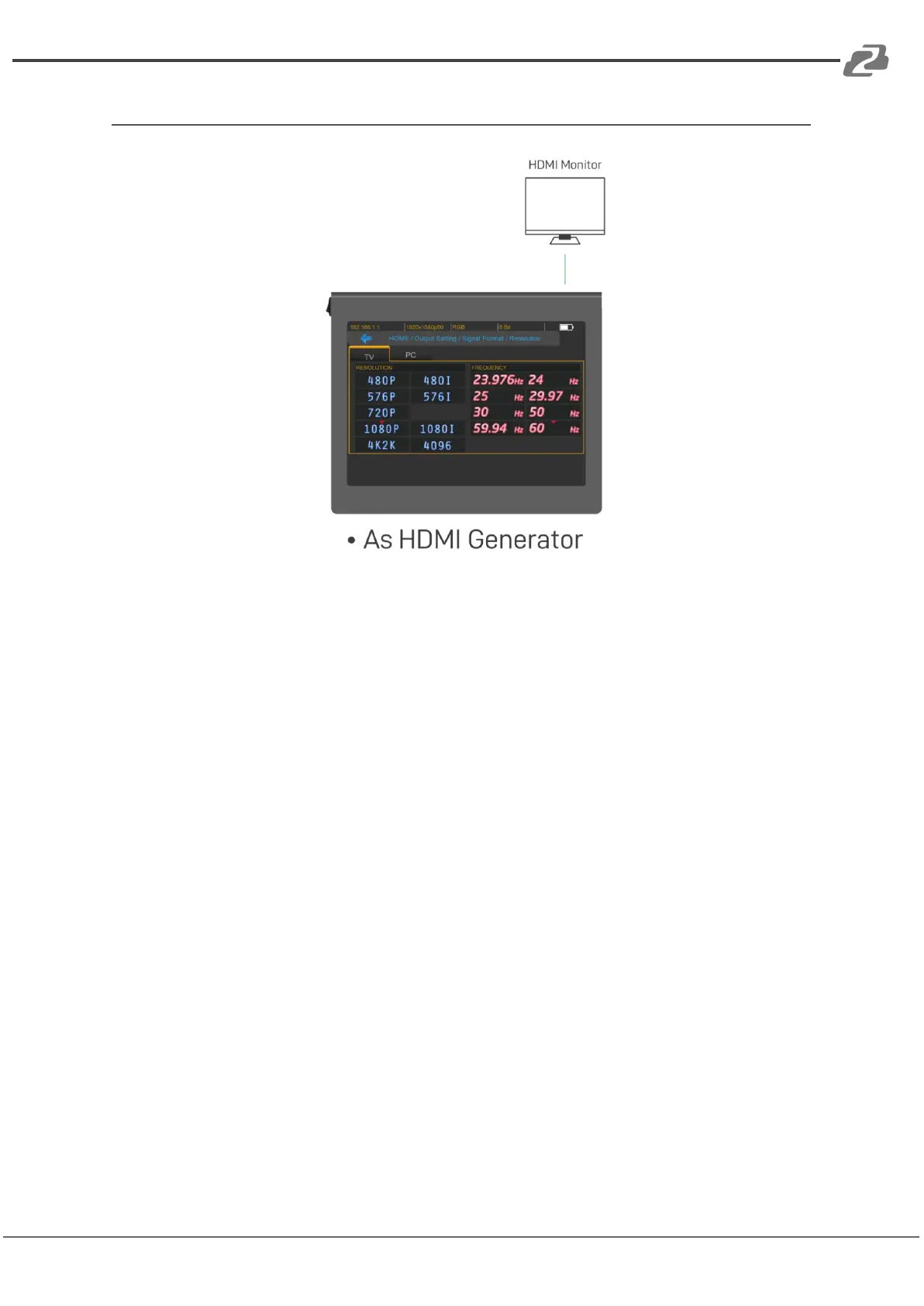

Signal Generator Mode
After making the physical connections between BG-AVTPG-8K and the display
device. Users can select different generator functions to display on the sink device
for testing purposes.
1. The “Signal Format” menu provides different signal resolutions, frequency,
and signal types (TV / PC) for the user to select.
2. Users can select the desired test pattern from the “Video Pattern” menu.
Users can add their own patterns and custom test images if desired (see the
upgrade section for more details).
3. The “PCM Audio Tone” menu allows users to test audio on HDTVs or other
types of A/V receivers. The “PCM SINE WAVE” menu is used to set up the
bits per sample, sample rate, level, and audio channels.
To test HDCP on an HDMI equipped display please see the HDCP test section.
