WARNING
Never adjust the light range of your headlight
1
while cycling! This may result in
serious falls and injuries.
!
No inverted mounting: Mounting the headlight in an inverted orientation will turn the beam
pattern upside down. The light emitted will therefore be in violation of the traffic regulations and
oncoming traffic is likely to be blinded. In addition, this may lead to damage caused by excessive
water ingress, the consequences of which are excluded from our warranty.
6.3. IQ-XL connection and rear light
Headlight IQ-XL:
Two 2-core cables of different lengths are fitted in the headlight
1
. The long cable should be
connected to the hub dynamo (shorten if necessary).
!
For best contact, twist the cable ends before insertion into the hub dynamo connector.
Connect the short cable (with faston connectors) to the rear light using the cable fitted on the
bike. If the rear light cable is not used, the plugs must be insulated to prevent malfunctions.
NOTICE
Cables on the headlight
1
must never be cut off completely. The IQ-XL headlight
1
is only suitable for operation with hub dynamos. Connection to a DC voltage source is not
permitted.
NOTICE
Always ensure correct polarity:
Connect the headlight to the hub dynamo with the longer hard-wired 2-core cable:
black cable = power (+); black/white cable = earth (-)
6.2. Headlight alignment
Align the bicycle headlight
1
in a way to ensure that oncoming traffic is not blinded. On a completely
flat road, the horizontal light edge (cut-off line) must always be visible on the road!
Attention: Ensure a non-blinding orientation of the beam pattern

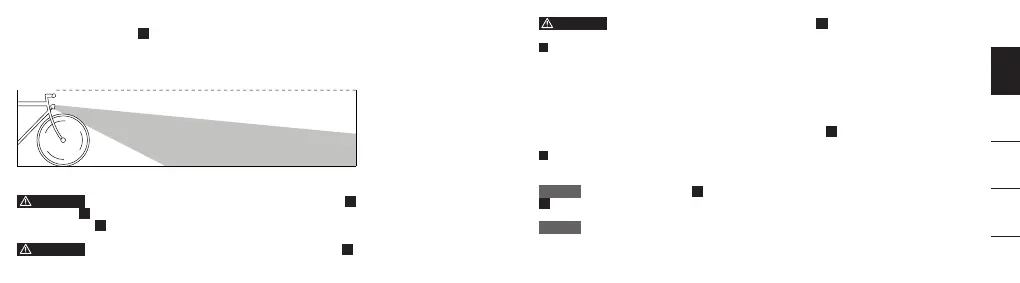

Beam cut line
Image: correct beam orientation with light switched on
WARNING
Do not use the bicycle if the light beam of your headlight
1
is misaligned or
the headlight
1
is too loose. Blinding oncoming traffic can cause accidents. Before aligning the
bicycle headlight
1
, loosen the bracket retaining screw first. Make sure to retighten this screw again
afterwards.
WARNING
Never look directly into the light of the bicycle headlight
1
when switched on.
