Care must be taken during installation. Avoid impacts or falls. The lock
should not be greased or oiled.

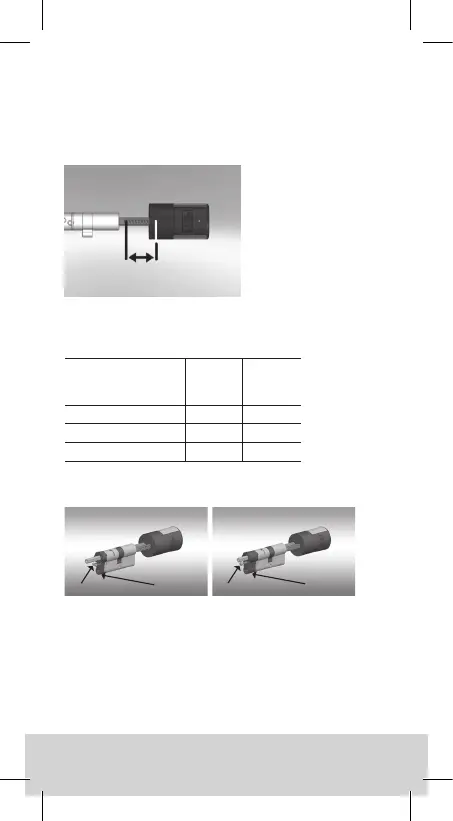

When installing the cylinder, proceed as follows:
1 Take a rough measurement of the door thickness (incl. ttings)
2 Pull the outer knob from the shaft, move the inner knob over the
detent system (spacing 2.85 mm) to the required dimension.
Inner knob
30 mm adjustment path
Schematic illustration
Inner knob
3 Depending on the door thickness, you can af x an appropriate adapter
on the outer side, in order to improve the path for the emergency key.
The following combinations are possible:
Space detent bolt/
tting (mm) on the
outer side
Adapter 1 Adapter 2
< 43 – –
X: Selection
–: not provided
44 – 53 X –
54 – 60 X X
Tab. 1: Space detent bolt/mounting [mm] on the outer side and the
required adapter.
2.9 × 16 Adapter 2
M2 × 10 Adapter 1
Systematic illustration of adapter xing
18 | English secuENTRY pro 7116 Duo
