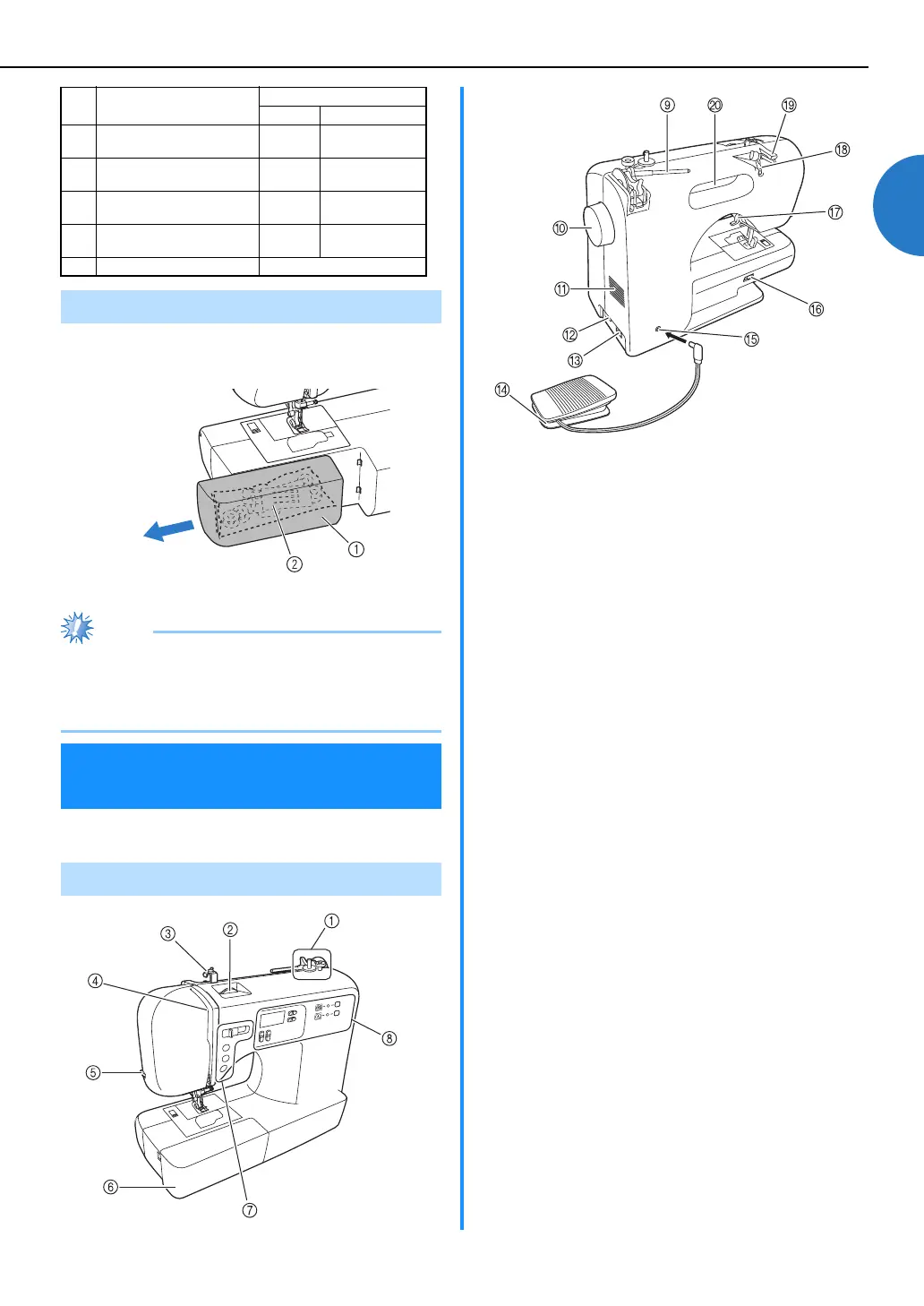

The accessories are stored in a compartment inside the
flat bed attachment. Slide the flat bed attachment to the
left to open it.
a Flat bed attachment
b Storage compartment
Note
● Put the accessories in the bag, and then store the
bag inside the compartment. If the accessories are
not in a bag, they may fall out, and be lost or
damaged.
The illustrations in this operation manual may differ
from the actual machine.
a Bobbin winder (page 10)
b Upper tension-control dial (page 26)
c Bobbin-winding thread guide and pretension disc
(page 10)
d Thread take-up lever (page 16)
e Thread cutter (page 26)
f Flat bed attachment with accessory compartment (page 5
and 28)
g Operation buttons (page 6)
h Operation panel (page 6)
i Spool pin (page 7, 10 and 15)
j Handwheel
This is used to manually raise and lower the needle.
k Air vent
This vent allows the air surrounding the motor to circulate.
Do not cover the air vent while the sewing machine is
being used.
l Main power and sewing light switch (page 8)
m Jack/socket connector (page 8)
n Foot controller (page 8)
o Foot controller jack/socket (page 8)
p Feed dog position lever (page 35 and 41)
q Presser foot lever (page 15)
r Thread guide (page 11 and 16)
s Thread guide cover (page 11 and 16)
t Handle
Carry the sewing machine by its handle when transporting
the machine.
No. Part Name
Part Code
Americas
Others
1 Walking Foot SA140
F033N:
XG6623-001
2 Quilting Foot SA129
F005N:
XC1948-052
3 1/4-Inch Quilting Foot SA125
F001N:
XC1944-052
4 Quilting guide SA132
F016N:
XC2215-052
5 Eyelet punch XZ5051-001
Accessory compartment
NAMES OF MACHINE PARTS
AND THEIR FUNCTIONS
The main parts
