ZB80ML1 n ZB110ML1 Installation Guide
Page 9
1
2
2
1
3
4

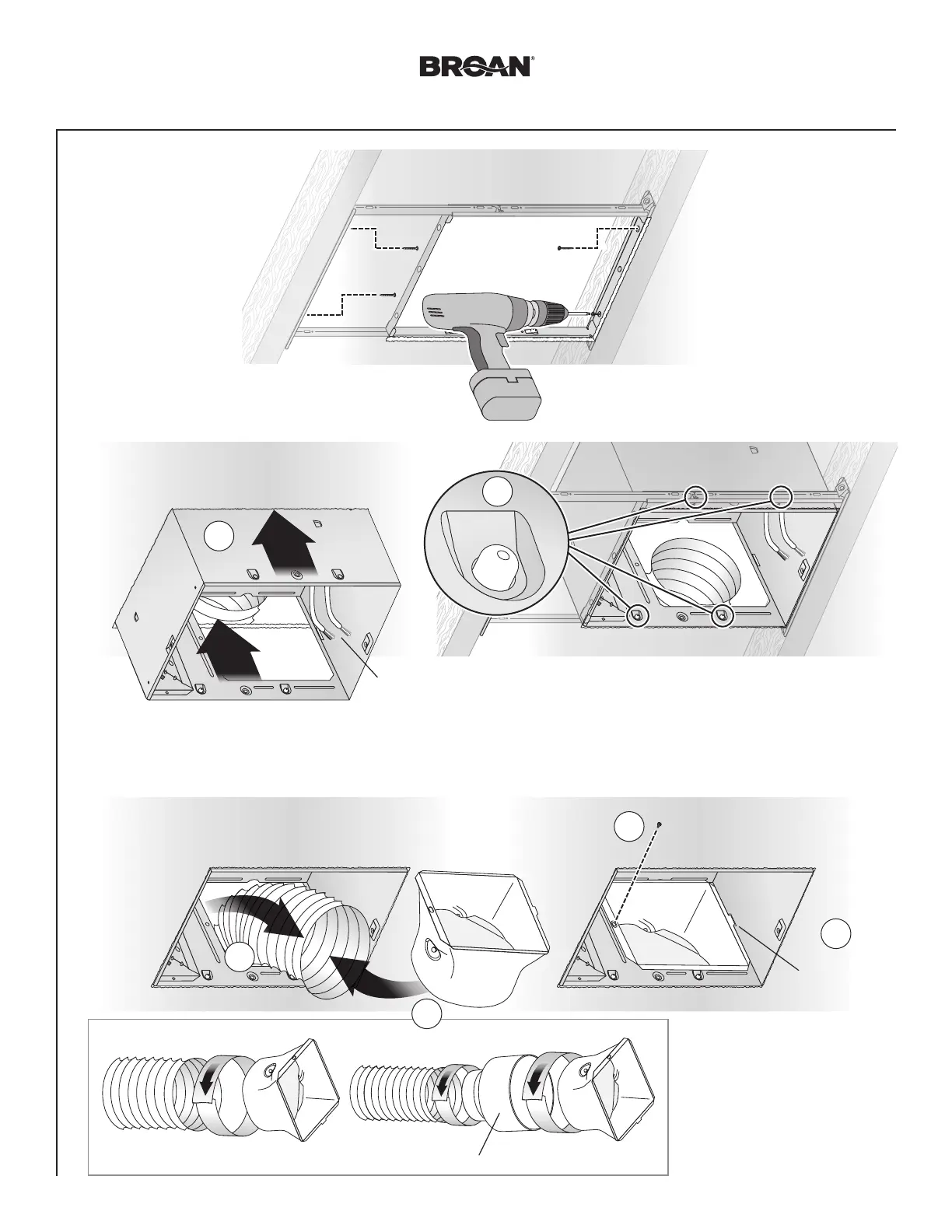

Retrofit Installation
Screw from
Parts Bag
Screws set
aside
in Step 7
Pull existing wiring into
Housing as it is inserted
into Mounting Frame
Pull existing
ductwork
into Housing
Insert tab into
slot inside
Housing
10
Attach Ducting and Duct Connector
8
Secure
Mounting
Frame
9
Snap-in Housing
snap!
6" to 4" Reducer (for Model ZB80ML only)
Tape
Tape
Tape
6" Ducting
4" Ducting
