XB110 Installation Guide
Page 10
2
1
4
5
6
3
Retrofit Installation
11

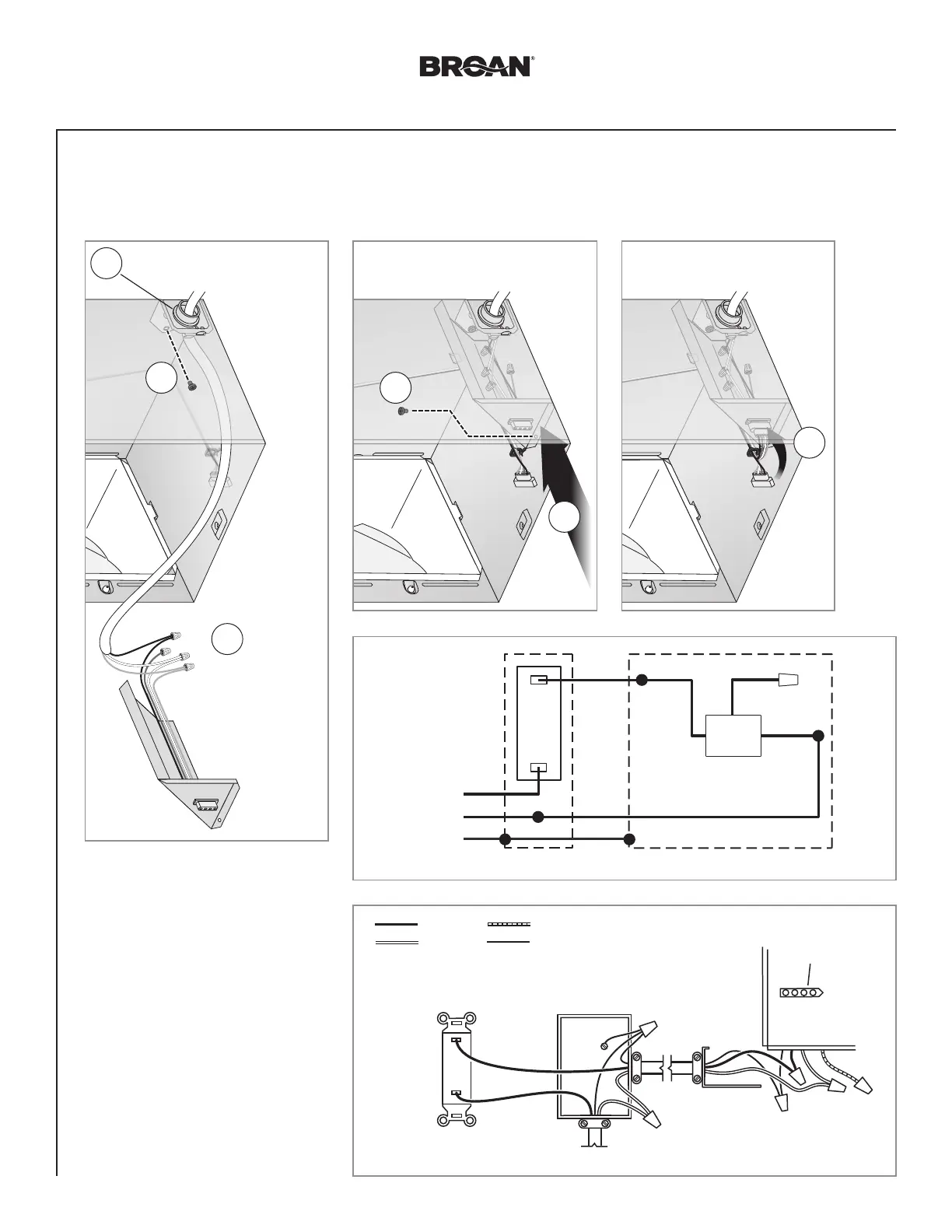

Install Knockout Plate, Connect Wires and Reinstall Wiring Panel
Screw from
Parts Bag
Attach cable clamp to Knockout
Plate. Knockout Plate mounts to
inside of Housing and may be
oriented as
desired.
Connect
wires
Screw set
aside in
Step 6
LINE
IN
GRD
WHT
BLK
GRD
WHT
BLK BLK RED
ON/OFF
SWITCH
(purchase separately)
FAN
WHT
UNITSWITCH BOX
KNOCKOUT
PLATE
RECEPTACLE
120 VAC LINE IN
SWITCH BOX
BLACK
WHITE
RED
GROUND (green or bare)
ON/OFF
SWITCH
LINE
IN
GRD
WHT
BLK
GRD
WHT
BLK BLK RED
ON/OFF
SWITCH
(purchase separately)
FAN
WHT
UNITSWITCH BOX
KNOCKOUT
PLATE
RECEPTACLE
120 VAC LINE IN
SWITCH BOX
BLACK
WHITE
RED
GROUND (green or bare)
ON/OFF
SWITCH
• Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag.
• Connect wires as shown in wiring diagram.
