XB110HL1 Installation Guide
Page 10
2
1
4
5
6
3

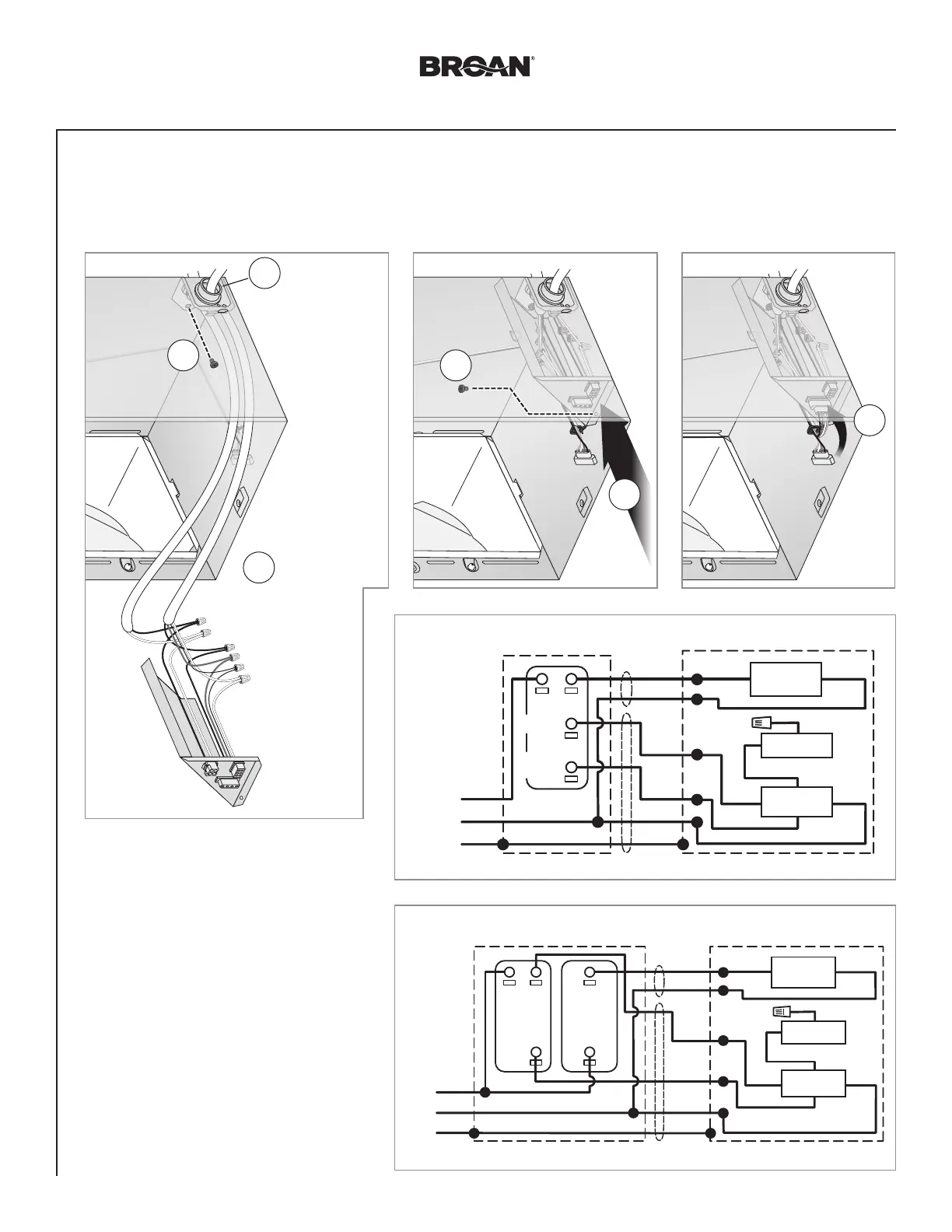

Retrofit Installation
11
Install Knockout Plate, Connect Wires and Reinstall Wiring Panel
Screw from
Parts Bag
Connect wires
Fan
Light
Screw set
aside in
Step 6
• Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag.
• Connect wires as shown in wiring diagram.
Attach cable
clamps to
Knockout Plate.
Knockout Plate
mounts to inside of
Housing and may
be oriented
as desired.
• See OPERATION section on page 12 for
details.
• SENSOR/CONTROL switch allows humidity
control to be turned on for automatic
operation and off for fan cleaning and
maintenance purposes.
• Toggle mode can be used to manually turn
fan on.
• SENSOR/CONTROL switch may be located
where it is not easily accessed for everyday
usage; it may need to be labeled and located
where it can’t be turned on without being
seen from fan to comply with local and
national codes.
LINE
IN
GRD
WHT
BLK
GRD
WHT
WHT
WHT
BLK
BLK BLU
ORG
LIGHT
SWITCH
FAN
LIGHT
UNITSWITCH BOX
RED
WHT
14/2
14/3
MANUAL
ON
SENSOR
CONTROL
BLK
BRN
SENSOR/
CONTROL
LIGHT WITH DIMMER SWITCH
LIGHT WITH ON/OFF SWITCH
LINE
IN
GRD
WHT
BLK
GRD
WHT
WHT
WHT
BLK
BLK BLU
ORG
MANUAL
ON
FAN
LIGHT
UNITSWITCH BOX
RED
WHT
14/2
14/3
SENSOR
CONTROL
BLK
BRN
DIMMER
SWITCH
SENSOR/
CONTROL
