RB110L1 Installation Guide
Page 4
3
1
4
2
1
2
3

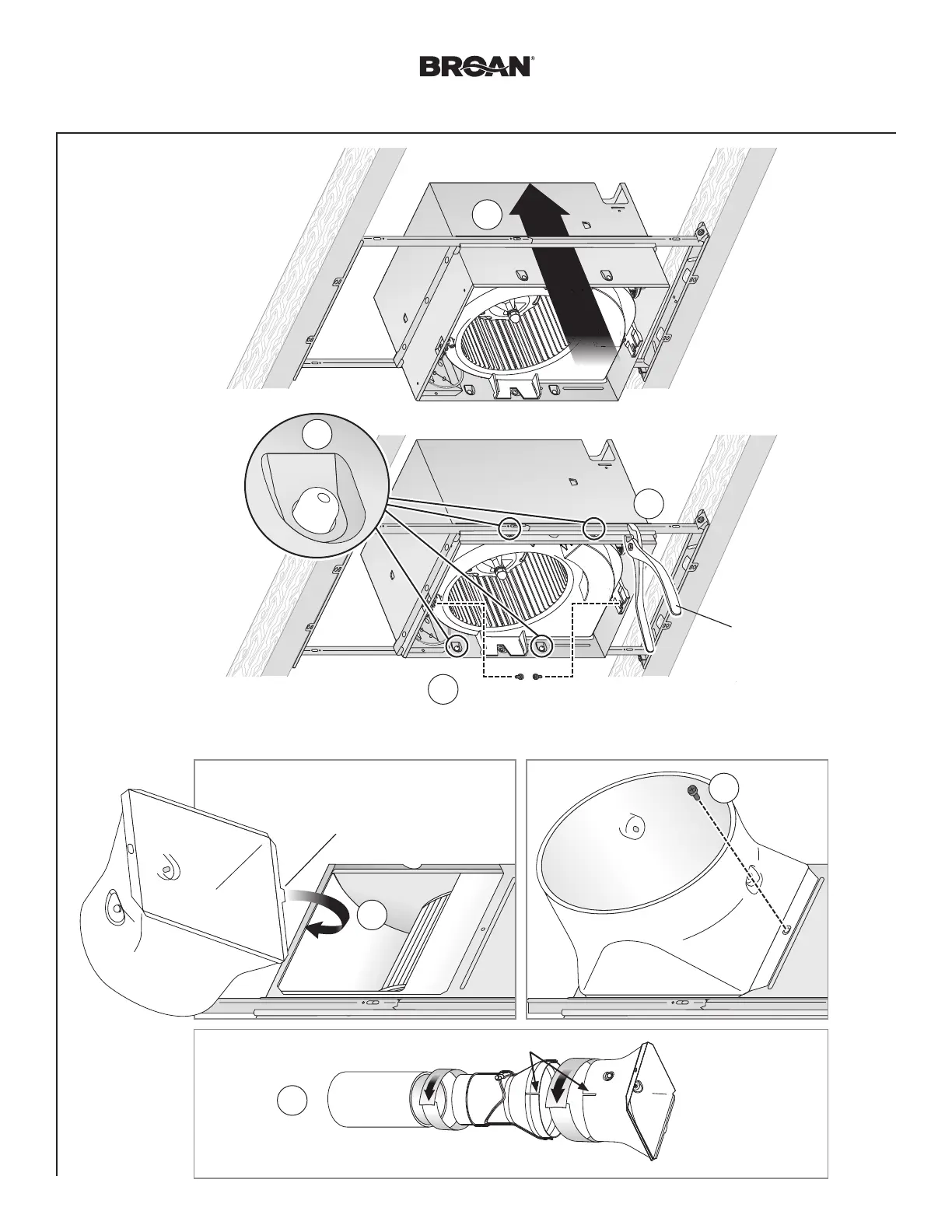

New Construction Installation
3
Snap-in and
Secure Housing
Position Housing
between joists and
crimp channel on both
sides of Mounting Frame
to lock Housing in place.
Do not crimp Housing.
Screws from Parts Bag
snap!
3
1
4
2
1
2
3
4
Attach Flange, Transition and Ducting
Top and bottom flanges
go outside Housing
Insert tab into slot
inside Housing
Screw from
Parts Bag
Transition
Flange
Tape
Tape
4" Ducting
Align
