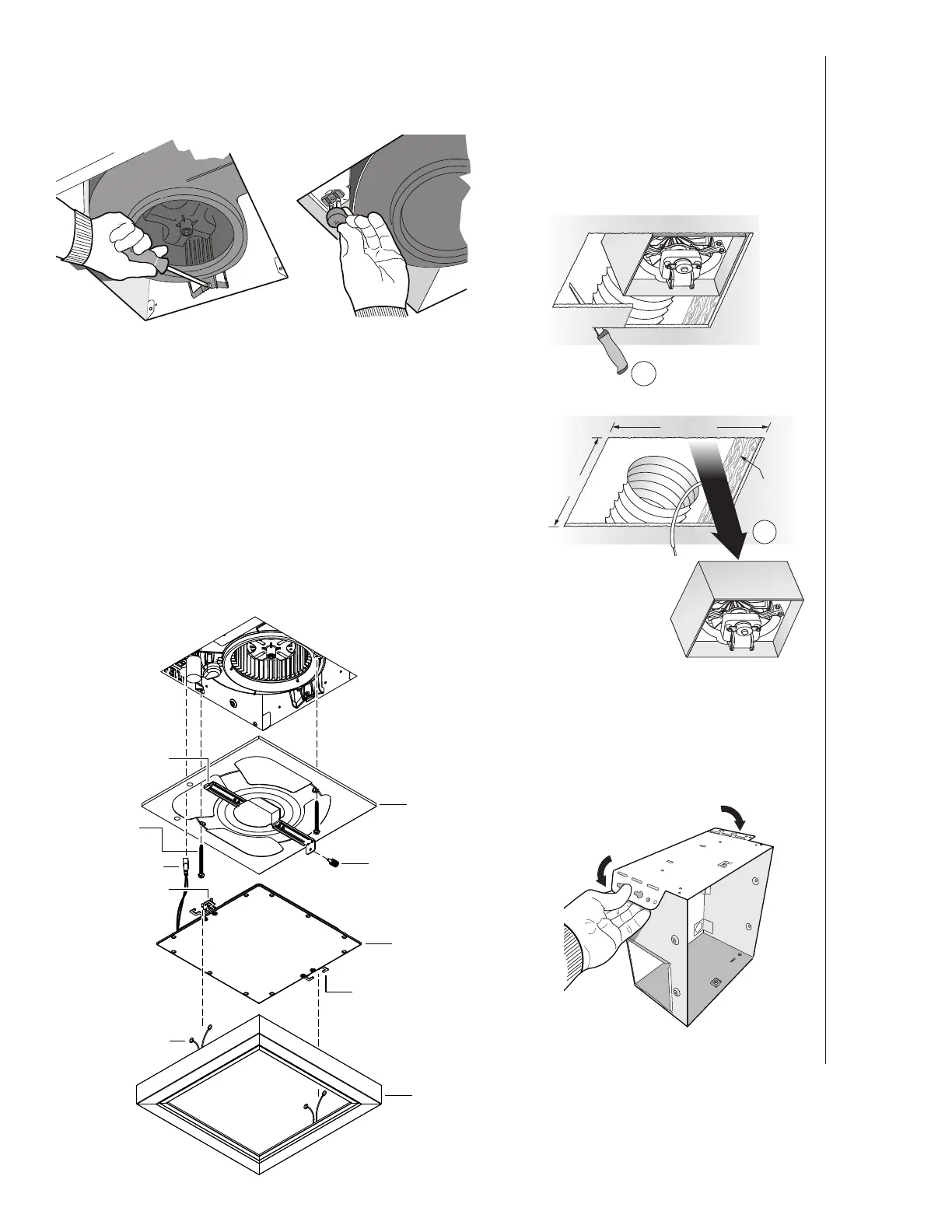

INSTALLATION AND USE & CARE INSTRUCTIONS
INSTALLATION
5
10. Finish ceiling, then install grille.
Attach MOUNTING PLATE to housing with (2) SCREWS, using the
GRILLE BACKETS installed in step 4.
Connect LIGHT PANEL PLUG to receptacle in corner of housing.
Place LIGHT PANEL SLOT over HOOK on MOUNTING PLATE.
Swing opposite side of LIGHT PANEL up to MOUNTING PLATE
and secure with ATTACHMENT SCREW.
Choose the GRILLE FRAME color you desire from the three
frames included (the grille frame option is for AER110LTK and
AERN110LTK). Squeeze (2) GRILLE SPRINGS and insert them into
(2) GRILLE SPRING TABS.
Push GRILLE FRAME up against the ceiling.
9. Install blower.
Re-install blower. Secure blower with (2) screws from parts bag and
plug blower into black receptacle.
5. Remove old fan.
Enlarge ceiling opening (if necessary)
to 9¾” (parallel to joist) by 10½”
(perpendicular to joist). Leave ductwork
and wiring in place.
6. Fold mounting ears flat
against housing.
RETROFIT
2
10½-in.
9¾-in.
JOIST
1
MOUNTING
PLATE
LIGHT
PANEL
GRILLE
FRAME
ATTACHMENT
SCREW
MOUNTING
PLATE
ATTACHMENT
SCREW (2)
LIGHT PANEL PLUG
HOOK
SLOT
GRILLE
SPRINGS (2)
GRILLE SPRING
TABS (2)
