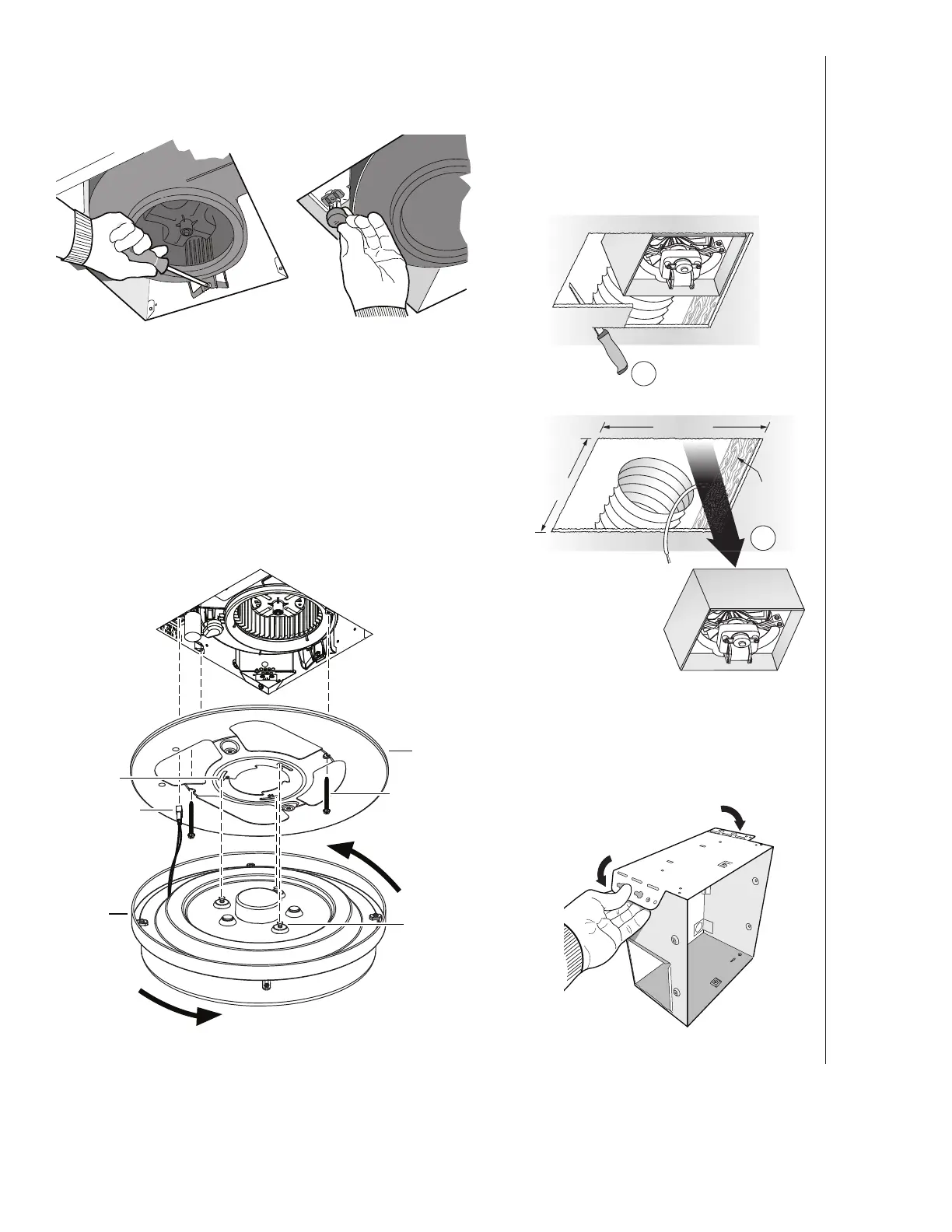

INSTALLATION AND USE & CARE INSTRUCTIONS
INSTALLATION
5
9. Install blower.
Re-install blower. Secure blower with (2) screws from parts bag and
plug blower into black receptacle.
5. Remove old fan.
Enlarge ceiling opening (if necessary)
to 9¾” (parallel to joist) by 10½”
(perpendicular to joist). Leave ductwork
and wiring in place.
6. Fold mounting ears flat
against housing.
RETROFIT
2
10½-in.
9¾-in.
JOIST
1
10. Finish ceiling, then install grille.
Attach MOUNTING PLATE to housing with (2) SCREWS, using
the GRILLE BACKETS installed in step 4.
Connect LIGHT PANEL PLUG to receptacle in corner of
housing.
Line up (3) STUDS on GRILLE FRAME with (3) KEYHOLE
SLOTS on MOUNTING PLATE. Rotate GRILLE FRAME to
secure in place.
MOUNTING
PLATE
GRILLE
FRAME
MOUNTING
PLATE
ATTACHMENT
SCREW (2)
LIGHT PANEL
PLUG
STUD (3)
KEYHOLE
SLOT (3)
