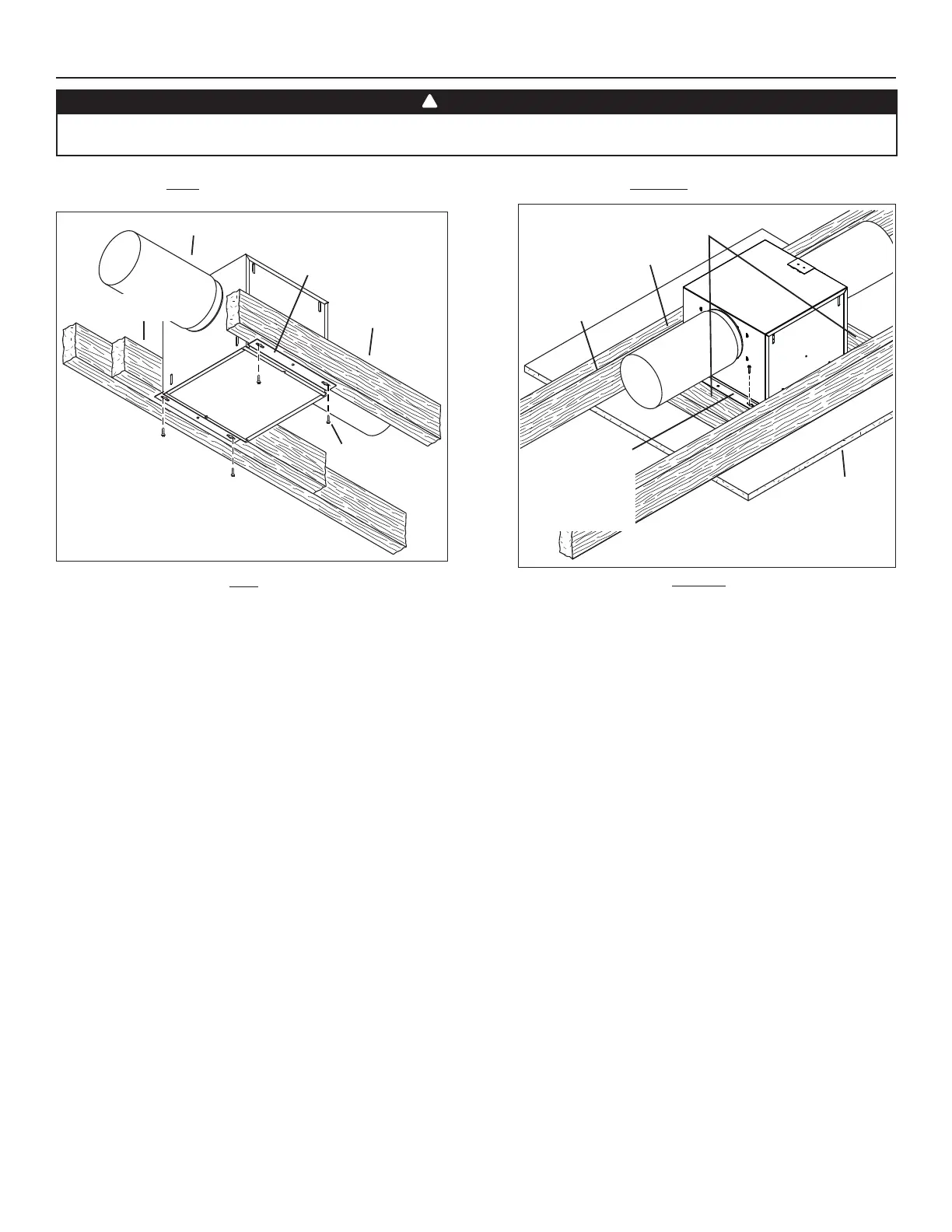

2. TYPICAL INSTALLATION
2.1 MOUNTING (NEW FRAME CONSTRUCTION) 2.2 MOUNTING (EXISTING FRAME CONSTRUCTION)
WARNING
The wearing of safety glasses and gloves is recommended when installing, maintaining or cleaning the unit to reduce the risk of injury
that could be caused by the presence of thin metal and/or moving parts.
!
Installed in new construction.
CEILING JOIST
(16” centers shown)
8” ROUND DUCT
MOUNTING
SCREW
Blower factory-shipped
in straight through
discharge position.
Mounting brackets
factory-shipped in position
for 1/2” ceiling material.
ADDITIONAL
1½” FRAMING
Installed in existing construction.
8” ROUND DUCT
FINISHED
CEILING
MATERIAL
CEILING JOIST
(16” centers
shown)
2 X 4 FRAMING
(wide side down)
MOUNTING
BRACKETS
(Attached to
opposite sides
of housing &
upside-down)
