3. MOUNTING OPTIONS
Use 1/4-20 hex. nuts to secure mounting brackets to housing. Loosen and re-tighten or remove and replace nuts as necessary for desired
mounting bracket position.
12¼"
1½"
to
2½"

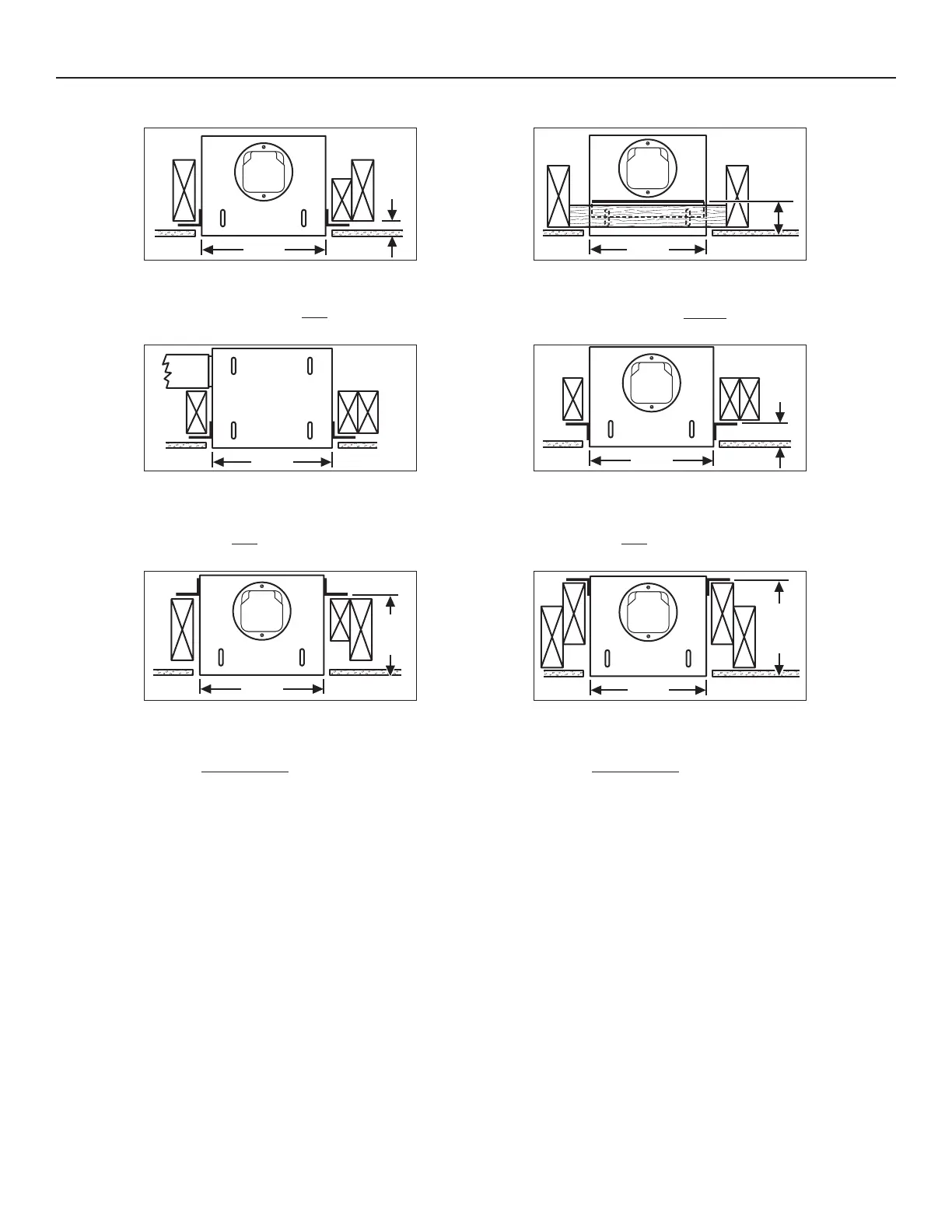

INSTALLATION FROM ABOVE FINISHED CEILING
12¼"
1
1
/
8"
MAX.
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
Mounting brackets in
factory-shipped position.
(Outlet parallel to joists.) (New construction)
Mounting brackets flipped over and
mounted to outlet sides of housing.
(Outlet parallel to joists.) (Existing construction)
12¼"
INSTALLATION WITH DUCTWORK
RUNNING ACROSS JOISTS
Mounting brackets mounted to outlet
sides of housing.
(Outlet perpendicular to joists.)
(New construction)
12¼"
1
1
/
2"
to
2
1
/
2"
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
Mounting brackets flipped over to give
approx. 1” more clearance.
(Outlet parallel to joists.)
(New construction)
12¼"
9
1
/
2"
to
10
1
/
2"
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
12¼"
10
3
/
4"
to
11
3
/
4"
INSTALLATION FROM ABOVE FINISHED CEILING
Mounting brackets flipped over and
mounted to top of sides of housing.
(Outlet parallel to joists.)
(New or existing construction)
Mounting brackets mounted to top of
sides of housing.
(Outlet parallel to joists.)
(New or existing construction)
