4. WIRING
WARNING
Electrical wiring must be done by a quali ed person(s) in accordance with all applicable codes and standards, including re-rated
construction codes and standards.
!

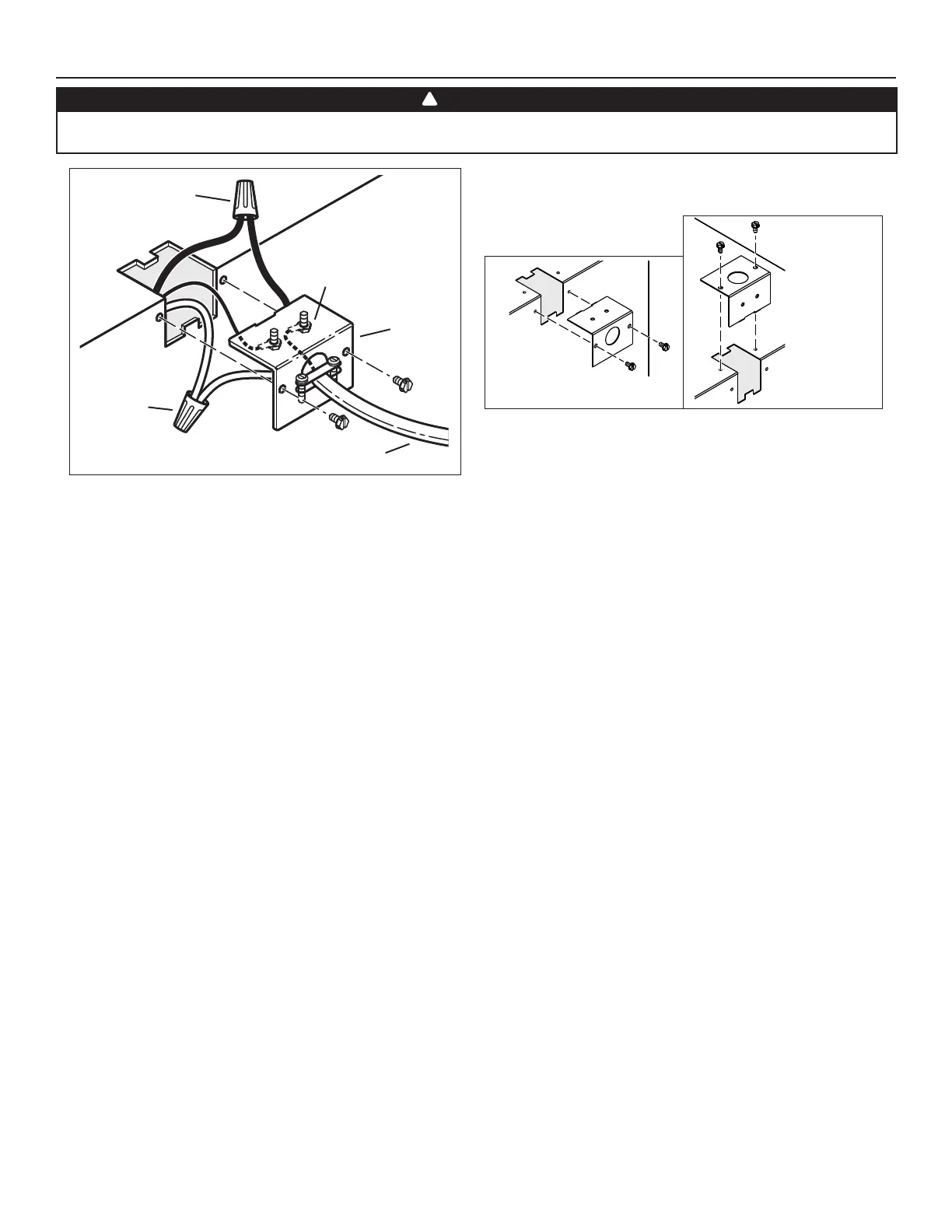

WIRING
PLATE
WHITE
TO
WHITE
BLACK
TO
BLACK
TOP / BACK
OF HOUSING
LINE IN
GROUND TO
WIRING PLATE
Ventilator can be wired from outside of housing.
Use UL approved connectors to wire per local codes.
WIRING PLATE POSITION
Wiring plate mounts to side or top of housing.
HORIZONTAL POWER
CABLE CONNECTION
VERTICAL
POWER CABLE
CONNECTION
