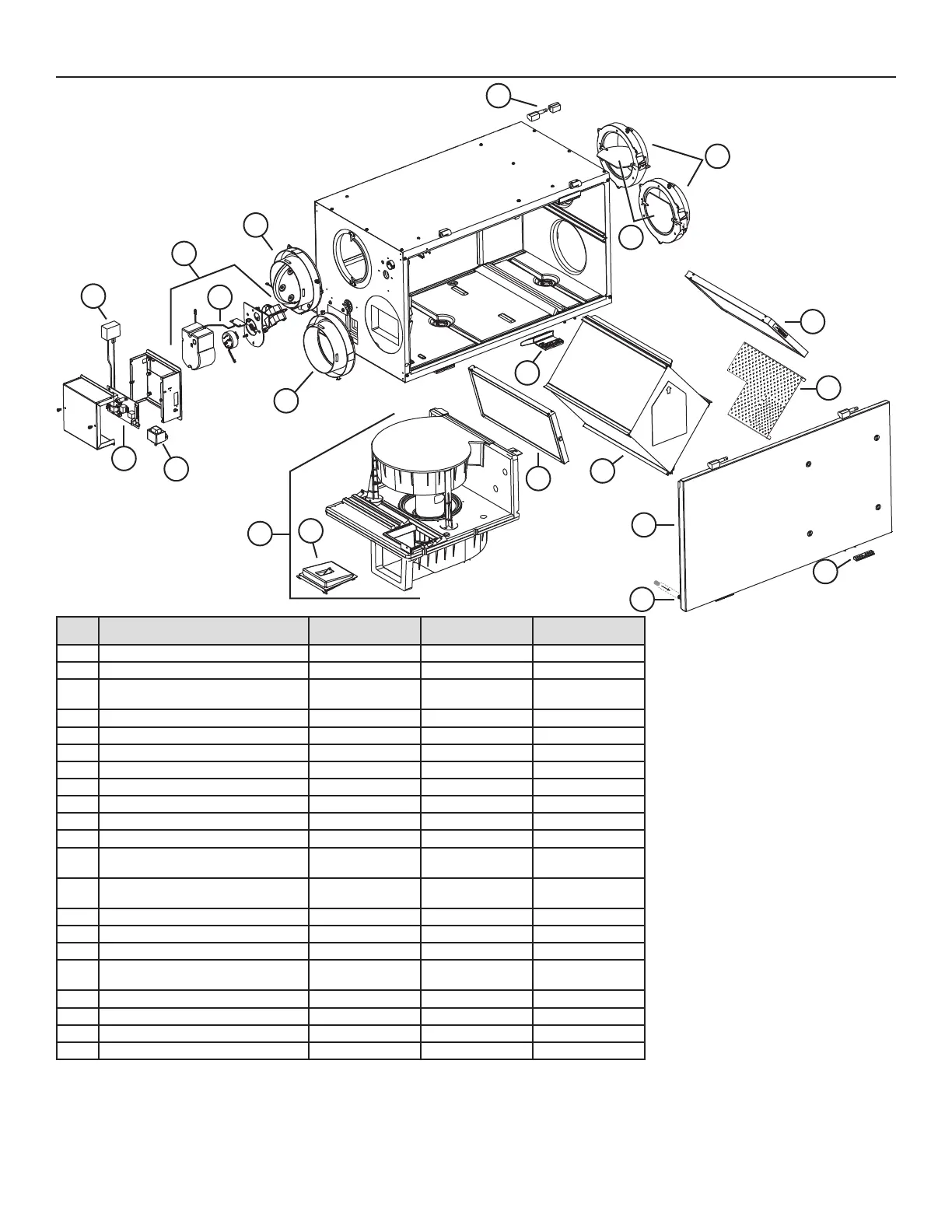

8. SERVICE PARTS

ITEM DESCRIPTION HRV150S HRV190S ERV180S

1 Hinge assembly kit SV13036 SV13036 SV13036

2 Damper supply port assembly SV17245 SV17245 SV17245

Damper system actuator

(including no. 4)

SV17235 SV17235 SV17235

4 Thermistor kit SV17242 SV17242 SV17242

5 Capacitor 7.5 µF SV17240 SV17240 SV17240

6 Electronic board SV60809 SV60809 SV60812

7 Transformer SV17244 SV17244 SV17244

8 Double collar port SV60818 SV60818 SV60818

9 Blower assembly (including no. 10) SV60804 SV60805 SV60806

10 Square damper kit SV17243 SV17243 SV17243

11 Magnet switch SV19060 SV19060 SV19060

Door assembly

(including hinges and latches)

SV63500 SV63500 SV63501

Door latches (keeper)

and screws

SV00887 (2)

SV00601 (4)

SV00887 (2)

SV00601 (4)

SV00887 (2)

SV00601 (4)

14 Diffuser SV60822 SV60822 SV62756

15 Filter kit SV60800 SV60800 SV60799

16 Core SV60801 SV60803 SV16582

Door latches

and screws

SV00886 (2)

SV00601 (4)

SV00886 (2)

SV00601 (4)

SV00886 (2)

SV00601 (4)

18 Balancing damper SV02253 SV02253 SV02253

19 Balancing double collar port SV02256 SV02256 SV02256

* Terminal connector SV16416 SV16416 SV16416

* Hardware kit SV20510 SV20510 SV20606

REPLACEMENT PA RTS AND REPAIRS

In order to ensure your ventilation unit remains in good working condition, you must use Broan-NuTone LLC genuine replacement parts only. The Broan-NuTone LLC

genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard

of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing.

Also, Broan-NuTone LLC recommends to contact a certified service depot for all replacement parts and repairs.

* Not shown.

VL0050
