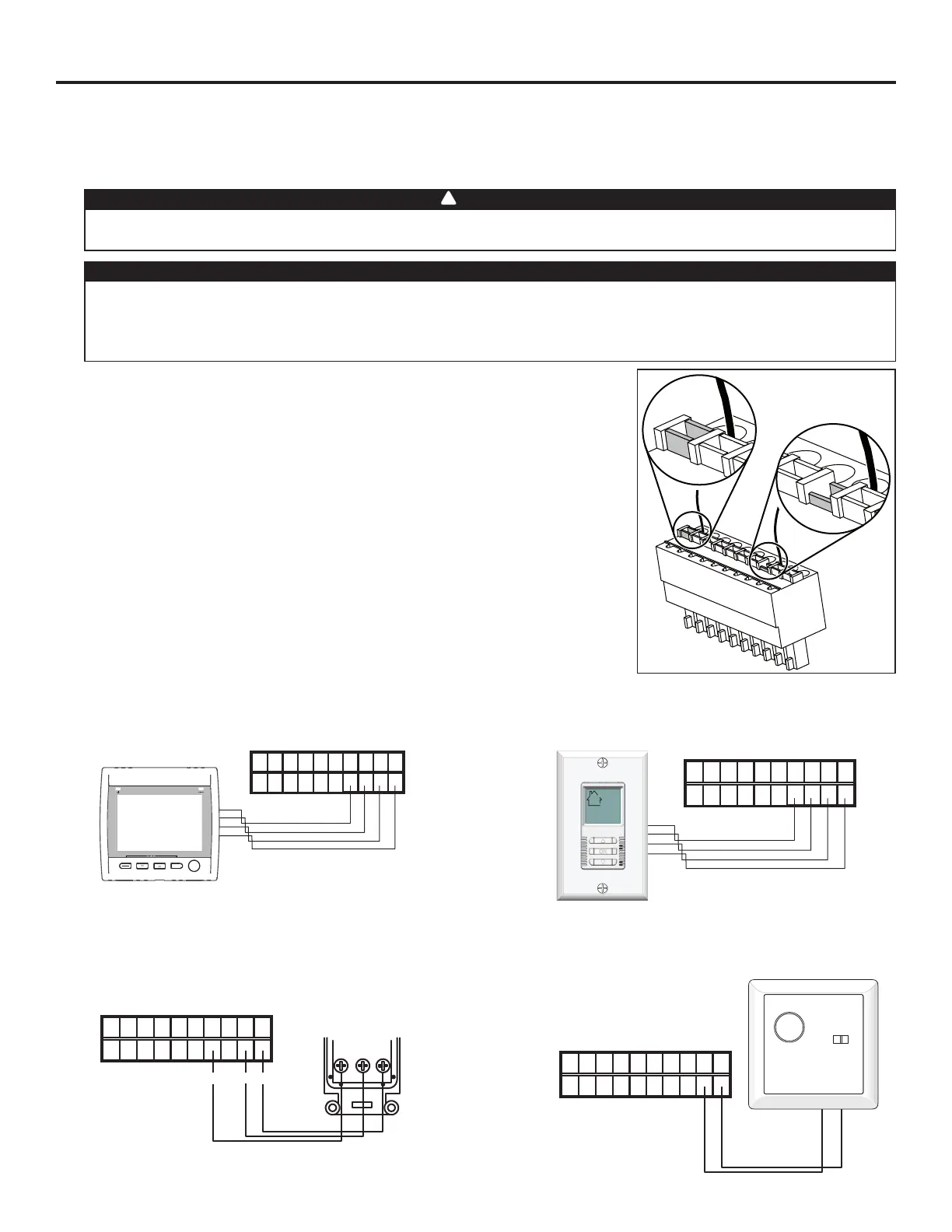

5. CONTROLS (CONT’D)
5.4 ELECTRICAL CONNECTION TO MAIN CONTROL
12
For more convenience, these units can also be controlled using an optional main wall control.
NOTES: 1. The integrated control must be turned OFF to use an optional main control.
2. If an optional auxiliary control is used, if activated, this auxiliary control will override the optional main control.
Always disconnect the unit before making any connections. Failure in disconnecting power could result in
electric shock or damage of the wall control or electronic module inside the unit.
WARNING
!
Never install more than one optional main wall control per unit. Make sure that the wires do not short-circuit
between themselves or by touching any other components on the wall control. Avoid poor wiring connections. To
reduce electrical interference (noise) potential, do not run wall control wiring next to control contactors or near
light dimming circuits, electrical motors, dwelling/building power or lighting wiring, or power distribution panel.
CAUTION
Use the terminal connector included in the installation kit to perform the electrical
connection for main and optional wall controls. Check if all wires are correctly inserted
in their corresponding holes in the terminal block. (A wire is correctly inserted when its
orange receptacle is lower than another one without wire. On picture at right, wire A is
correctly inserted, but wire B is not.)
VE0272
A
B
5.4.3 ELECTRICAL CONNECTION
TO VT4W MAIN WALL CONTROL
NO C NC I OC OL Y R G B
BG
G
B
Y
VE0328A
Y
VT4W
MAIN WALL CONTROL
REAR VIEW
5.4.2 ELECTRICAL CONNECTION
TO VT7W MAIN WALL CONTROL
NO C NC I OC OL Y R G B
VE0250
5.4.1 ELECTRICAL CONNECTION
TO VT8W MAIN WALL CONTROL
NO C NC I OC OL Y R G B
VE0181
SMART
SET
MODE
PREF
5.4.4 ELECTRICAL CONNECTION
TO VT6W MAIN WALL CONTROL
NO C NC I OC OL Y R G B
VE0187
