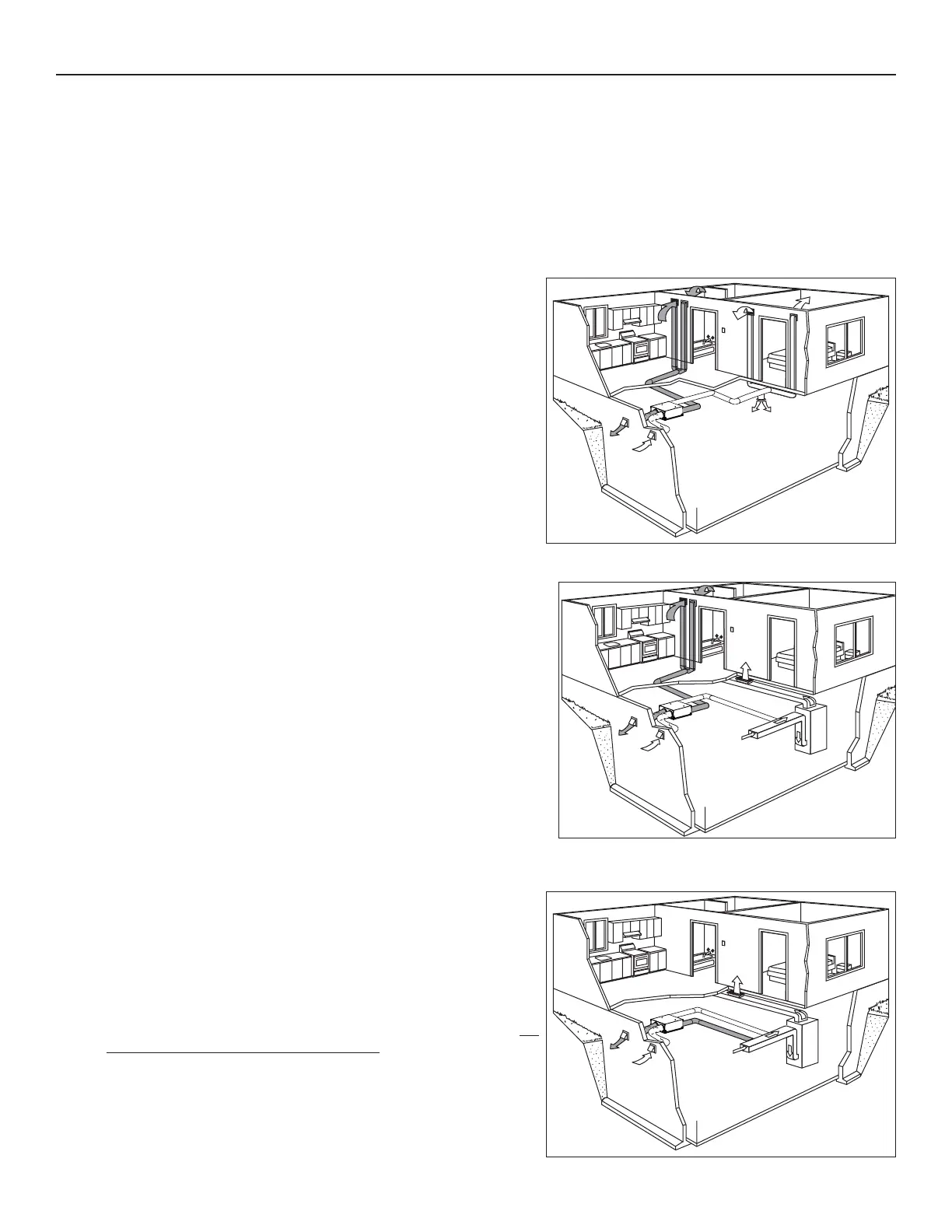

1. TYPICAL INSTALLATIONS
Use the following illustrations as guidelines to help you decide on how the unit will be installed.
All the units should be hung from the joists or ceiling using brackets (included with the unit). If desired, an optional chains and spring kit
(part no. V61239, sold separately) can be used instead of brackets.
If required, bathroom fans and a range hood can be used to exhaust stale air. Also, for homes with more than one level, we recommend
one exhaust register at the highest level.
There are 3 installation methods: Fully ducted, Central Draw Point and Simplified Installation.
NOTE: A standard 3-prong electrical outlet has to be available within 3 feet of the unit.
1.1.1 Fully ducTed sysTem (primarily For Homes WiTH radianT HoT WaTer or elecTric BaseBoard HeaTing)
Stale air coming from the registers located at the highest level of the
house is exhausted to the outdoors. Fresh air from outdoors is filtered
and supplied by the register located in the lowest liveable level.
Homes with more than one level require at least one exhaust register
at the highest level.
See figure at right.
1.1.2 cenTral draW poinT (connecTion To a Forced air sysTem)
Stale air coming from the registers located at the highest level of the
house is exhausted to the outdoors. Fresh air from outdoors is filtered and
supplied to the return (plenum) or the supply duct of the forced air unit.
See figure at right.
For this type of installation, it is not essential that the forced air system
blower runs when the unit is in operation, but we recommend it.
NOTE: Home with multiple forced air systems should have one unit on
each system.
1.1.3 simpliFied insTallaTion (connecTion To a Forced air sysTem)
Stale air is exhausted to the outdoors. Fresh air from outdoors is filtered
and supplied to the return (plenum) or the supply duct of the forced air
unit.
See figure at right.
To avoid cross-contamination and achieve the highest efficiencies, the
forced air system blower must always be ON.
NOTE: Home with multiple forced air systems should have one unit on
each system.
VH0103
VH0106
VH0183
1.1 For House
