INSTALLATION MANUAL
INSTALLATION
11
RECIRCULATION
COVER PLATE
SCREWS
NON-DUCTED INSTALLATION ONLY

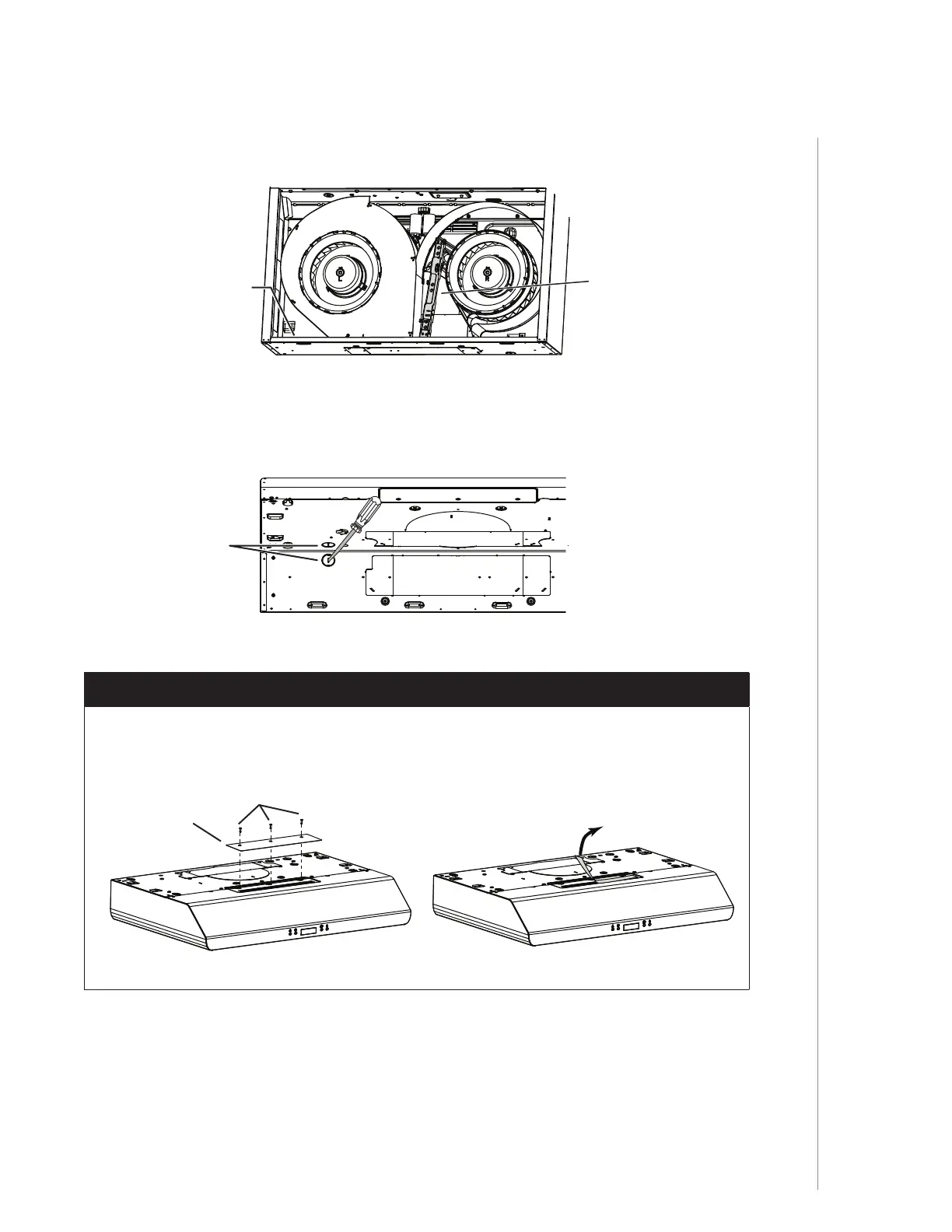

7 ] Remove 3 screws retaining the recirculation cover plate to the hood. Discard this plate with
its screws. Peel off and discard the membrane covering the recirculation grille, ensuring the
openings are totally cleared.
5 ] Remove the parts bag, taped on the inner back of hood, near the left corner. Remove the
EZ1 brackets from inside the hood by cutting off the tie wrap. Discard the tie wrap.
EZ1
BRACKETS
PARTS BAG LOCATION
6 ] Remove Electrical Power Cable Knockout from top (vertical wiring) or back (horizontal wiring)
of hood. For knockout removed from back of hood, install an appropriate strain relief,
1/2” diameter (not included). For knockout removed from top of hood, the strain relief will be
installed later.
ELECTRICAL
POWER CABLE
KNOCKOUT
