Appendix B (cont’d)

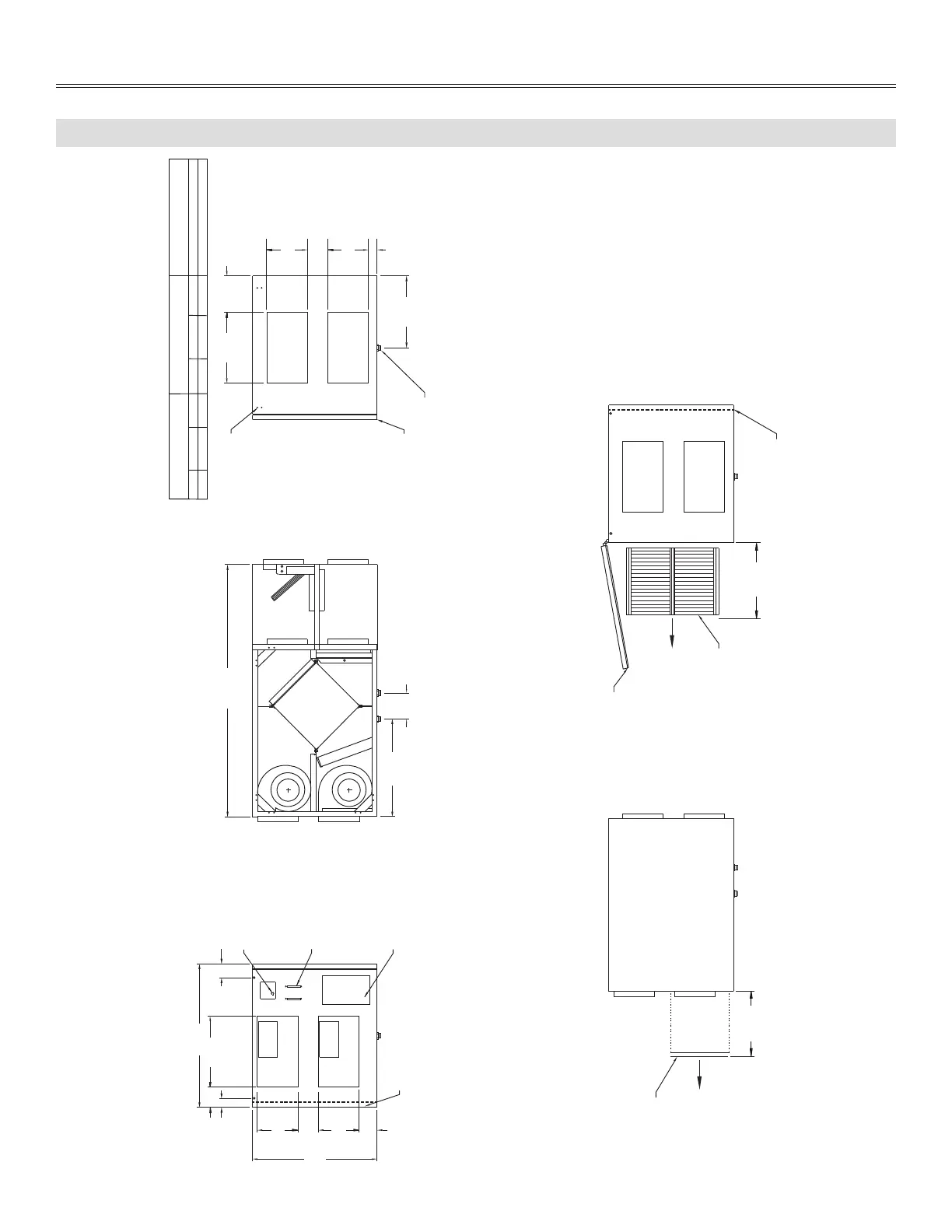

UNIT DIMENSIONS
B-2: B6LC WITH RECIRCULATION MODULE (FACTORY INSTALLED)
28.12"
14.00"
4.00"
1.75"
8.00"
2.75"
19.207"
5.125"
Access Door
Strap Mounting
Location
Drain Fitting
NOTE:
For units with the reversed door option, interior components will appear
as a mirror image of the above diagram.
49.550"
Line Power
Control Box
Dry Contacts
Reverse Door Option
Fresh Air
to Building
Exhaust Air
to Outdoors
8.00"
4.00"
24.50"
3.53"
12.00"
15.00"
Access Door
Core
Reversed Door Option
Control Plate
A minimum of 12.00" clearance from any obstruction
is required for removal of control box.
A minimum of 15.00" clearance from any obstruction is required for removal
of heat recovery cores, fans, etc.
The access door can be removed from cabinet with only 2.00" of clearance.
8.00"
8.00"
14.10"
14.00" 7.10"
Fresh Air
From Outside
Exhaust Air
From Building
4.00"
1.75"
VK0109A
B6LC POLY CORE
with recirculation module
B6LC ALUMINUM CORE
with recirculation module
LB.
197
Kg
90
PTS
TOTAL
LB.
231 105
Kg
TOTAL
PTS
B6LC ERV HM CORE
with recirculation module
PTS
TOTAL
LB.
206 95
Kg
