5. NAVIGATION ON LCD SCREEN
+
-
OK
VD0492
OK button To confirm a selection.
+ button
To increase a value.
To scroll up in a selection.
- button
To decrease a value.
To scroll down in a selection.
VQ0211
VQ0209
VQ021
0
VQ0203
VQ021
2
Indicates current
mode
Indicates
fresh airflow
PRESS ON OK BUTTON TO
CHANGE THE OPERATING MODE.
USE + BUTTON OR - BUTTON
TO SELECT THE DESIRED
OPERATING MODE.
+
-
PRESS ON OK BUTTON TO
CONFIRM THE OPERATING
MODE SELECTION.
VQ0205
VQ0207
VQ020
1
Indicates
stale airflow
+
+
-
-
+
-
+
-

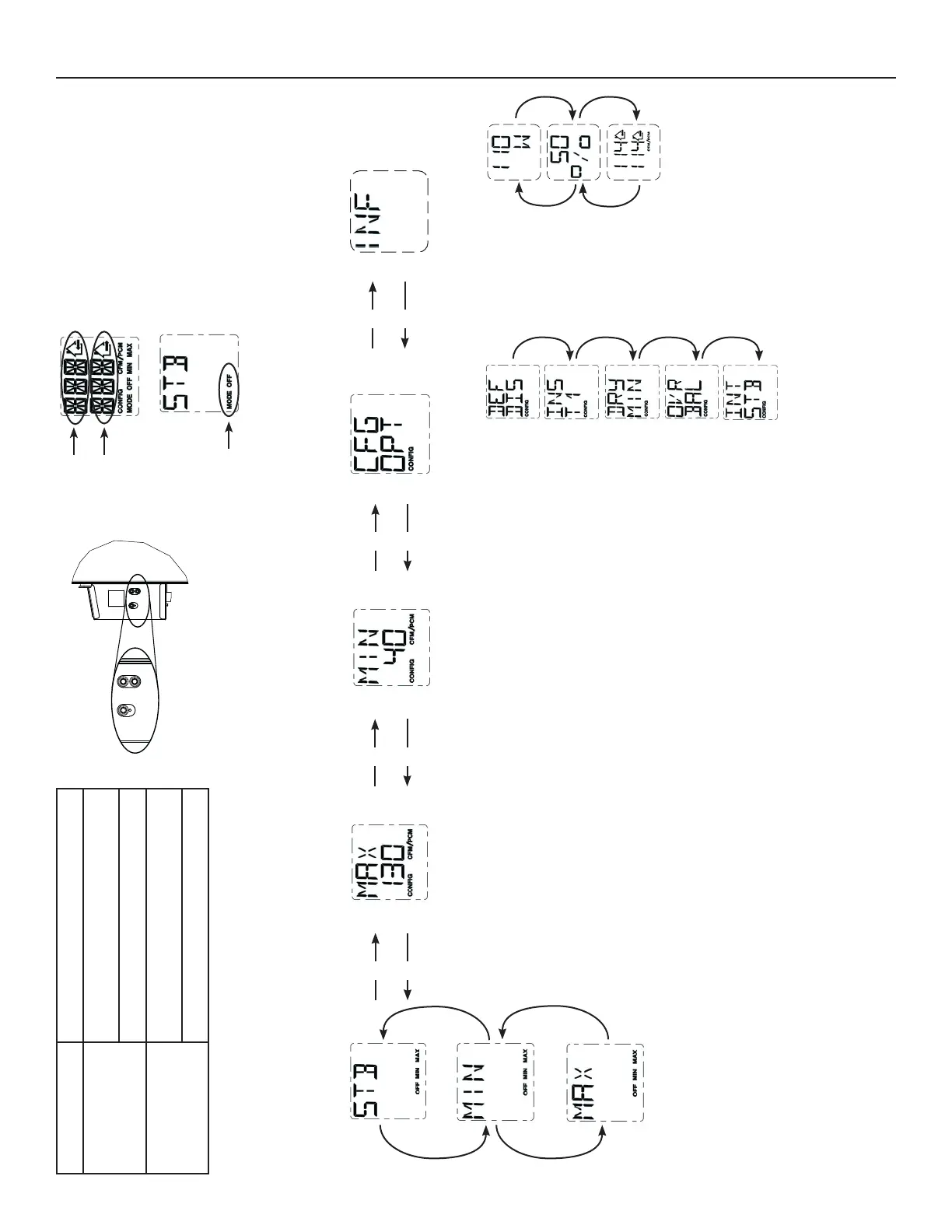

PRESS ON + BUTTON OR - BUTTON TO MODIFY MAX CFM, MIN CFM OR OPTIONS CONFIGURATION.
PRESS ON OK BUTTON DURING 4
SECONDS TO MODIFY MAX CFM
CONFIGURATION.
MAX CFM DATA WILL FLASH.
USE + BUTTON TO INCREASE
VALUE OR - BUTTON TO
DECREASE VALUE.
PRESS ON OK BUTTON TO
CONFIRM VALUE.
PRESS ON OK BUTTON DURING 4
SECONDS TO MODIFY MIN CFM
CONFIGURATION.
MIN CFM DATA WILL FLASH.
USE + BUTTON TO INCREASE
VALUE OR - BUTTON TO
DECREASE VALUE.
PRESS ON OK BUTTON TO
CONFIRM VALUE.
PRESS ON OK BUTTON DURING 4
SECONDS TO MODIFY OPTIONS
CONFIGURATION.
VQ0197
VQ0202
VQ0199
VQ0198
VQ0200
FOR EACH
OPTION
CONFIGURATION,
USE + BUTTON
TO SCROLL UP
IN OPTIONS
AVAILABLE OR
- BUTTON TO
SCROLL DOWN
IN OPTIONS
AVAILABLE.
ONCE OPTION
SELECTION IS
DONE, PRESS
OK BUTTON
TO CONFIRM
SELECTION. THE
NEXT OPTION
CONFIGURATION
WILL THEN
DISPLAY.
VQ0213
+
-
PRESS ON OK BUTTON DURING
4 SECONDS TO ACCESS
COMPLEMENTARY INFORMATION.
VQ0214
VQ0215
VQ0216
+
+
-
-
DISPLAYS ELECTRICAL
POWER CONSUMPTION.
DISPLAYS UNIT
% RUNNING
TIME (PER HOUR)
FOR SELECTED
OPERATING MODE.
DISPLAYS UNIT
AIRFLOWS.
PRESS ON OK BUTTON TO
EXIT COMPLEMENTARY
INFORMATION.
NOTE : According to unit model and configuration, some menus may not be available.
In the example above, the unit provides
114 CFM with a power consumption of
110 W during 50% of the hour. The net
airflow is 57 CFM (50% X 114), the net
power consumption is about 55 W
(50% X 110).
