INSTALLATION MANUAL
INSTALLATION
12

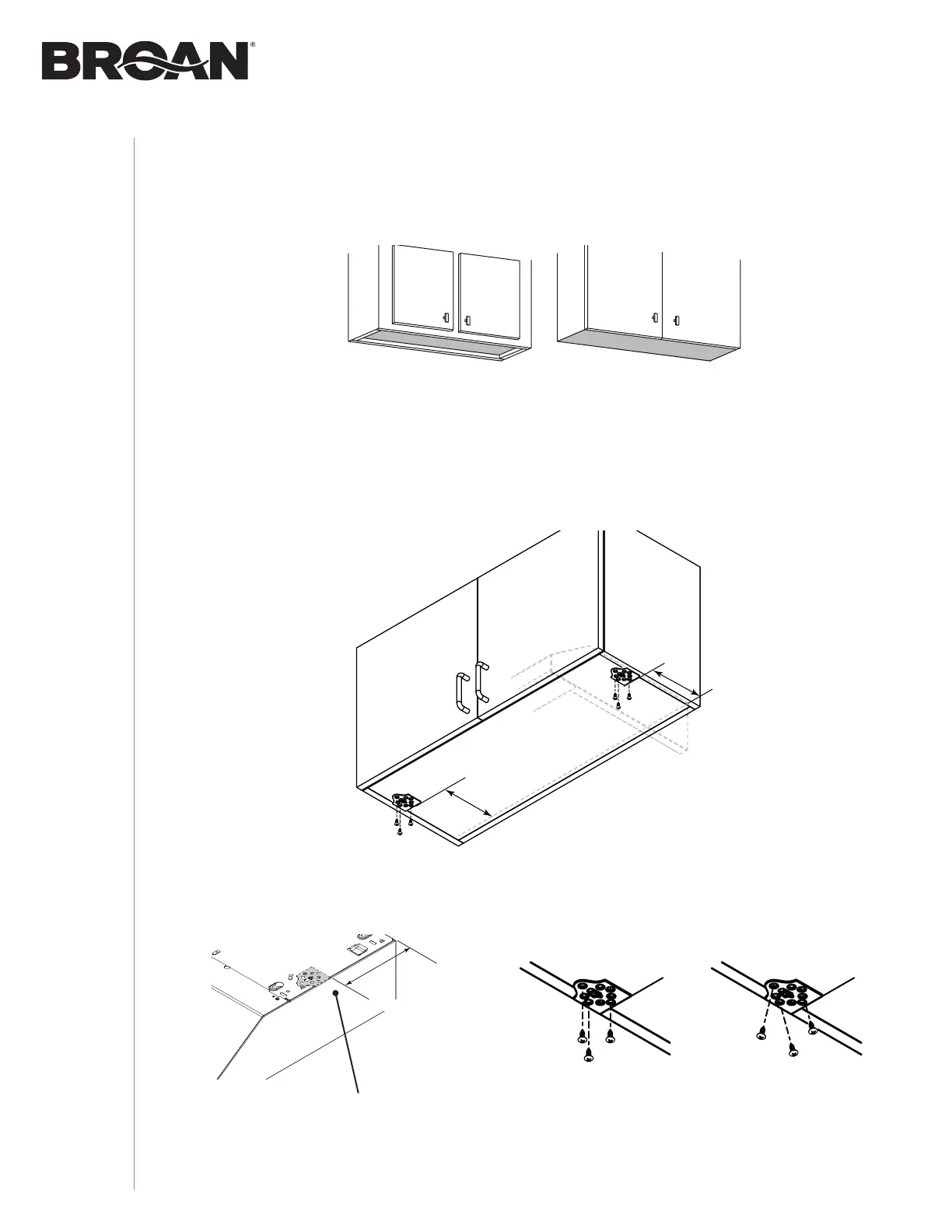

Prepare the Hood Location
NOTE: Before starting installation, read all the steps of these instructions.
Use the illustration below to identify your kitchen cabinet type.
EZ1 one-person installation system
This manual covers 2 kinds of installation: the standard (without EZ1 brackets) and the EZ1
one-person installation system (using included brackets). Please note that the EZ1 one-person
installation system is not available for the CLSC2 Series. For the standard installation, go to
page 14.
HH0248
FRAMED CABINET FRAMELESS CABINET
The EZ1 installation system consists of 2 brackets (included in parts bag). Use these brackets to
TEMPORARILY hang the hood to the cabinet during its installation.
A = 7" (± 1/16")
A
A
7" (± 1/16")
Back of hood/Wall
Arrière de la hott
e/Mur
Outer side of the bracket flush with hood side.
