20

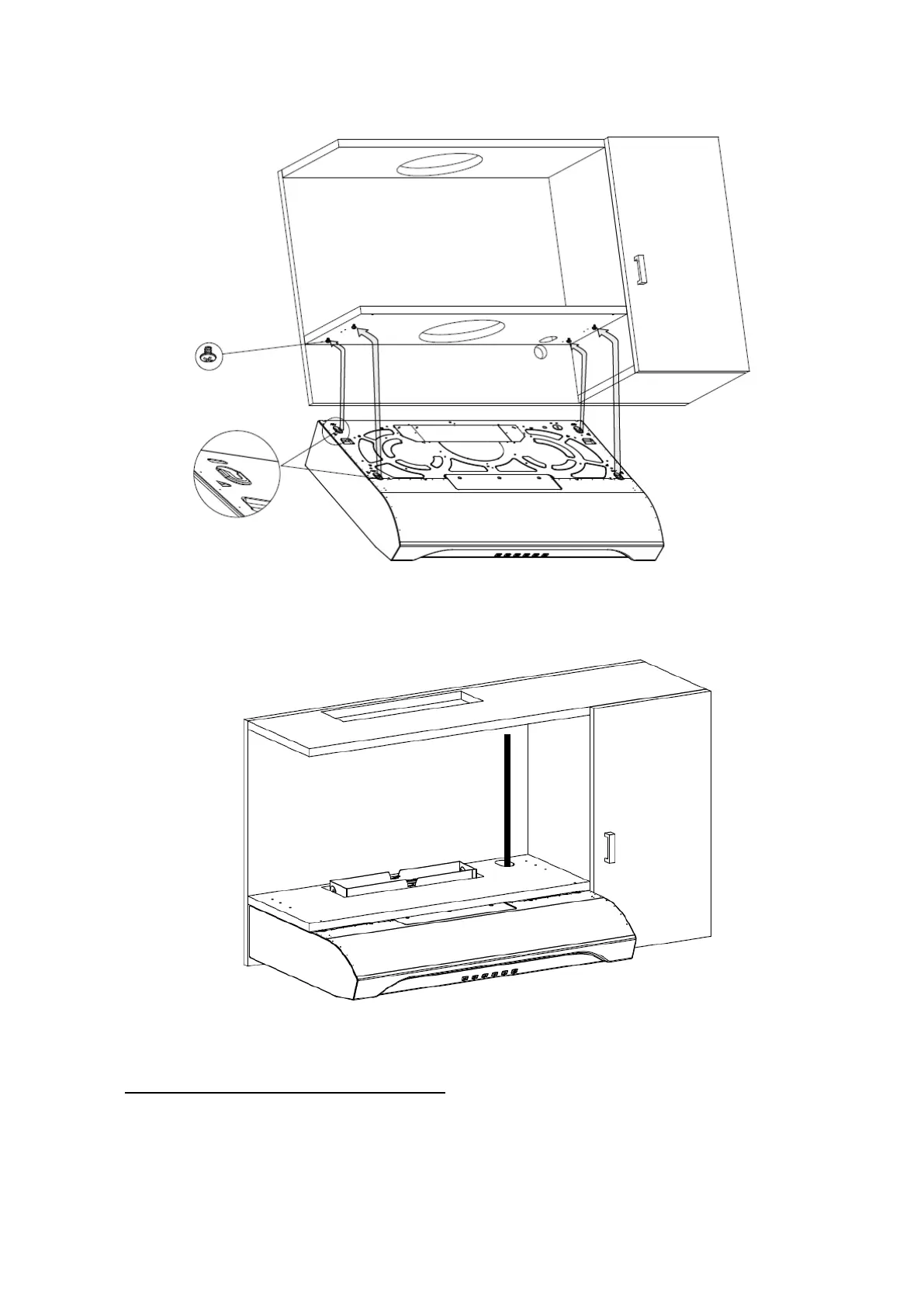

3. Lift the hood. Insert the 4 holes onto the screws. Slide the hood in place.
4. While holding the hood, run the house power cable into the hood through the strain
relief previously installed.
5. Then tighten the other 4 pcs ST 3/16” x 11/16” screws that are installed at step 2.
5. FOR DUCTED INSTALLATION ONLY
Connect the ductwork to the hood and use metal foil duct tape to make joints secure and
airtight. Make sure the damper assembly (or round duct plate) enters the ductwork and
that the damper opens and closes freely.
