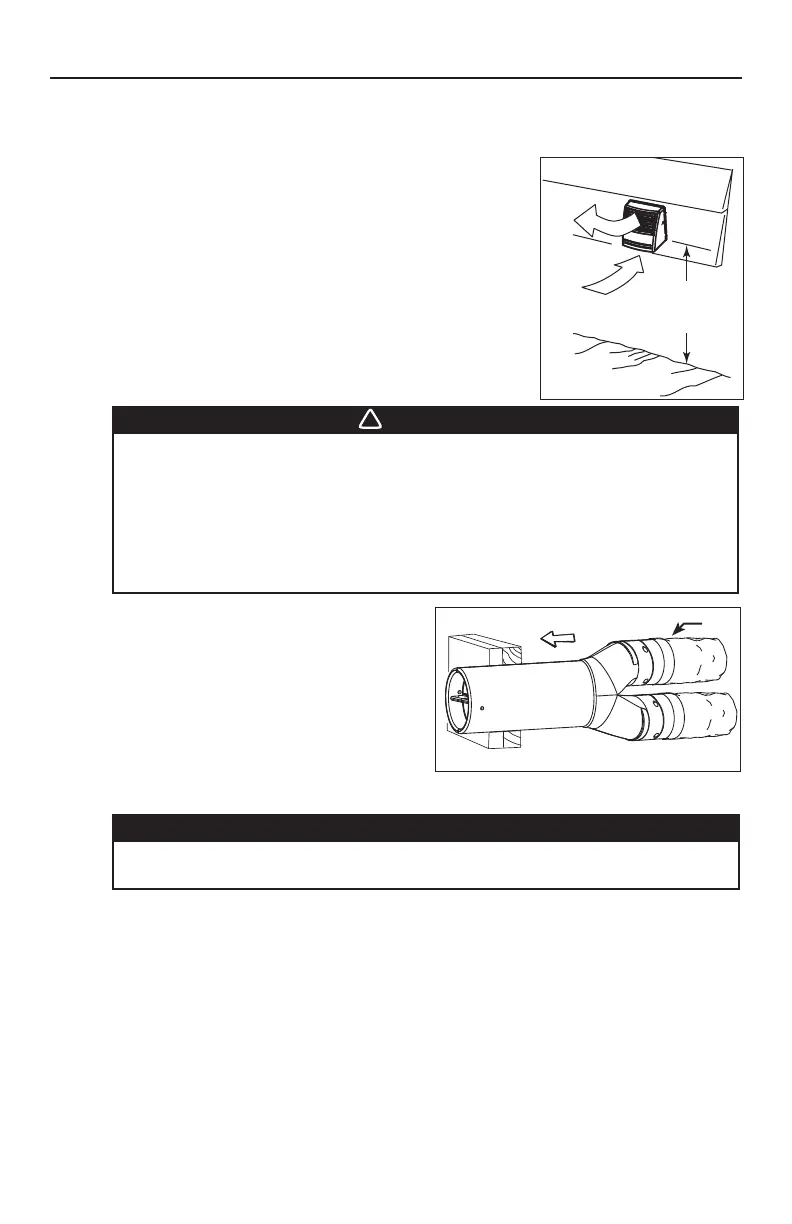

3. INSTALL THE UNIT (CONT’D)
3.7 EXTERIOR OPENING(S) INSTALLATION (CONT’D)
CAUTION
The Tandem transition must be inserted in such way that the exhaust air
to outdoors duct will be located on the top.
1. Using a jig saw, cut a 6’’ diameter
hole in the exterior wall and insert
the Tandem transition through this
hole.
1) EXHAUST AIR TO OUTDOORS DUCT
3.7.1 TANDEM TRANSITION WITH DUAL EXTERIOR HOOD (CONT’D)
VD0083A
18”
(457 mm)
The dual exterior hood must be installed at a minimum
distance of 18 inches (457 mm) from the ground.
See illustration at right.
WARNING
!
Make sure this hood is at least 6 feet (1.8 m) away (or more, as per
applicable building codes or standards) from sources of contamination
such as:
• High efficiency furnace vent
• Any exhaust from a combustion source
• Gas meter exhaust, gas barbecue-grill
• Garbage bin
VD0084
1
