1 Hot shoe connection (for the use as a
camera light)
2 LED panel
3 Battery socket (adding suitable batteries
1
for mobile use) (optional)
4 LED display
5 Control selection button (turning on/off
DMX control)
6 Brightness adjustment knob (stepless
brightness adjustment)
7 Channel selection rotary knob (DMX chan-
nel selection)
8 Power supply socket
9 ON/OFF toggle switch (switch on/off the
device)
10 Spigot tripod connection
11 Locking knob (Spigot tripod connection) 12 Modular socket for DMX connection
13 DOWN button (descrease value) 14 Colour temperature adjustment knob
(stepless colour temperature adjustment)
15 UP button (increase value) 16 Locking knob (U-mount)
17 Vents 18 DC power adapter with 2-pole plug
19 C13 power cable with Euro-plug
1
NP-F750/970 not included
Scope of delivery:
LED light (A), U-mount with tripod connection (B), power adapter (C), power cable (D)
6 Parts overview and scope of delivery BR-S60B
17
15
13
16
5
14
10
18
1
7
9
12
2
11
19
20
4
3
6
8
B
A
C
D

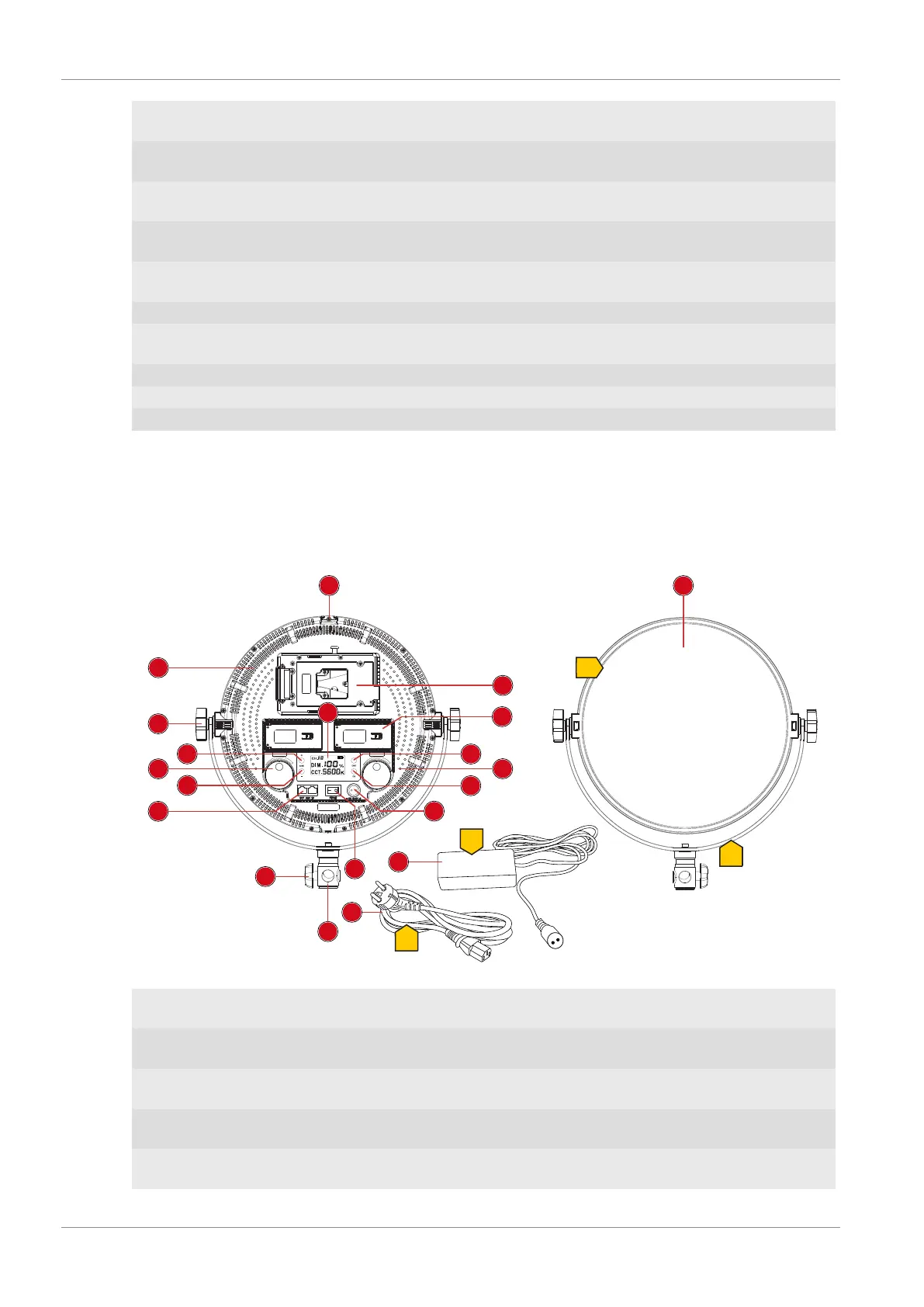

Illustration2: All parts of the LED light, model BR-S60B
1 Hot shoe connection (for the use as a
camera light)
2 LED panel
3 V-lock battery socket (adding suitable bat-
tery
1
for mobile use) (optional)
4 Battery socket (adding suitable batteries
2
for mobile use) (optional)
5 LED display 6 Control selection button (turning on/off
DMX control)
7 Brightness rotary knob (stepless bright-
ness adjustment)
8 Channel selection rotary knob (DMX chan-
nel selection)
9 Power supply socket 10 ON/OFF toggle switch (switch on/off the
device)
